STARTECH .com AV conferencing bridge 3840 x 2160 pixels Ethernet LAN Black (KITBZDOCK)
- Regular price
- $479.95
- Sale price
- $479.95
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com KITBZDOCK AV conferencing bridge 3840 x 2160 pixels Ethernet LAN Black
Brand:StarTech.com
Product name:Conference Room Docking Station - Universal Laptop Dock - 4K HDMI, 60W Power Delivery, USB Hub, GbE, Audio - In-Table Connectivity Box For Huddle/Boardroom Collaboration Space
Product code:KITBZDOCK
EAN/UPC:
0065030891219
0065030891219, 065030891219
- "CONFERENCE TABLE BOX UNIVERSAL DOCKING: Setup an in-desk or in-table docking station with USB-C or USB-A host connectivity to connect to your boardroom or workstation peripherals; Easy one-cable docking with your conference room hardware
- VIDEO FLEXIBILITY: Auto switching between USB-C or USB-A host laptops; Features USB-C (DP Alt-mode/DisplayLink), USB-A (DisplayLink), or HDMI pass through video ports (HDMI mode for AV connectivity only); Max resolution 4K UHD (3840x2160 30Hz)

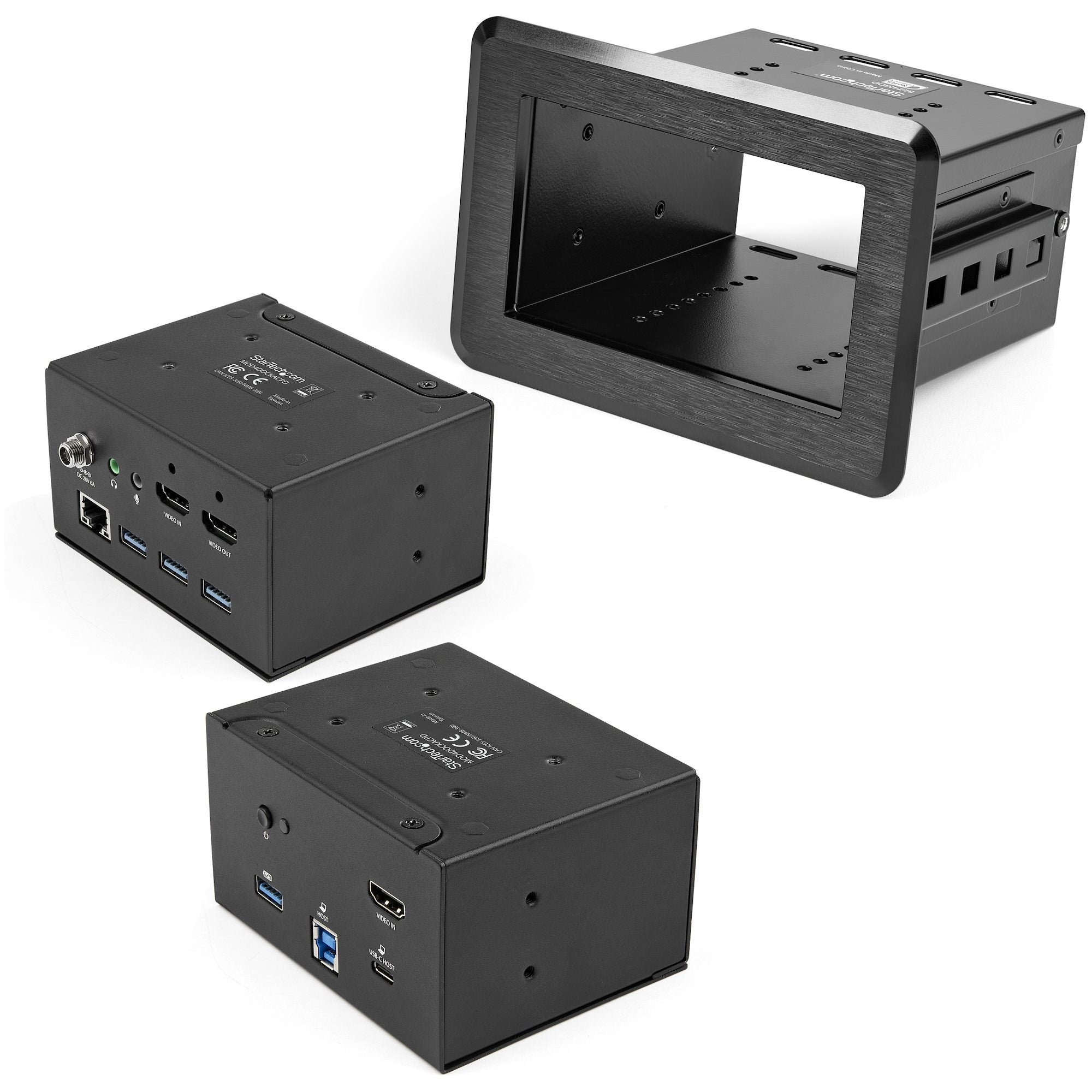

- DOCKING CONNECTIVITY PORTS: Integrated USB 3.0 5Gbps hub with 4x USB-A ports (incl. 1x BC1.2 fast charge port) / USB-C Power Delivery up to 60W to charge your laptop / Gigabit Ethernet / 3.5mm mic input and 3.5mm stereo audio output
- AUDIO OUTPUT: Meeting room multimedia connection box supports up to 7.1 CH audio with USB-C docking or HDMI pass through or up to 5.1 CH audio when used with USB-A docking (DisplayLink)
- COMPATIBILITY: This conference room connectivity box/insert works w/ conferencing/collaboration apps like MS Teams/Zoom/others; Works w/ USB-A, USB-C & Thunderbolt 3 laptops; Works w/ Windows (7+)/macOS (v10.8+)/Linux (v4.15+)/iPadOS/ChromeOS (v55+)

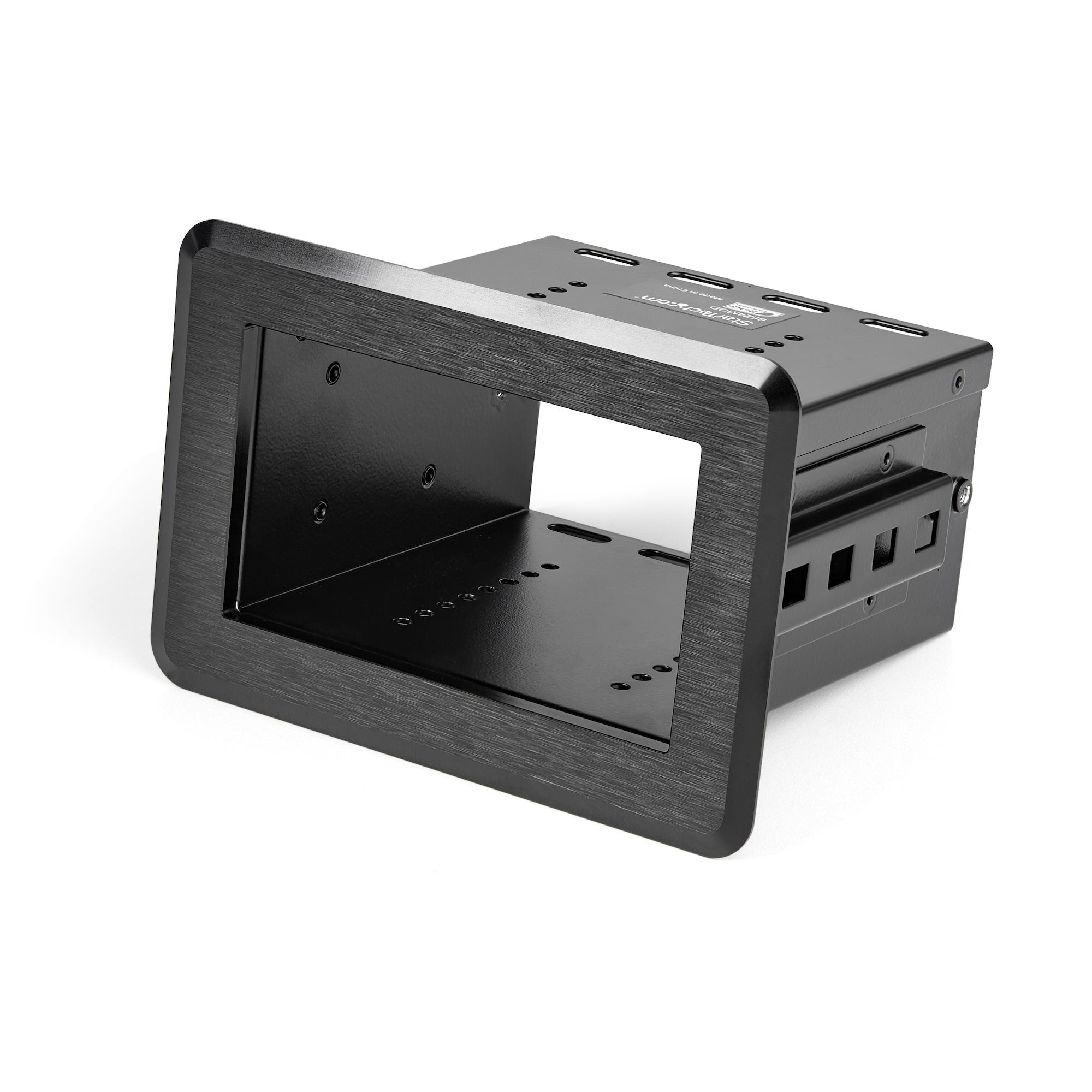

- FLEXIBLE INSTALLATION OPTIONS: Incl. manual, cut-out template, and all mounting hardware / bracket for in table or under the table installation/ designed to work with range of variable depth tabletop thicknesses /cable management / Black aluminum finish"
Description
Conference Room Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power Delivery
Add docking and video conferencing capabilities to a boardroom, classroom or huddle space. This conference table connectivity box bundle lets you:
• Access your room's display and collaboration peripherals with a single connection
• Charge mobile devices using the USB-A charge port
• Power a supported USB-C laptop with USB Power Delivery
Dock Your Laptop
During meetings, you may need to set up video conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.
Connect a USB-C or USB-A laptop to the module and access your room's peripherals, webcams, speakers, mics, network and HDMI display. This conference table AV box and docking station module lets you easily connect your laptop with each video conferencing device in your boardroom. You can collaborate with others in the room and around the globe.

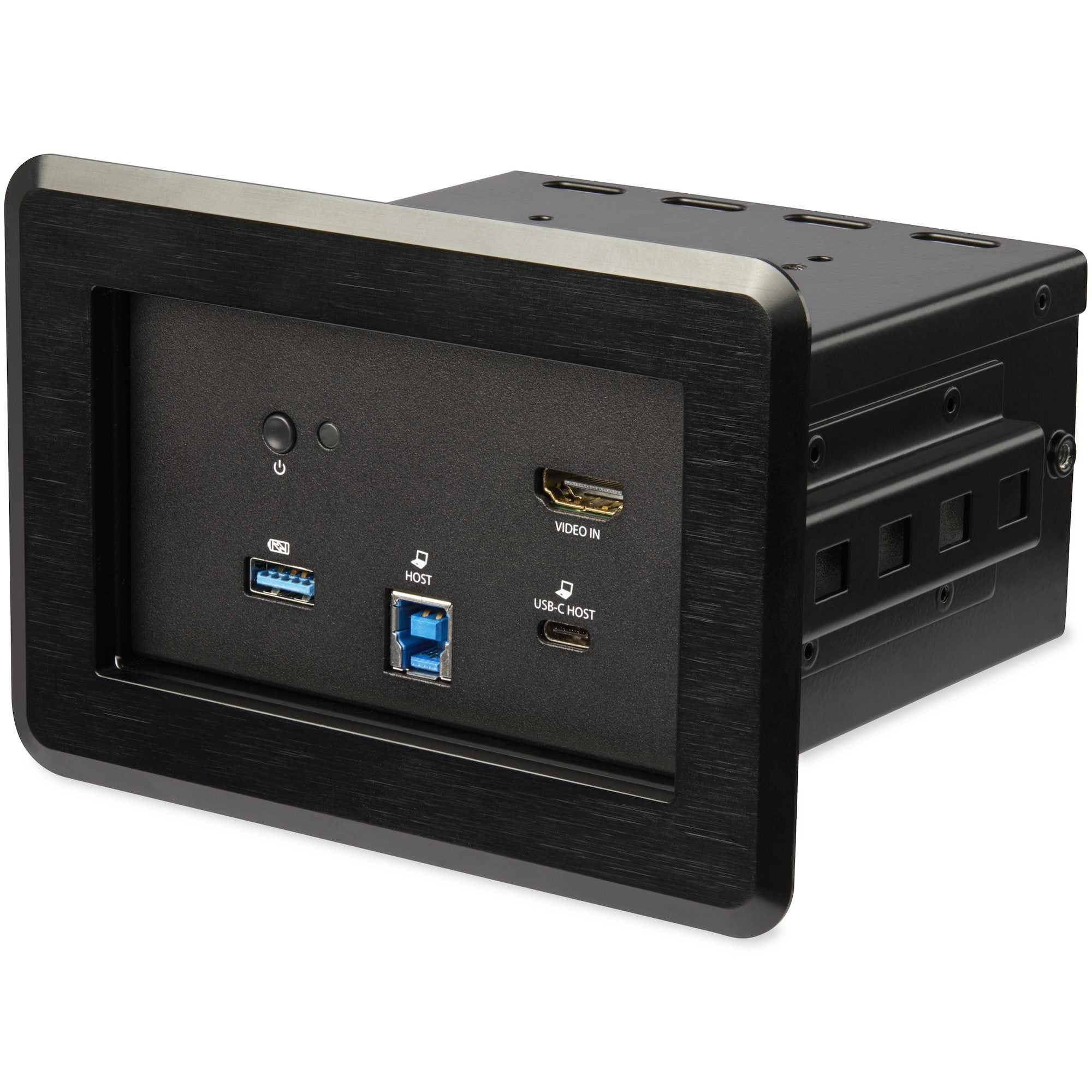

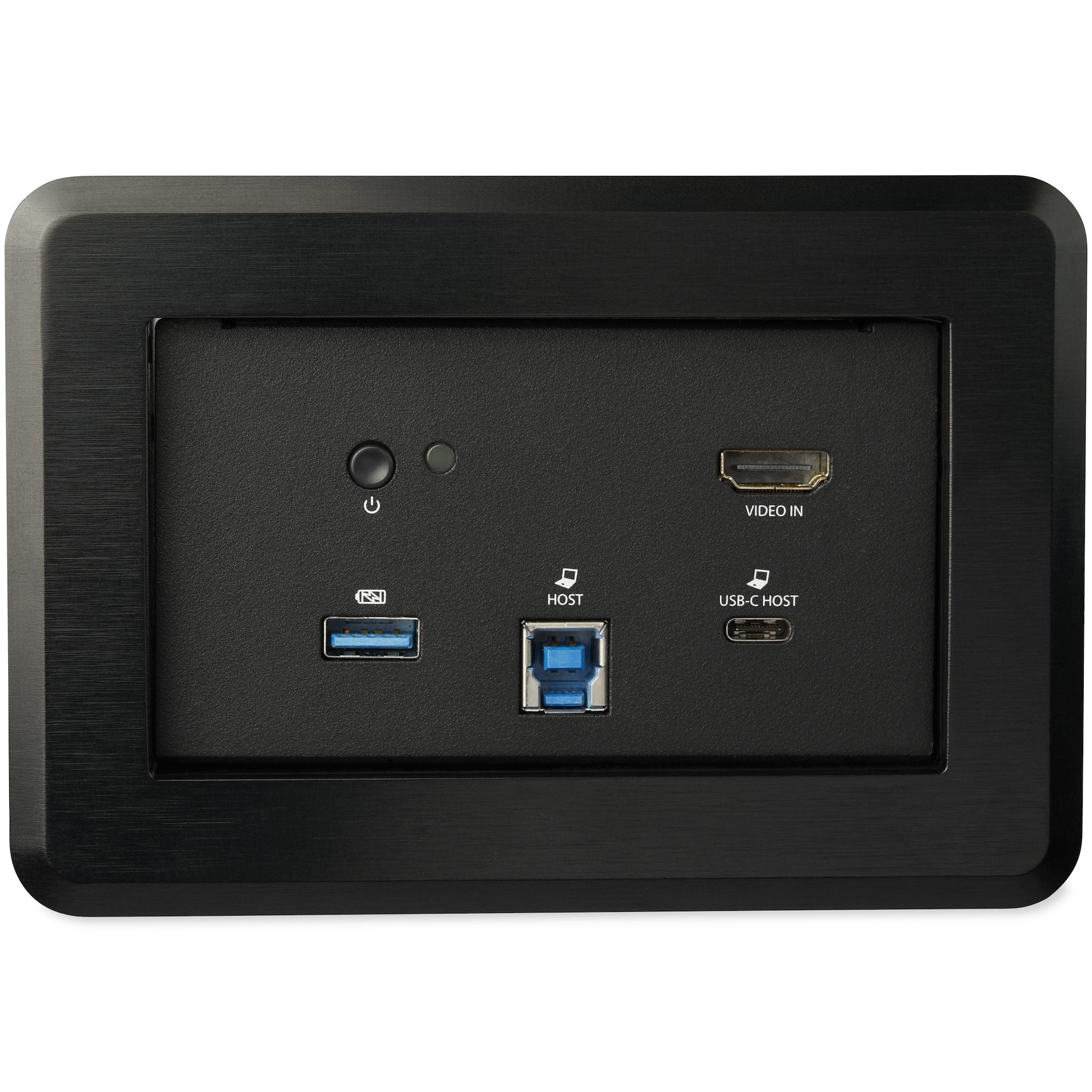

For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.
Easy, Stylish and Clean Installation
Design a practical and stylish solution that impresses your visitors and facilitates their needs. The in-table connectivity box is easy to install in a conference room table, desk or lectern, and features a black aluminum finish that complements your table and your peripherals.
KITBZDOCK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Add docking and video conferencing capabilities to a boardroom, classroom or huddle space. This conference table connectivity box bundle lets you:
• Access your room's display and collaboration peripherals with a single connection
• Charge mobile devices using the USB-A charge port
• Power a supported USB-C laptop with USB Power Delivery
Dock Your Laptop
During meetings, you may need to set up video conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.
Connect a USB-C or USB-A laptop to the module and access your room's peripherals, webcams, speakers, mics, network and HDMI display. This conference table AV box and docking station module lets you easily connect your laptop with each video conferencing device in your boardroom. You can collaborate with others in the room and around the globe.
For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.
Easy, Stylish and Clean Installation
Design a practical and stylish solution that impresses your visitors and facilitates their needs. The in-table connectivity box is easy to install in a conference room table, desk or lectern, and features a black aluminum finish that complements your table and your peripherals.
KITBZDOCK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Video
Specs
Video
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Maximum refresh rate
30 Hz
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Data transfer rate (max)
5 Gbit/s
Features
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Aluminium
LED indicators
Power
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153
Operating systems supported
Windows 7, 8, 8.1, 10
macOS 10.9 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0 Ventura
Chrome OS v55+
Ports & interfaces
HDMI input ports quantity
2
HDMI output ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Audio input
The type of audio input that the device requires, and the connection needed.
1
Audio output
The type of audio output that the device produces, and the connector(s).
1
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
UASP support
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
Input current
2 A
AC adapter input voltage
100 - 240 V
AC adapter output voltage
20 V
AC adapter output current
6 A
Power plug type
Type N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 65 °C
Operating relative humidity (H-H)
20 - 80%
Technical details
Compliance certificates
CE, RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
145 mm
Depth
The distance from the front to the back of something.
100 mm
Height
The measurement of the product from head to foot or from base to top.
115 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.1 kg
Package width
The distance from one side of the packaging to the other.
190 mm
Package depth
The distance from the front to the back of the packaging.
192 mm
Package height
The distance from the top to the bottom of the packaging.
134 mm
Package weight
Weight of the packaged product.
3 kg
Logistics data
Master (outer) case width
190 mm
Master (outer) case length
192 mm
Master (outer) case height
134 mm
Products per master (outer) case
1 pc(s)
