STARTECH .com drive bay panel 13.3 cm (5.25") Storage drive tray Black (4U2525-SAS-BACKPLANE)
- Regular price
- $477.95
- Sale price
- $477.95
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com 4U2525-SAS-BACKPLANE drive bay panel 13.3 cm (5.25") Storage drive tray Black
Brand:StarTech.com
Product name:4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays - Backplane with Fans
Product code:4U2525-SAS-BACKPLANE
EAN/UPC:
0065030900133
0065030900133, 065030900133
- 4-BAY BACKPLANE: Add four U.2 (SFF-8639) NVMe drive bays to computer; Supports 7mm to 15mm 2.5" NVMe SSDs; Up to 32Gbps per drive with individual Mini-SAS SFF-8643 ports; Fits into a 5.25" bay; Hot swapping requires PCIe hot swap support from the host

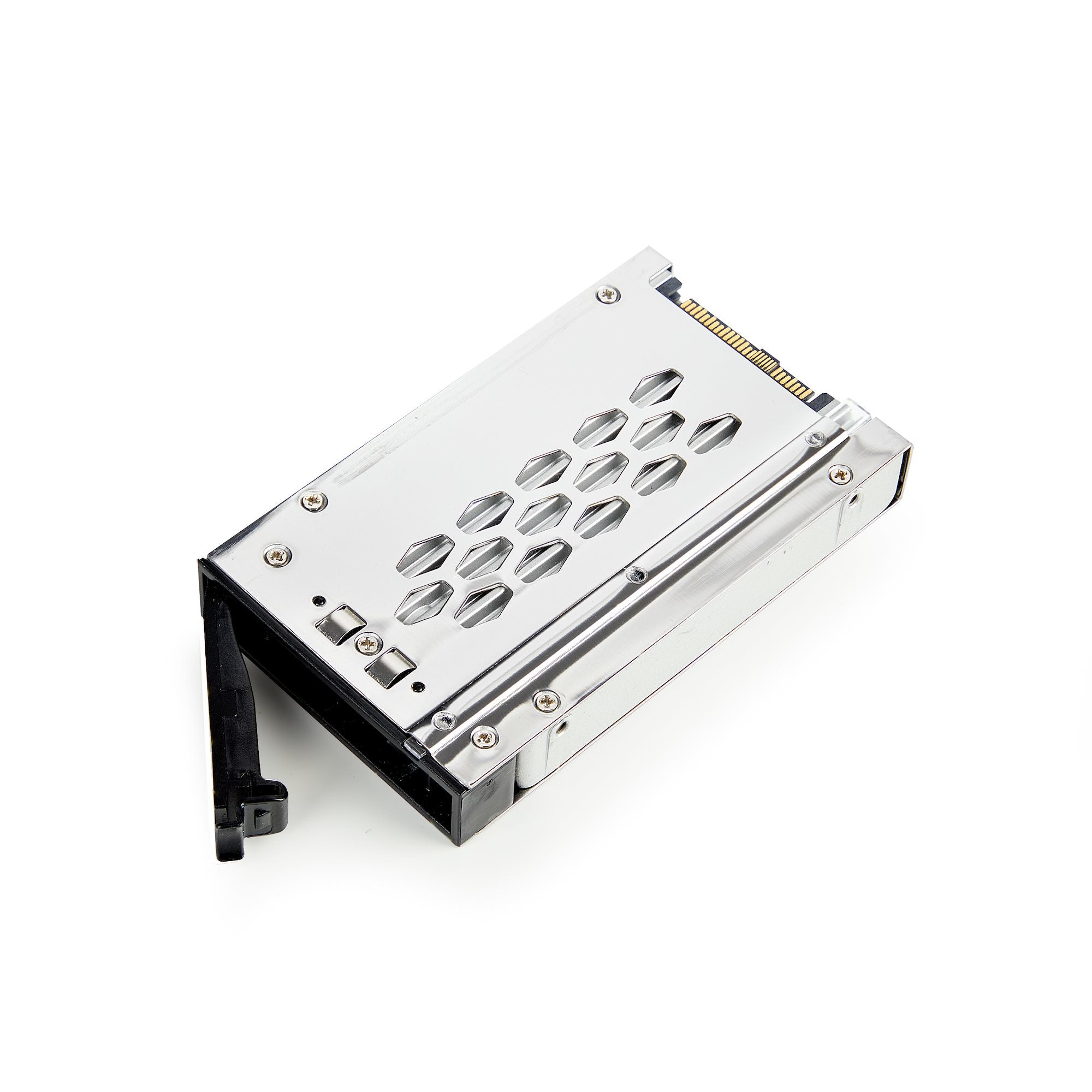

- SECURE DESIGN: Lockable drive trays/caddies (2x keys incl.) keep the drives safe while adding an extra layer of security, helping to prevent accidental hot-swaps; Aluminum body aids heat dissipation; Extra drive trays sold separately (SATSASTRX25)

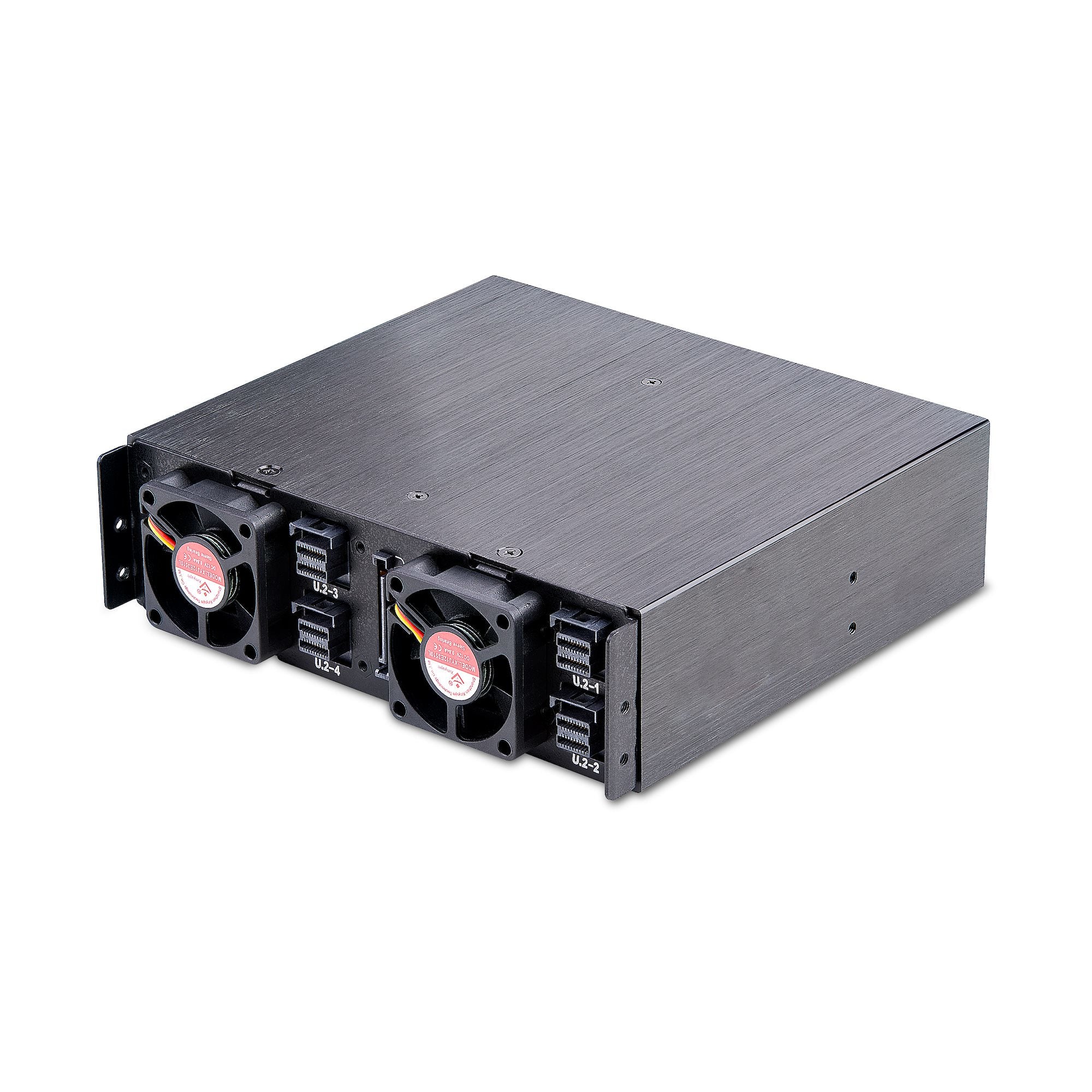

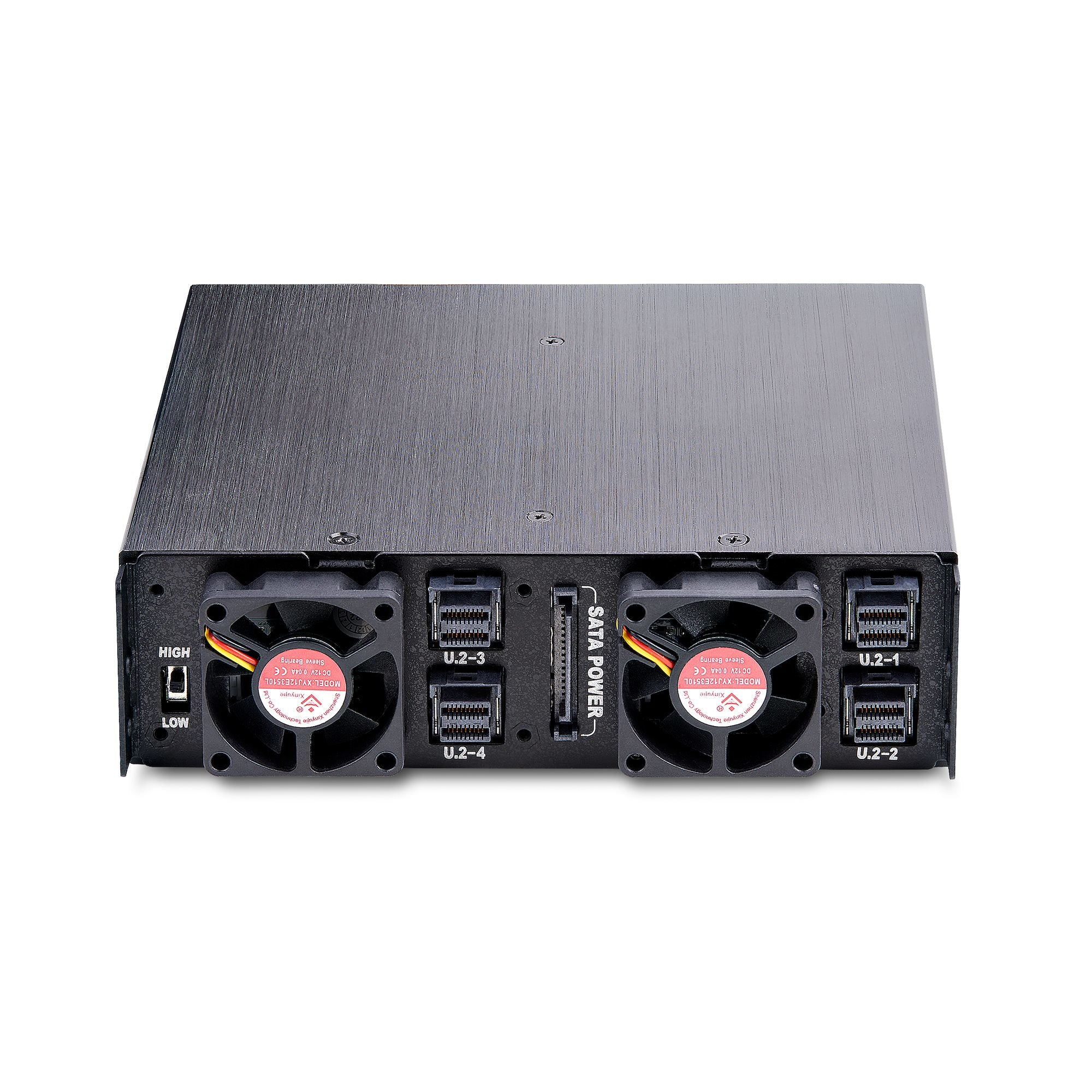

- WELL VENTILATED: Quad U.2 mobile rack with four perforated drive trays/caddies, two rear blower fans and front air vents keep drives cool for optimal performance; Rear fan switch enables the adjustment of drive cooling fans between high and low settings
- WIDE COMPATIBILITY: Compatible with storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), and mdraid/mdadm (Linux); Requires no drivers or software and works with any operating system; Supports U.2 NVMe Drives only

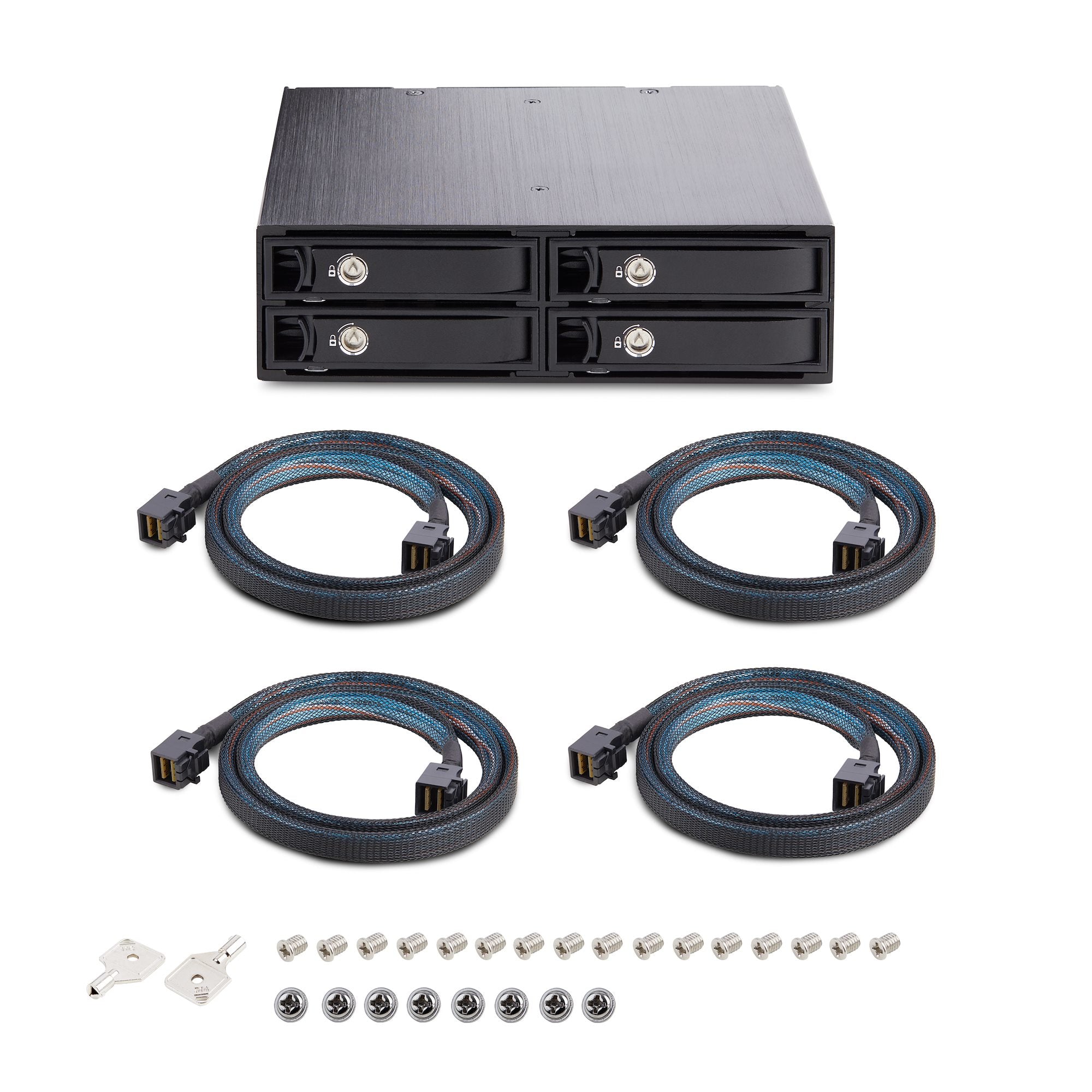

- HASSLE-FREE SETUP: Includes 4x 2ft (61cm) Mini-SAS HD cables and uses a single SATA Power connector from the desktop/server power supply for a rapid installation; Drive and backplane mounting screws included; LEDs for individual drive status and activity
Description

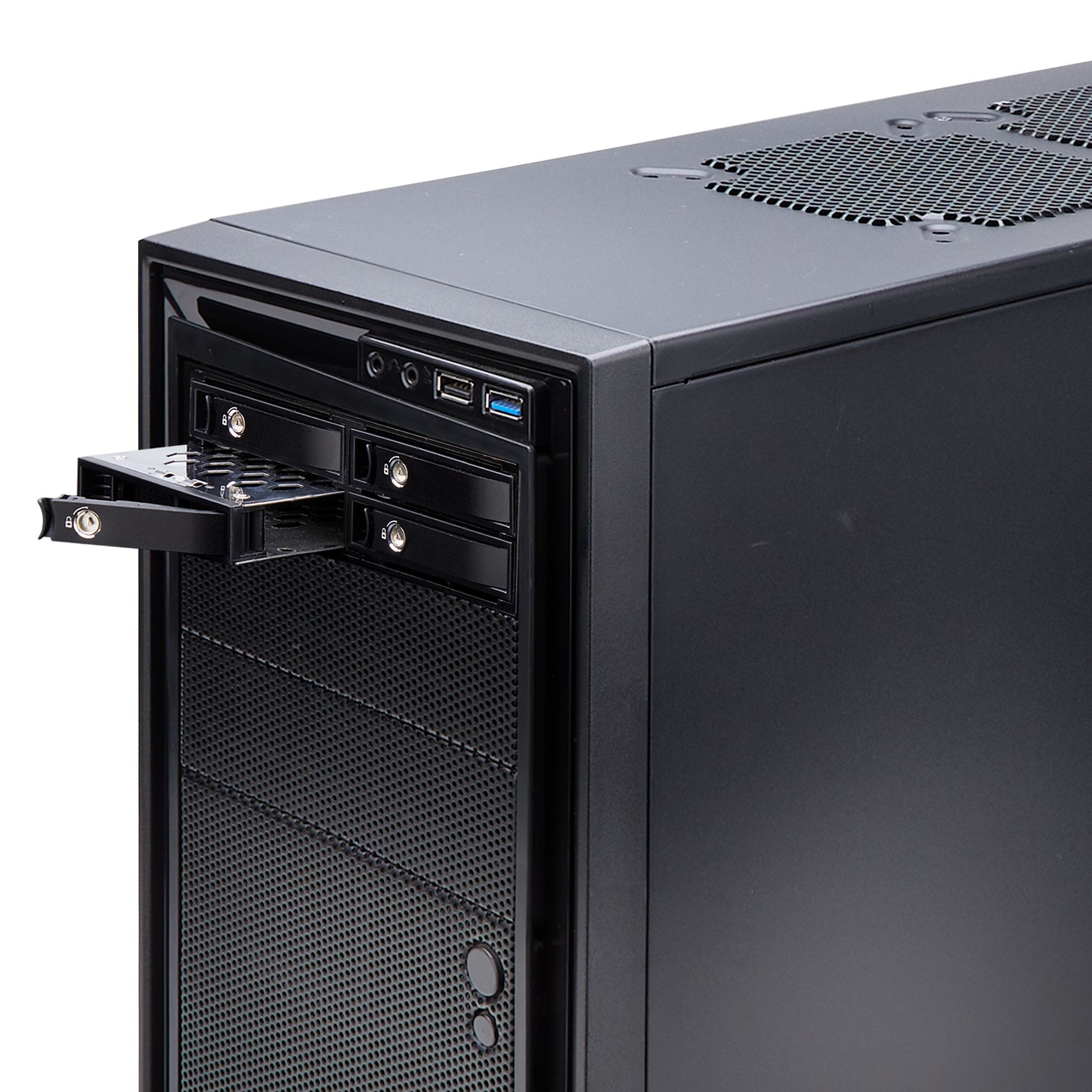

Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive trays

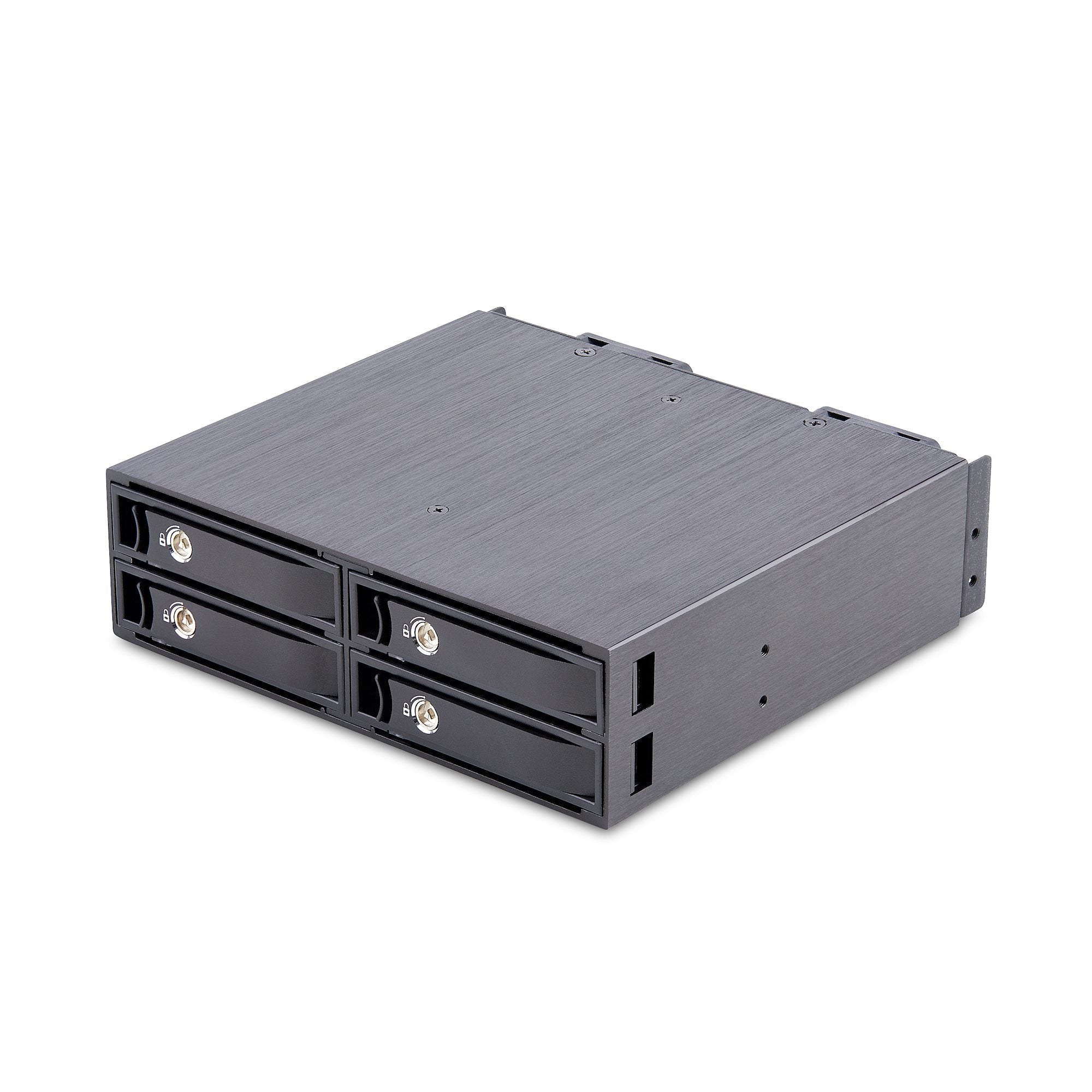

This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design
Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.
*Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented
The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup
This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
The StarTech.com Advantage
This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design
Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.
*Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented
The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup
This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
The StarTech.com Advantage
Specs
Features
Size (imperial)
Physical dimension.
13.3 cm (5.25")
Type
Characteristics of the device.
Storage drive tray
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of SSDs supported
4
SSD form factor
The size of the solid-state drive, given in inches
U.2
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Number of cycles
500
Supported storage drive heights
7,9.5,12.5,15 mm
Hot-swap
Airflow (imperial)
2.47 cfm
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
21.3 dB
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
3.5 cm
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
32 Gbit/s
LED indicators
Yes
Key lock
Bearing type
Sleeve bearing
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
30000 h
Ports & interfaces
Port multiplier
Packaging data
Package width
The distance from one side of the packaging to the other.
212 mm
Package depth
The distance from the front to the back of the packaging.
180 mm
Package height
The distance from the top to the bottom of the packaging.
133 mm
Package weight
Weight of the packaged product.
1.1 kg
Packaging content
Quantity per pack
1 pc(s)
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Cables included
MiniSAS
Screws included
Number of lock keys included
2 pc(s)
Number of screws
24
Operational conditions
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
0 - 55 °C
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 55 °C
Operating relative humidity (H-H)
5 - 65%
Sustainability
Sustainability compliance
Technical details
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
445 mm
Master (outer) case length
420 mm
Master (outer) case height
200 mm
