STARTECH .com interface cards/adapter Internal (21050-PC-SERIAL-CARD)
- Regular price
- $75.95
- Sale price
- $75.95
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com 21050-PC-SERIAL-CARD interface cards/adapter Internal
Brand:StarTech.com

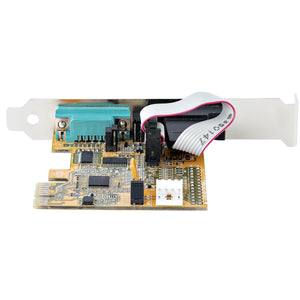

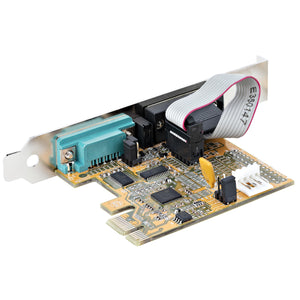

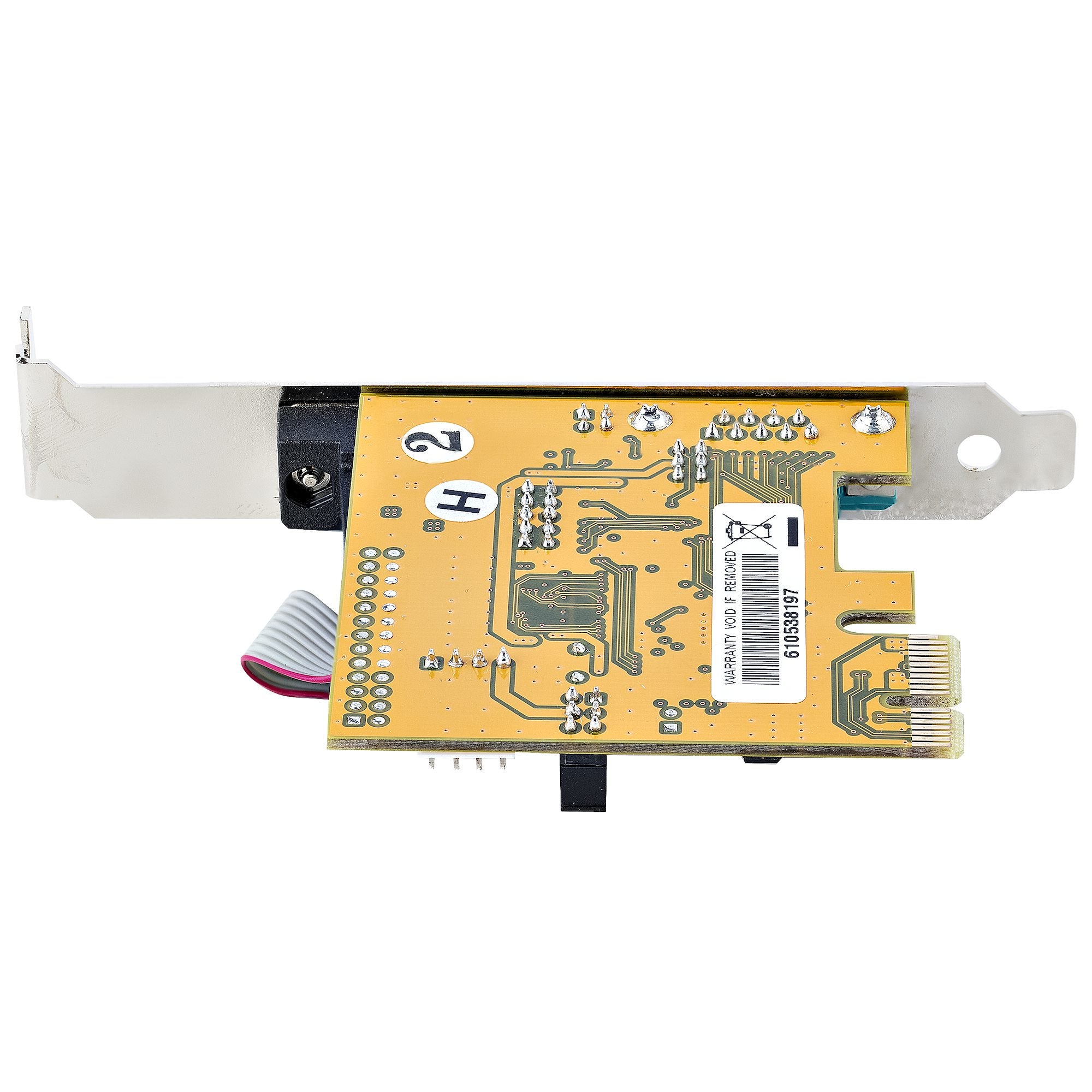

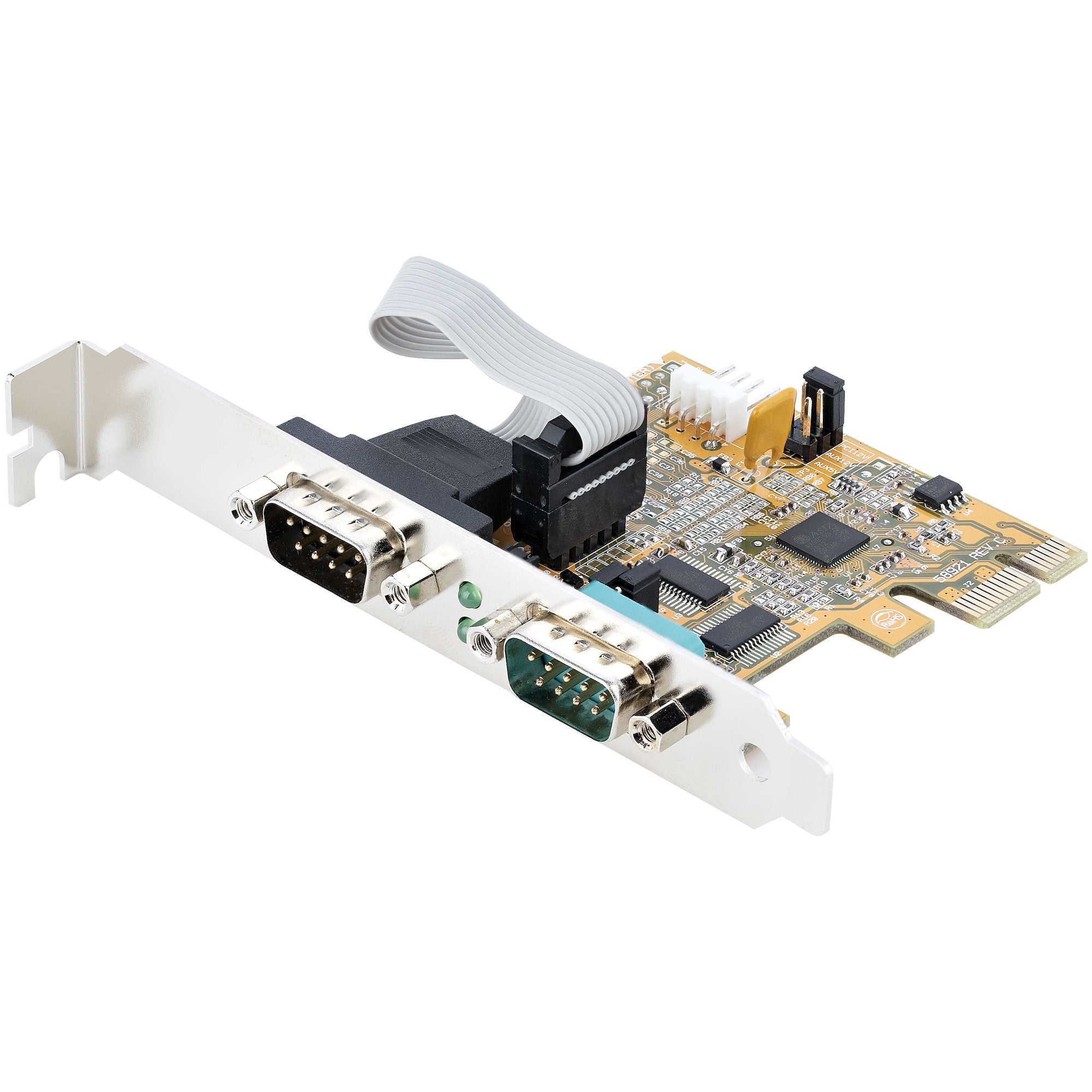

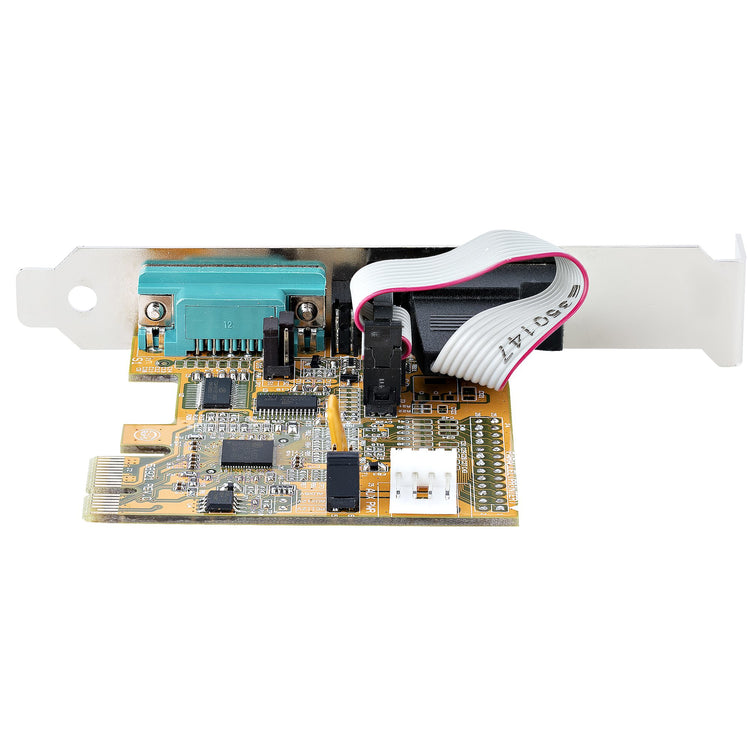

Product name:2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux
Product code:21050-PC-SERIAL-CARD
EAN/UPC:
0065030894760
0065030894760, 065030894760

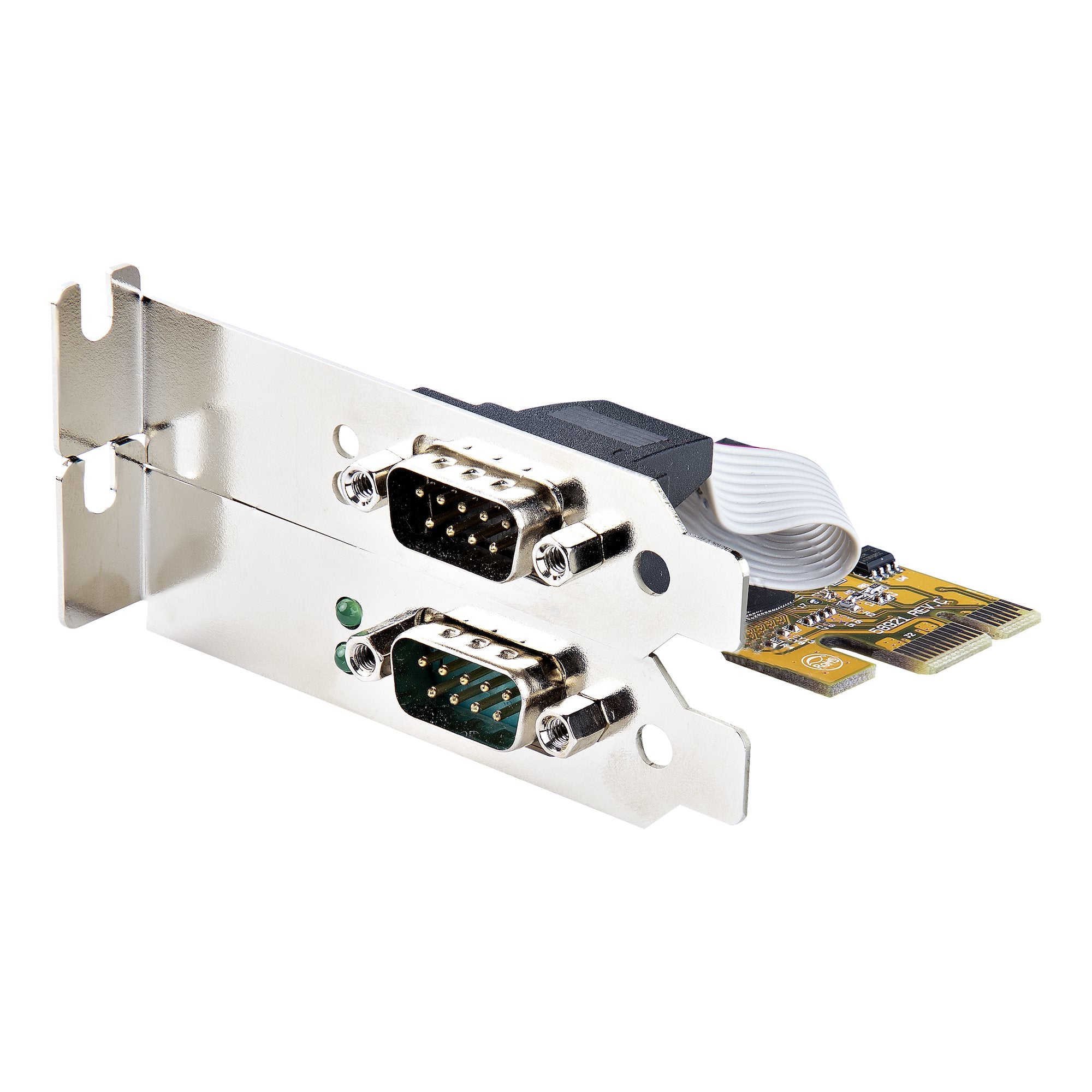

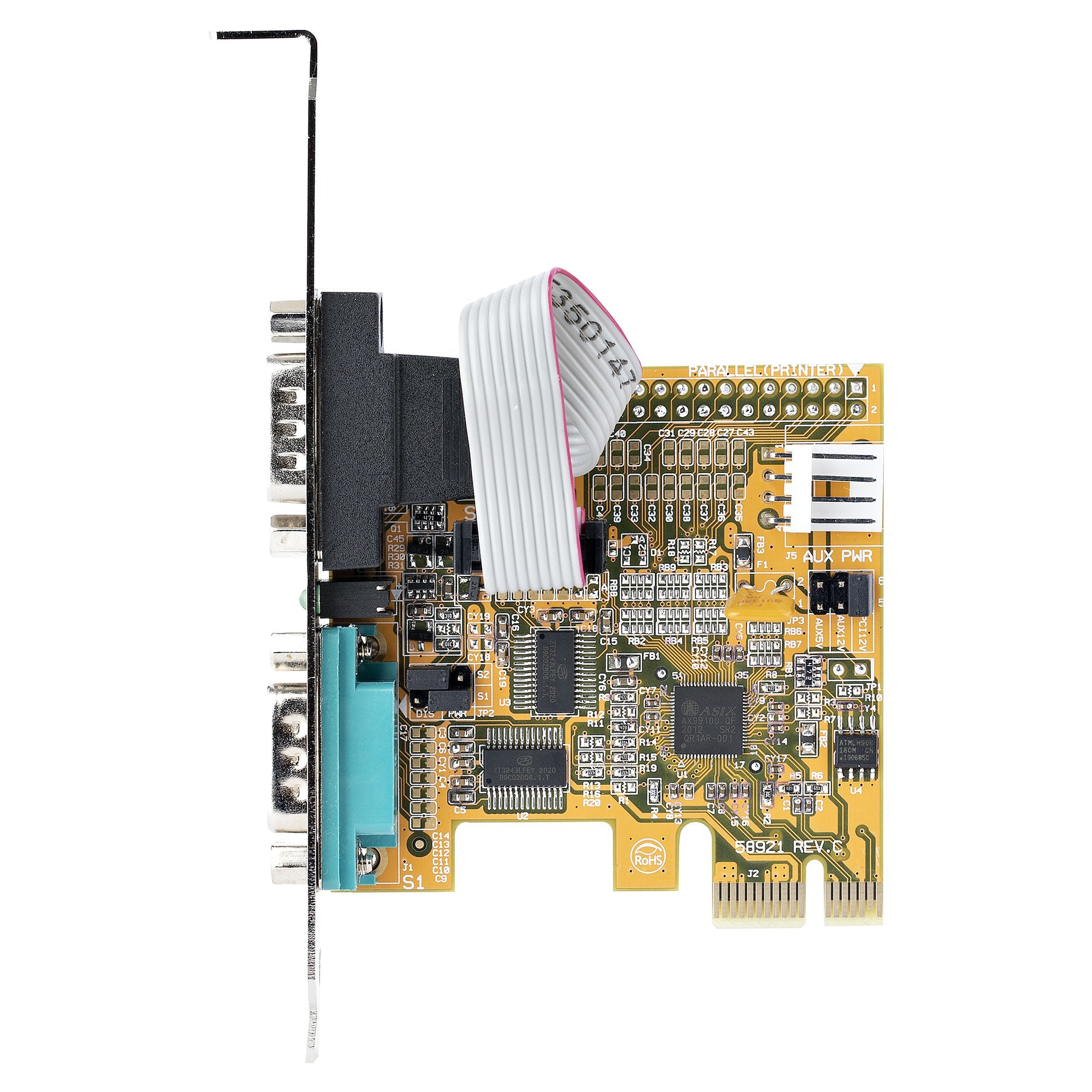

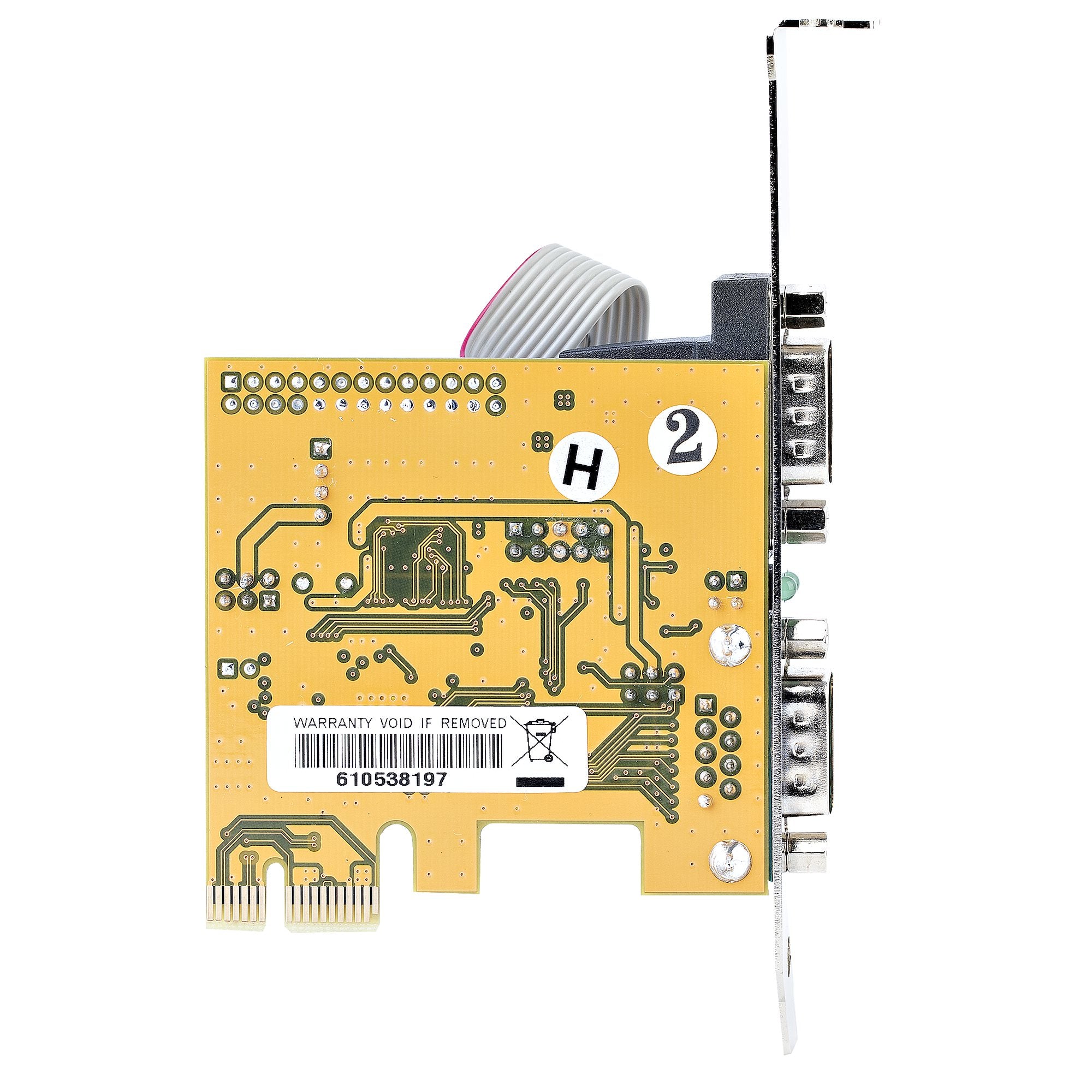

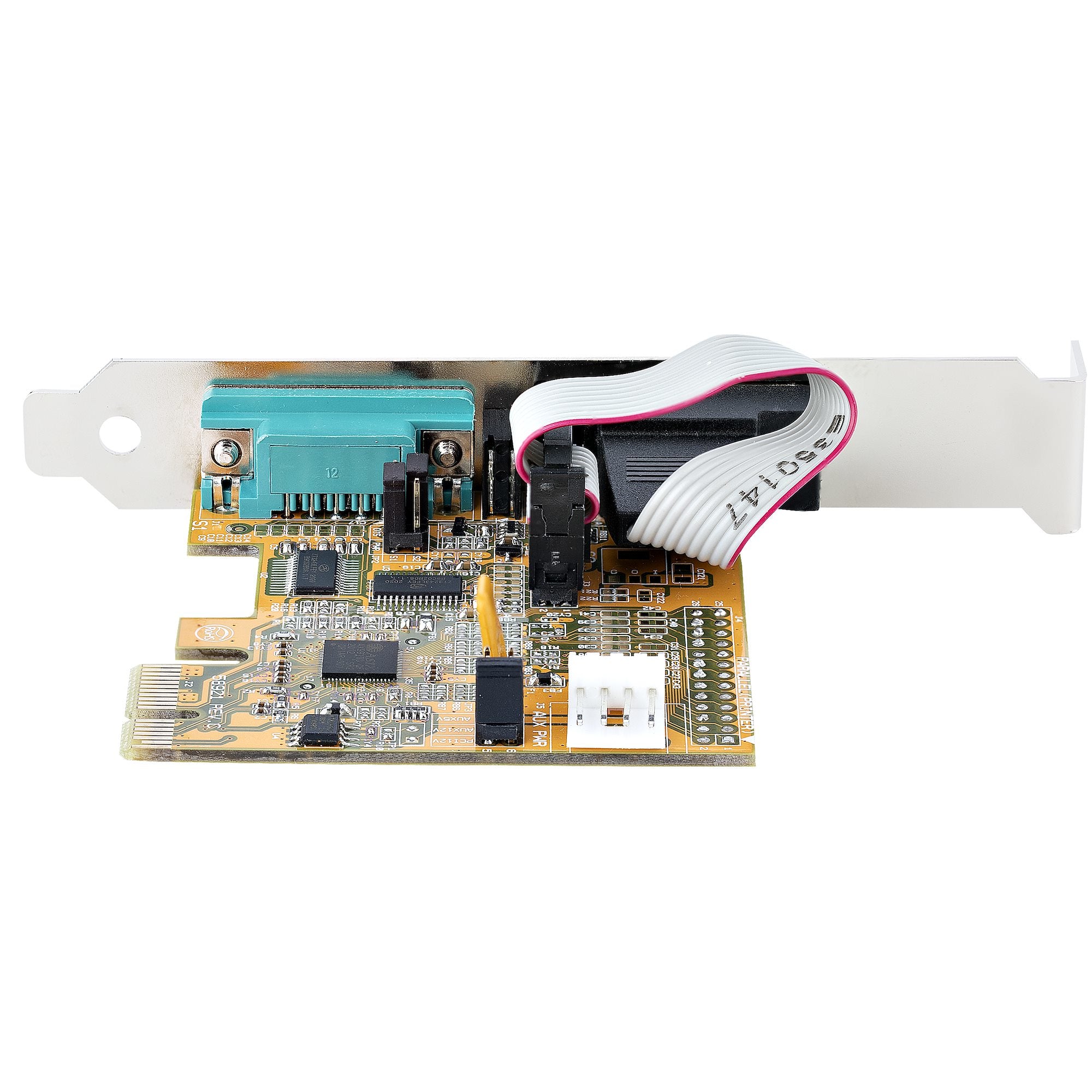

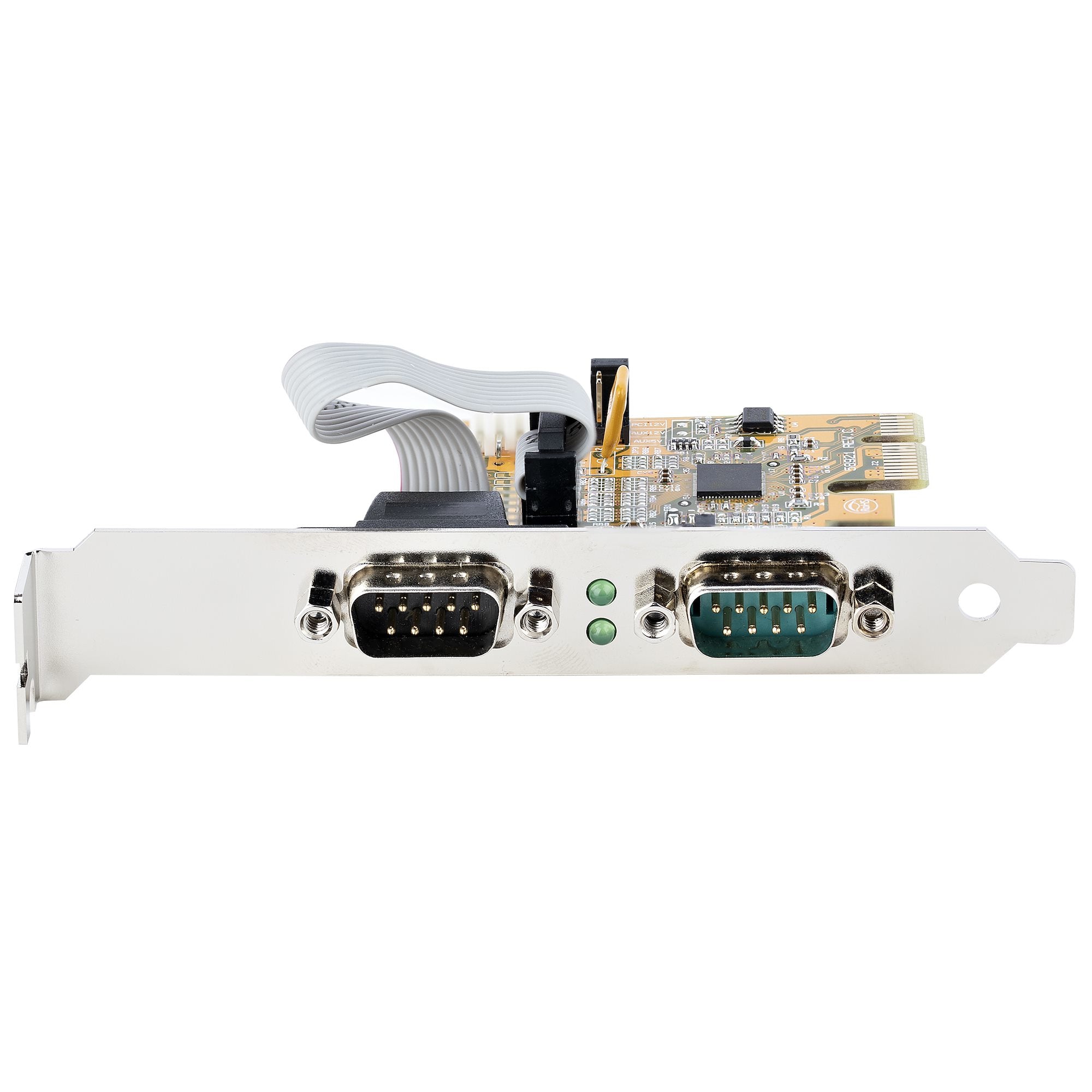

- PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART on both DB9 male ports. Monitor activity with the built-in LED status lights on the PCI express DB9 card
- DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile brackets are included
- APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 ports accept screw locking serial cables
- DUAL SERIAL PORT CARD SPECS: 16C1050 UART / Max Baud 921.6 Kbps per Port / 256 Byte FIFO / COM Retention / Supports Windows and Linux / Asix AX99100 Chipset / Odd/Even/Mark/Space/None Parity Modes / 5/6/7/8/9 Data Bits / PCIe 2.0 x1 / Low-profile Brackets
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Description
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1

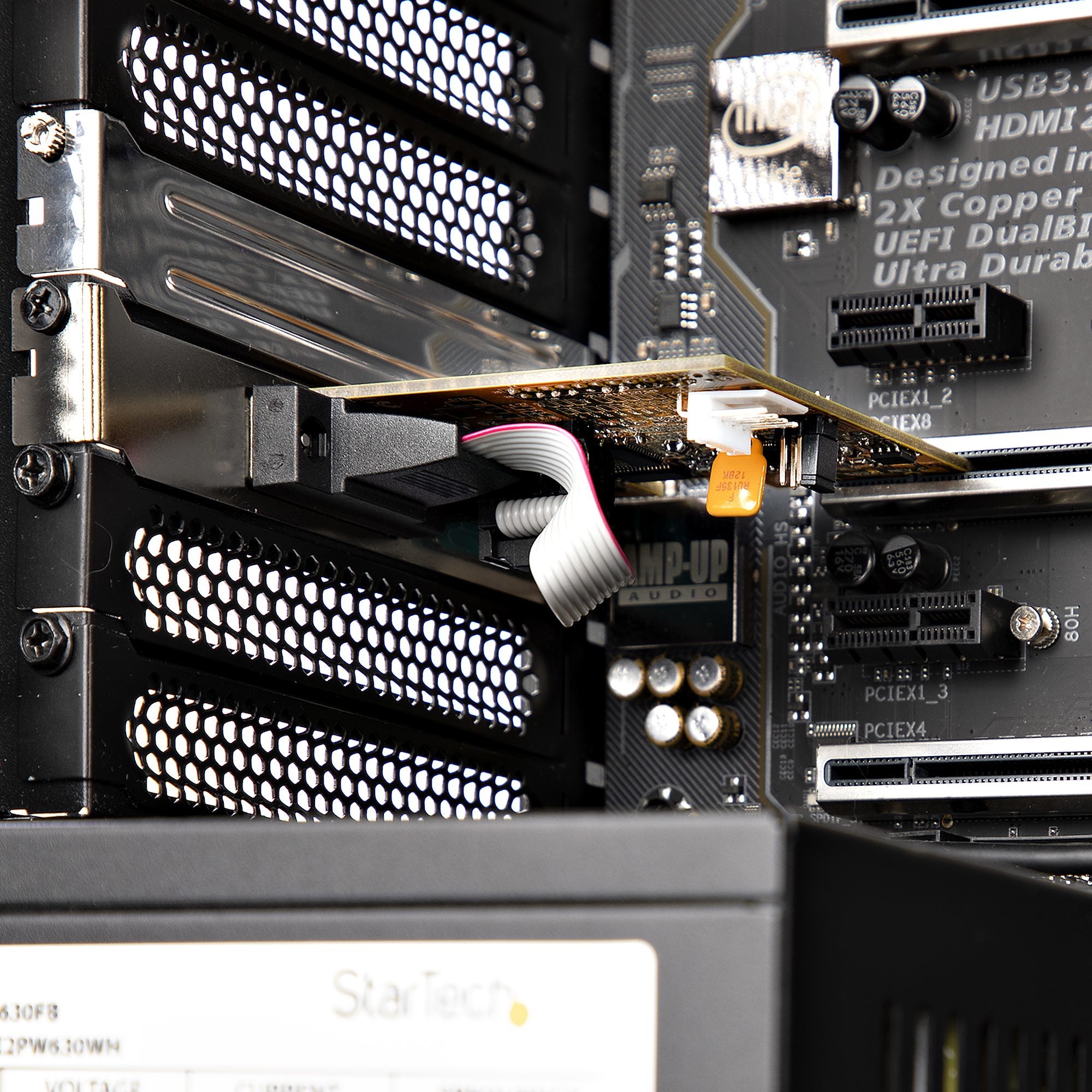

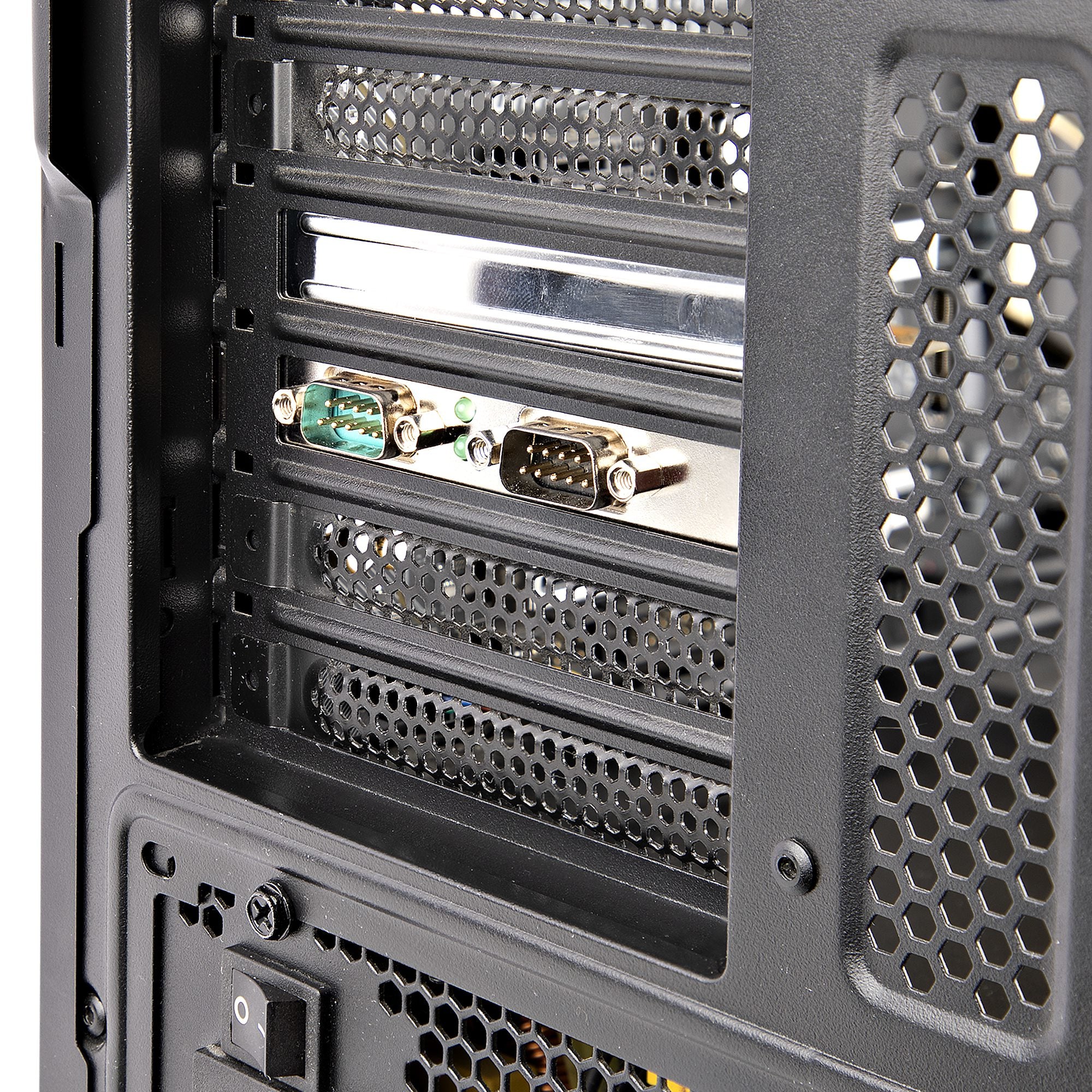

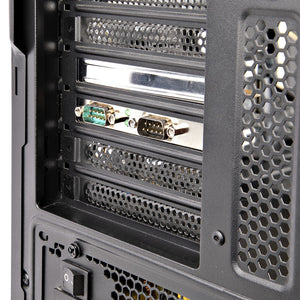

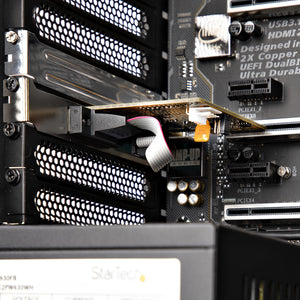

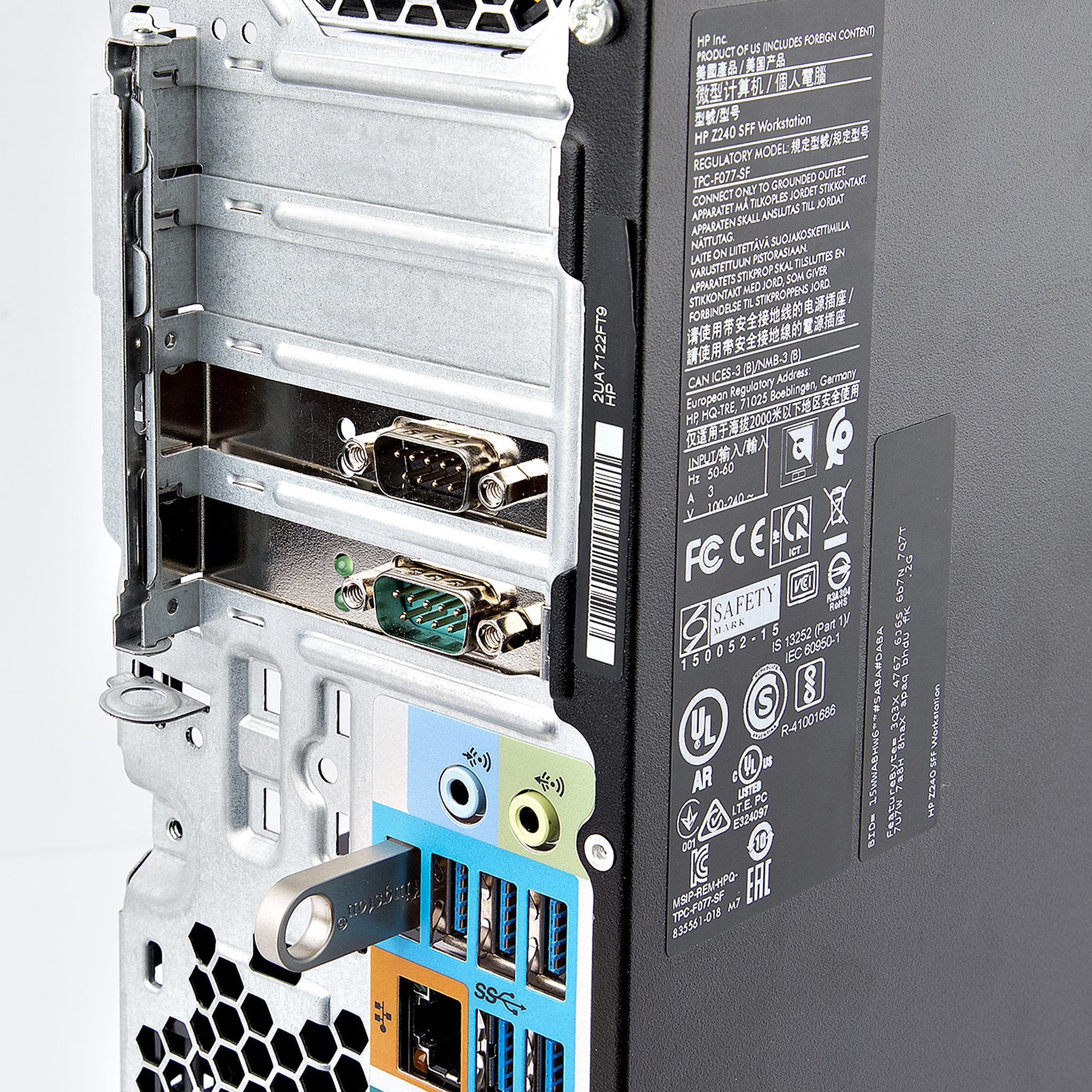

Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease

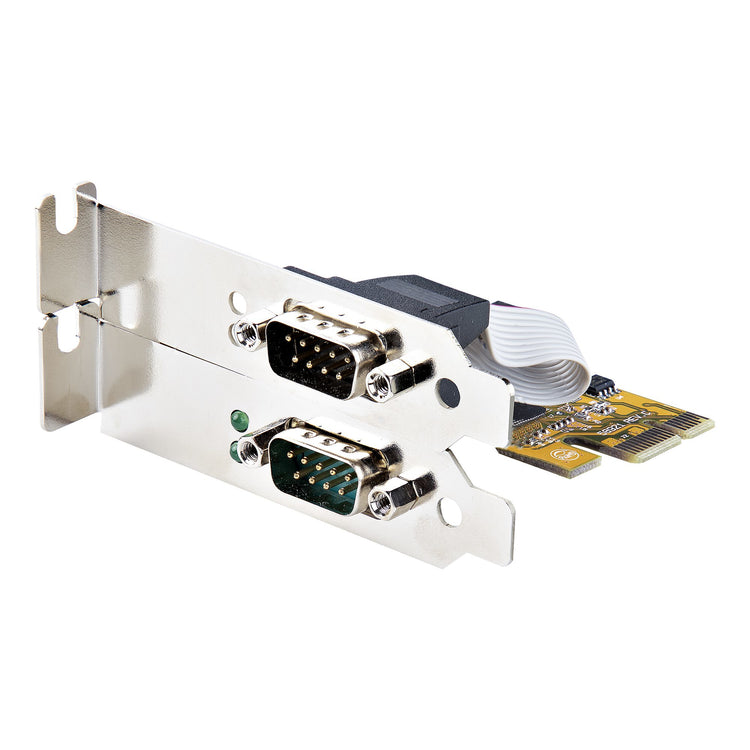

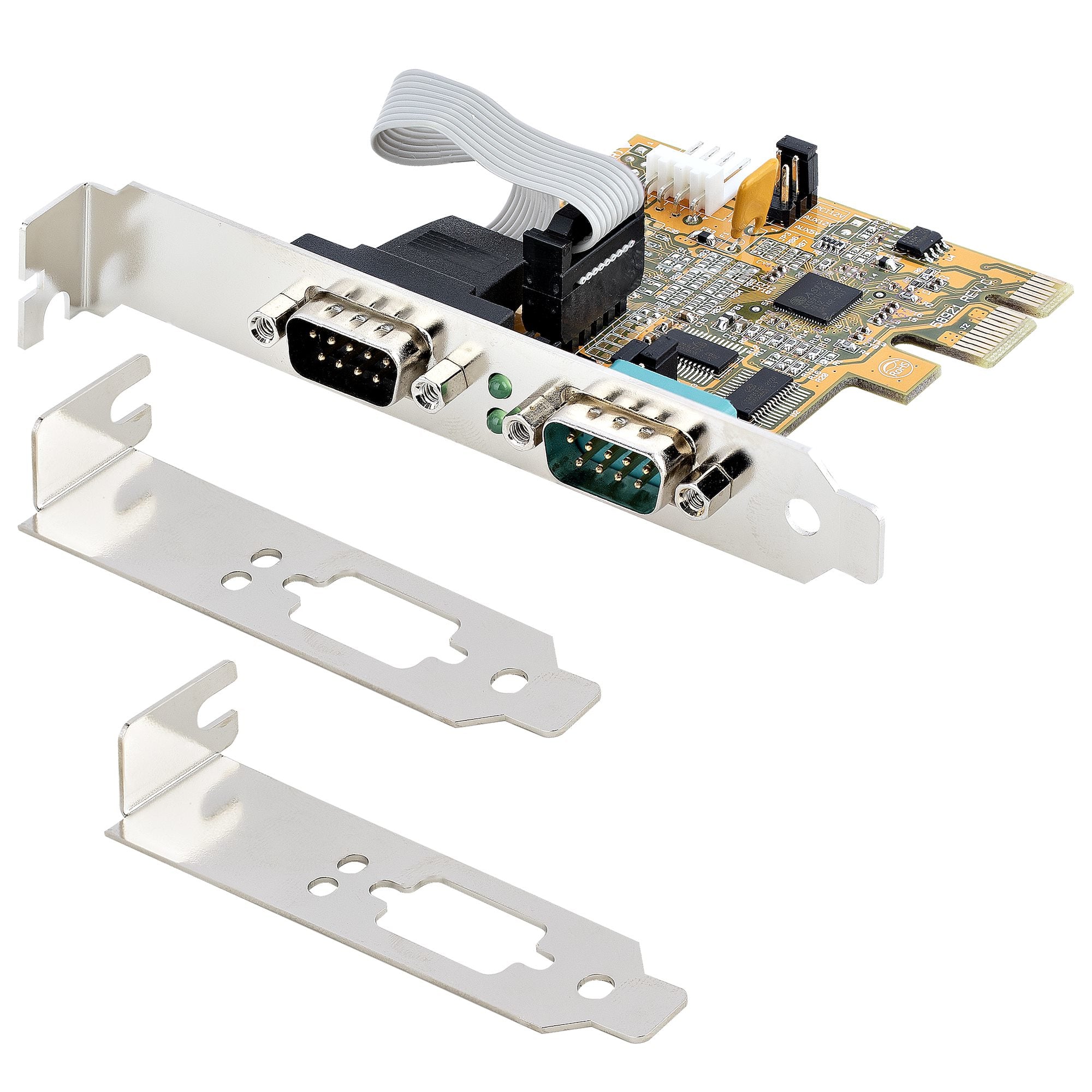

The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
PCIe
Output interface
The socket (port) where the output connectors are connected.
Serial
Expansion card form factor
Full-height / Low-profile
Expansion card standard
PCI 2.0
Serial ports quantity
The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.
2
Serial interface type
RS-232
Design
Internal
The product is built in.
Product colour
The colour e.g. red, blue, green, black, white.
Yellow
LED indicators
Activity
Features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASIX - AX99100, ASIX - ZT3243LFEY
Baud rate
921.6 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5, 6, 7, 8, 9
Flow control support
Parity bit
Even, Mark, No, Odd, Space
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 55 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Server operating systems supported
Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates
CE, RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
65 mm
Depth
The distance from the front to the back of something.
67 mm
Height
The measurement of the product from head to foot or from base to top.
18 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
51 g
Packaging data
Mounting brackets included
Quick installation guide
Package width
The distance from one side of the packaging to the other.
207 mm
Package depth
The distance from the front to the back of the packaging.
144 mm
Package height
The distance from the top to the bottom of the packaging.
38 mm
Package weight
Weight of the packaged product.
200 g
Logistics data
Harmonized System (HS) code
84733020
Products per master (outer) case
50 pc(s)
Master (outer) case width
530 mm
Master (outer) case length
440 mm
Master (outer) case height
340 mm
