STARTECH .com interface hub USB 3.2 Gen 2 (3.1 Gen 2) Type-C 10000 Mbit/s Black (HB31C5A2CME)
- Regular price
- $238.95
- Sale price
- $238.95
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com HB31C5A2CME interface hub USB 3.2 Gen 2 (3.1 Gen 2) Type-C 10000 Mbit/s Black
Brand:StarTech.com
Product name:7-Port Industrial USB 10Gbps Hub with Power Adapter, Metal, Mountable, 5x USB-A and 2x USB-C Downstream Ports, ESD Protection, Powered USB Hub, TAA
Product code:HB31C5A2CME
EAN/UPC:
0065030889810
0065030889810, 065030889810
- 7-PORT INDUSTRIAL USB HUB: Plug-and-play USB 3.2 Gen 2 hub with durable metal housing, ideal for harsh environments; Features 5x USB-A plus 2x USB-C ports with 10Gbps shared bandwidth, ESD Protection (15kV air/8kV contact) and 350W surge protection

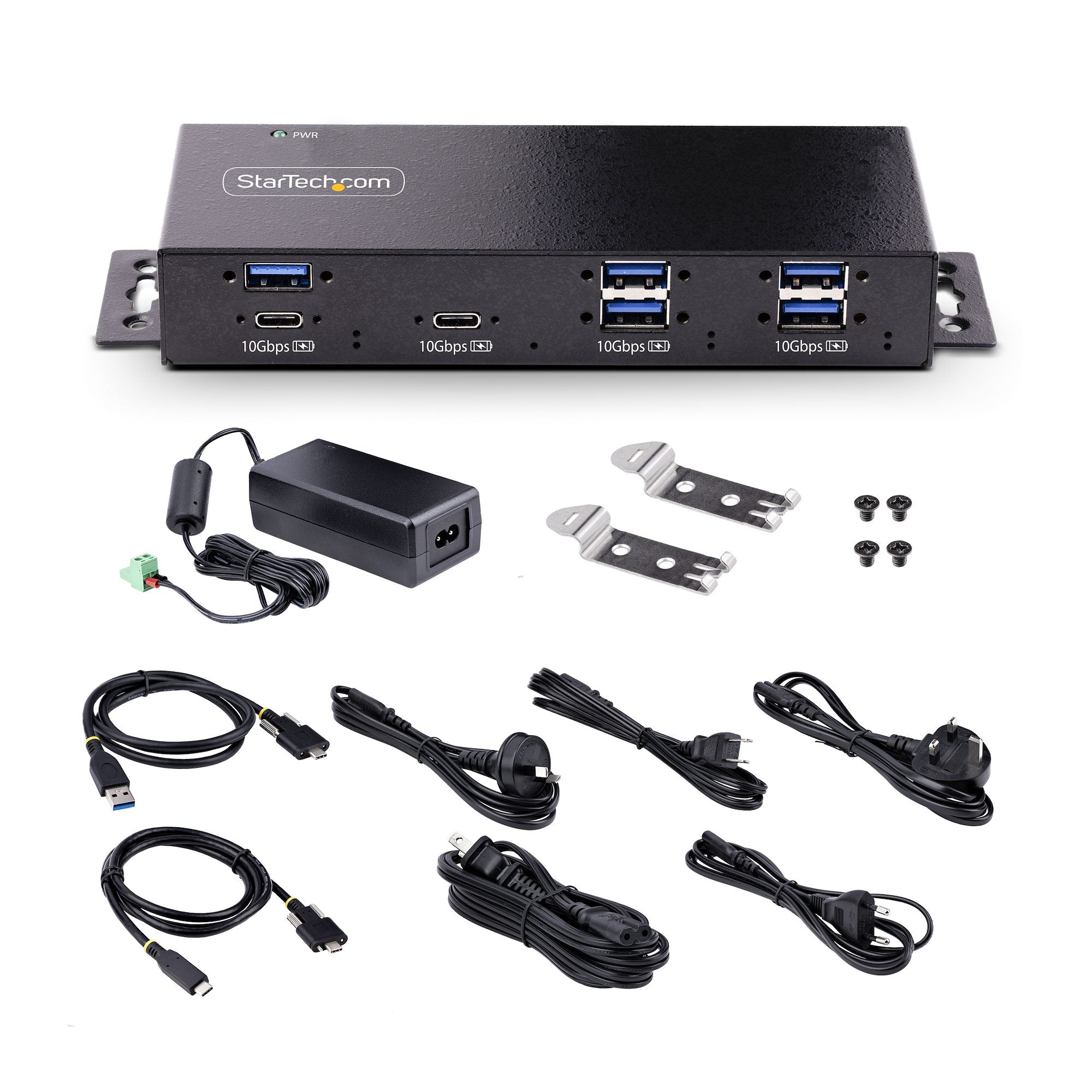

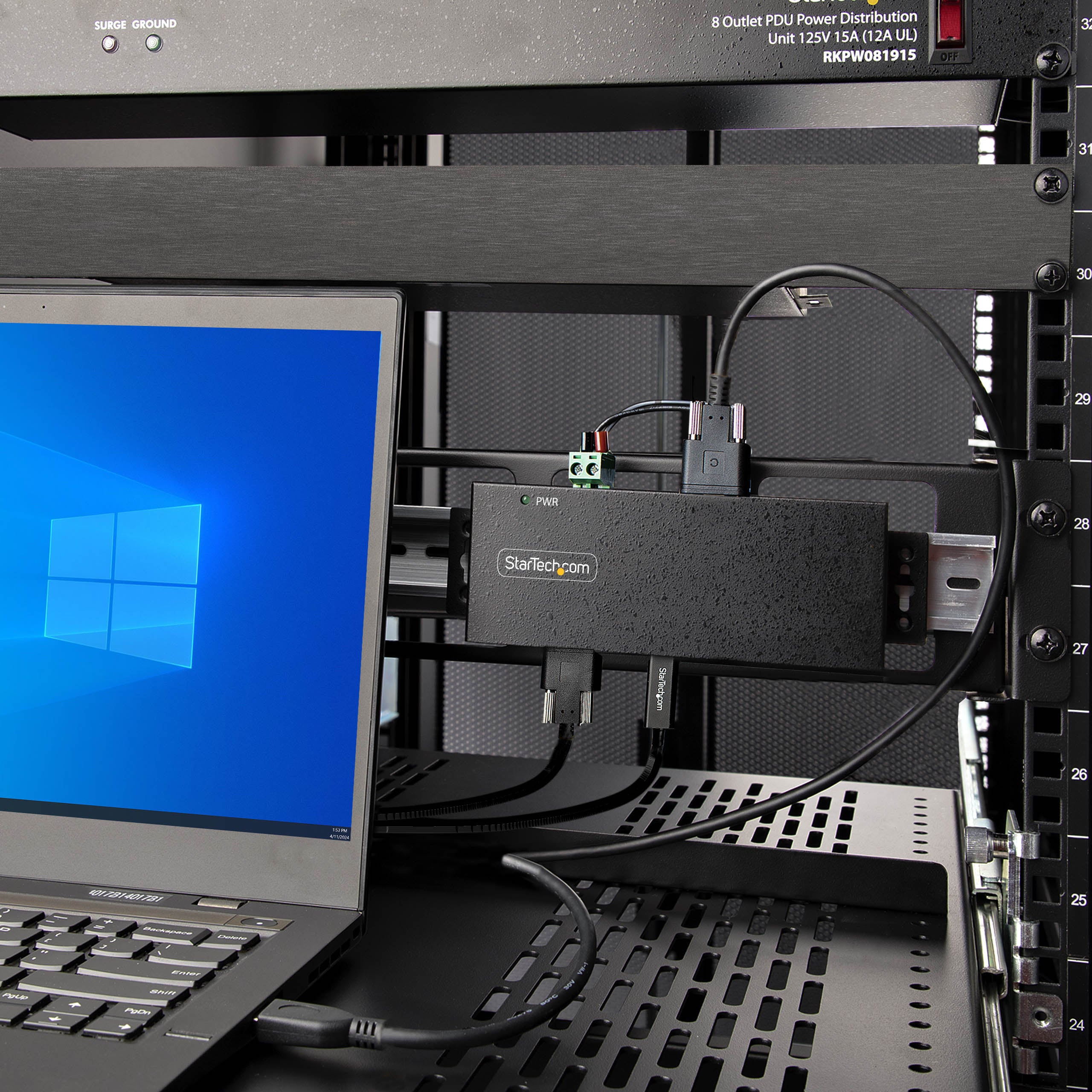

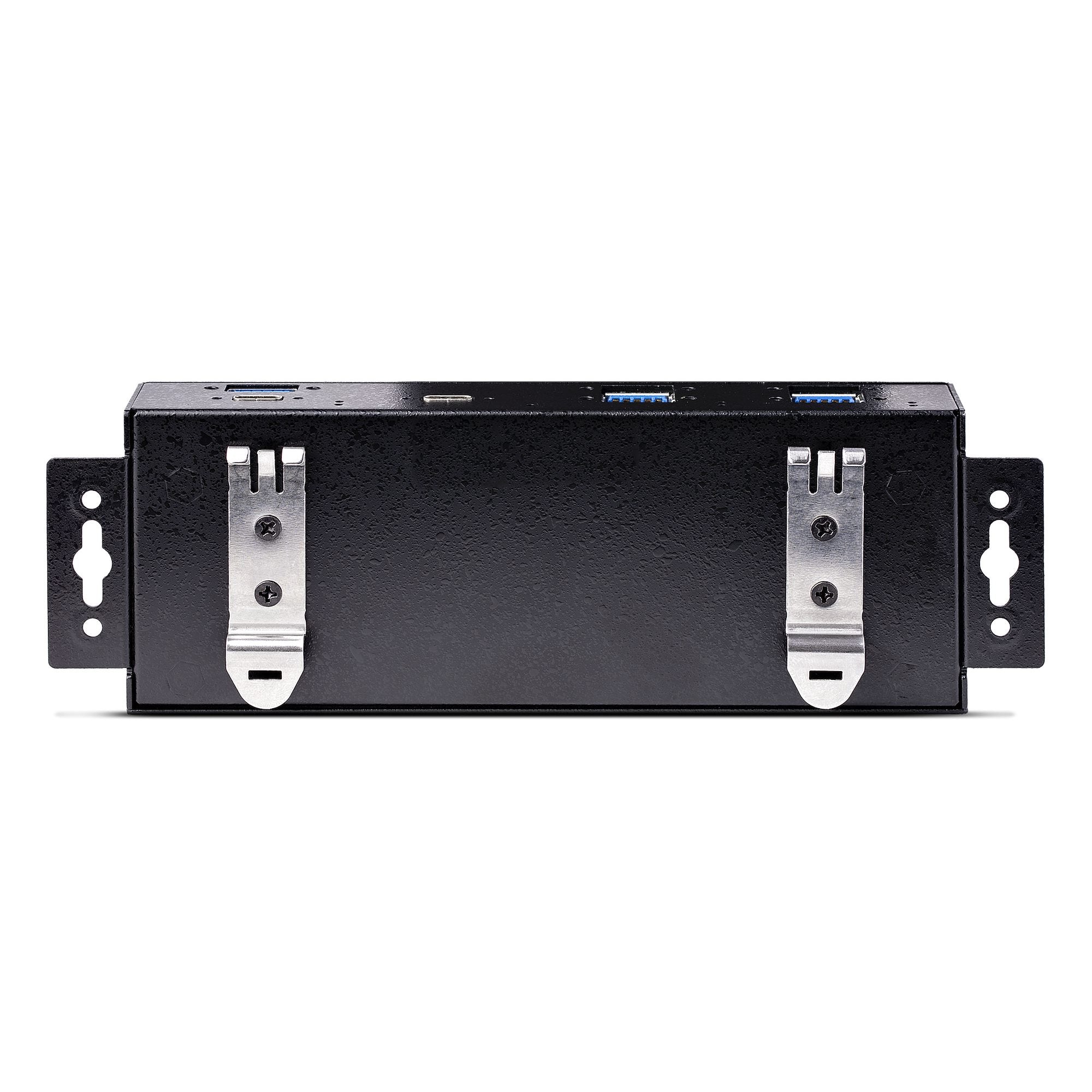

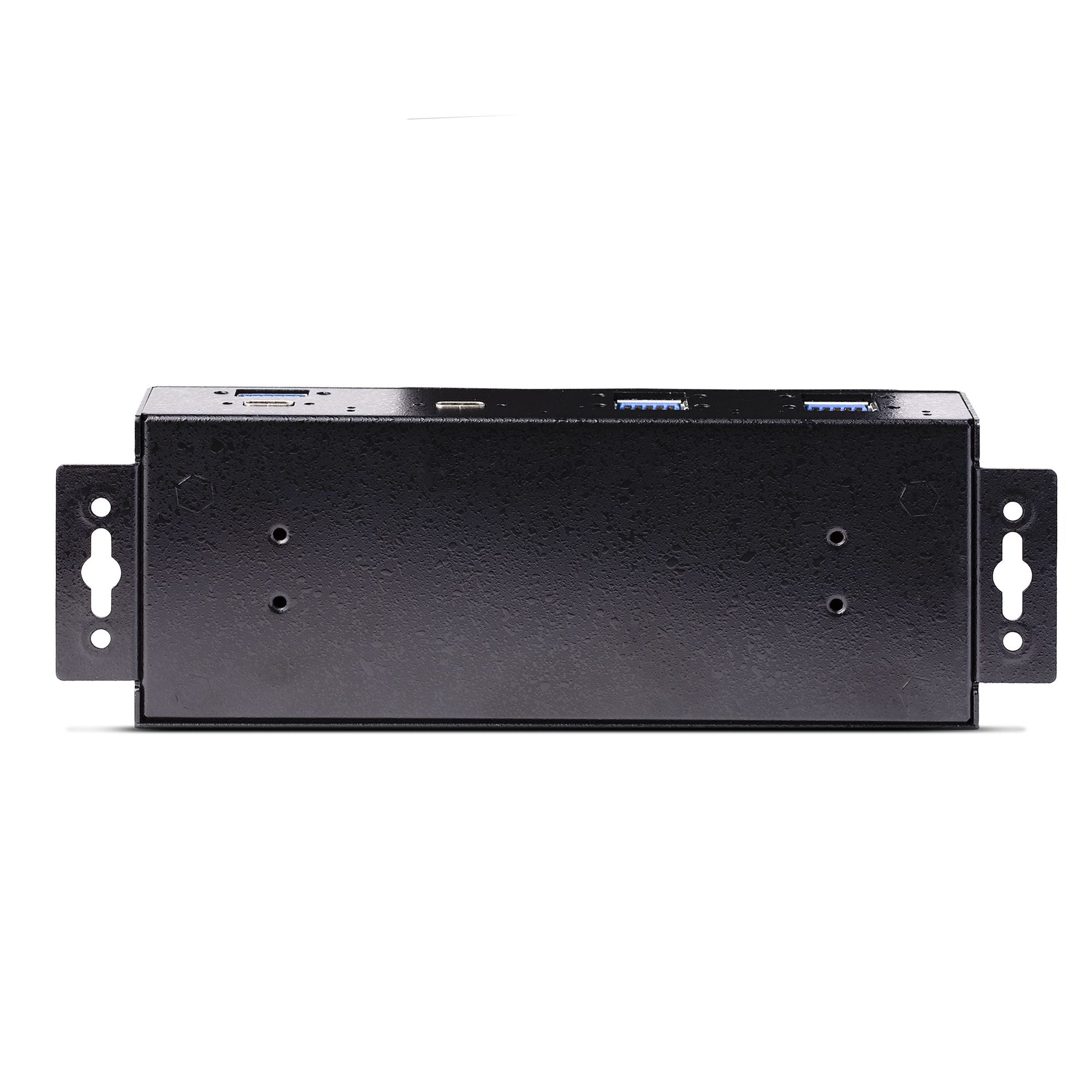

- VERSATILE MOUNTING: Securely install on or under a desk, wall, or DIN rail with built-in mounting ears and included DIN clips; Includes two 3.3ft (1m) USB-C to C/USB-C to A cables with screw lock USB-C host connector to prevent unwanted disconnections
- HIGH-SPEED DATA TRANSFER: Achieve speeds up to 10Gbps on all downstream ports, ideal for data storage banks, SSDs, NVMe enclosures, RAID enclosures, 3D printers/scanners, and more; Backwards compatible with USB 3.0 (5Gbps), 2.0 and 1.x
- POWER AND CHARGE: Functions as a charging station when not connected to a host; Provides 12W (2.4A) on all ports up to a total 40W draw; Powered via universal adapter (included) or 7-24V DC terminal block
- COMPATIBILITY: OS independent and tested for compatibility with Windows/macOS/Linux/ChromeOS; No drivers or software required; USB Event Monitoring Utility available; TAA Compliant
Description
Add 7 external, wall mountable USB 3.2 (10Gbps) ports from a single USB-C connection

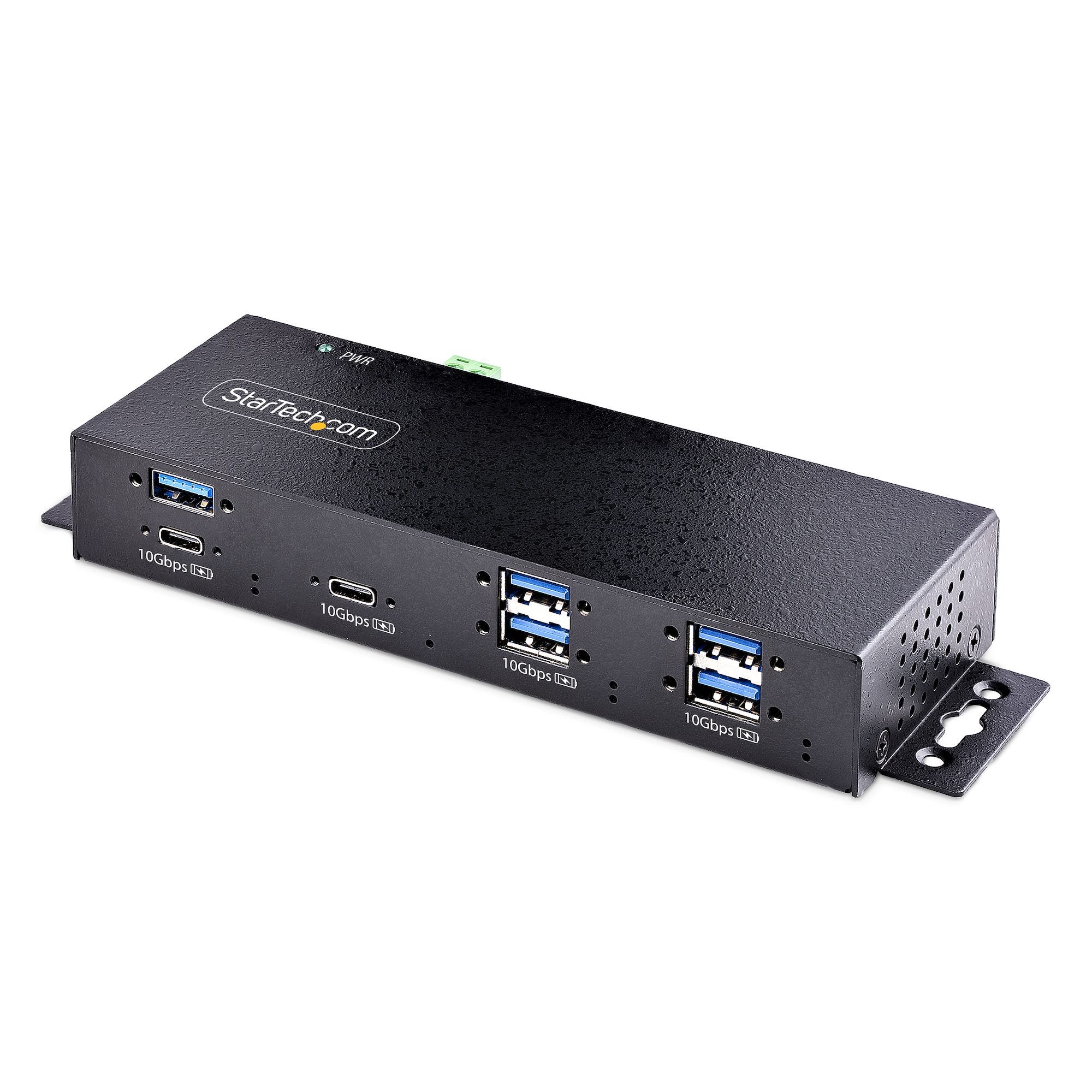

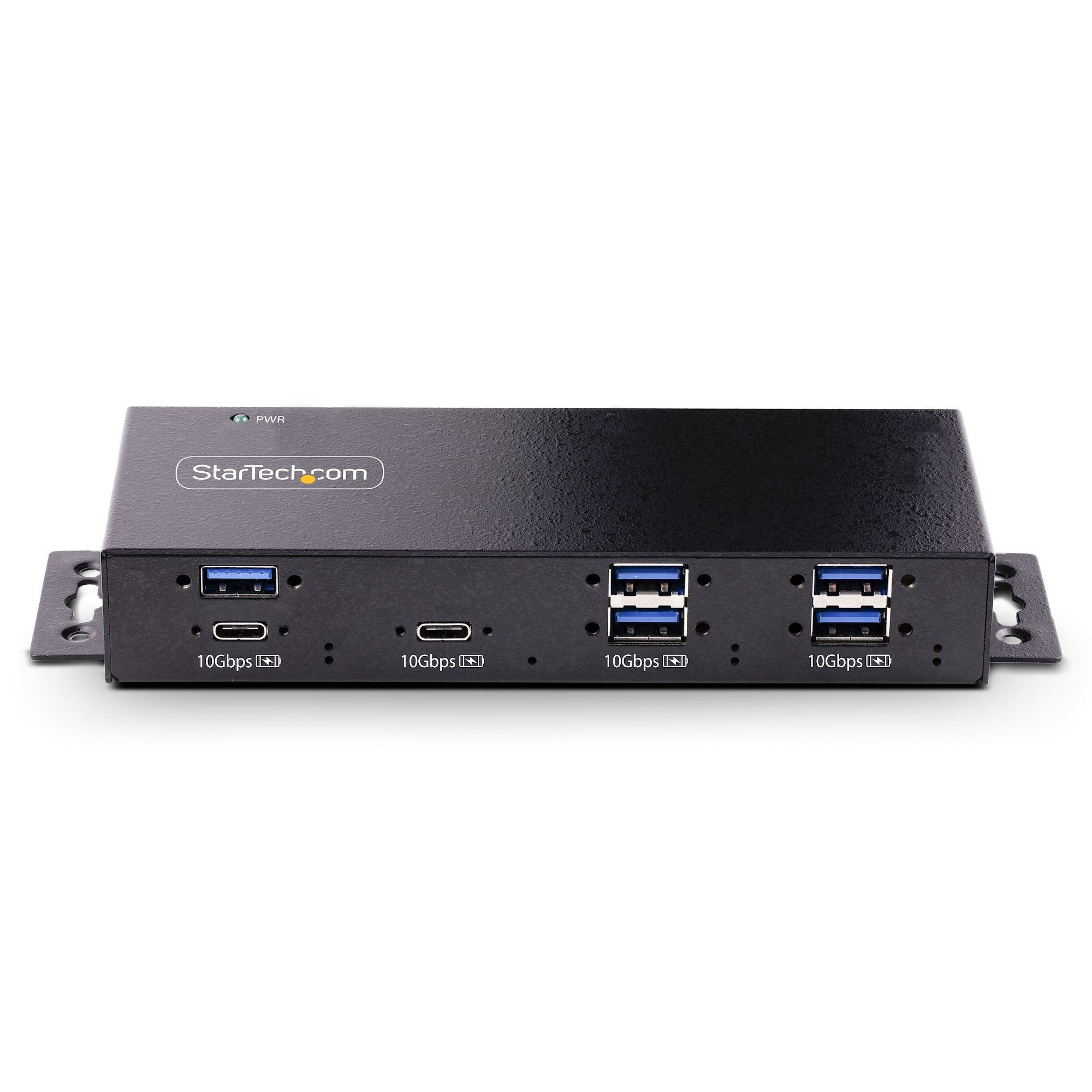

The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.
Power & Charging

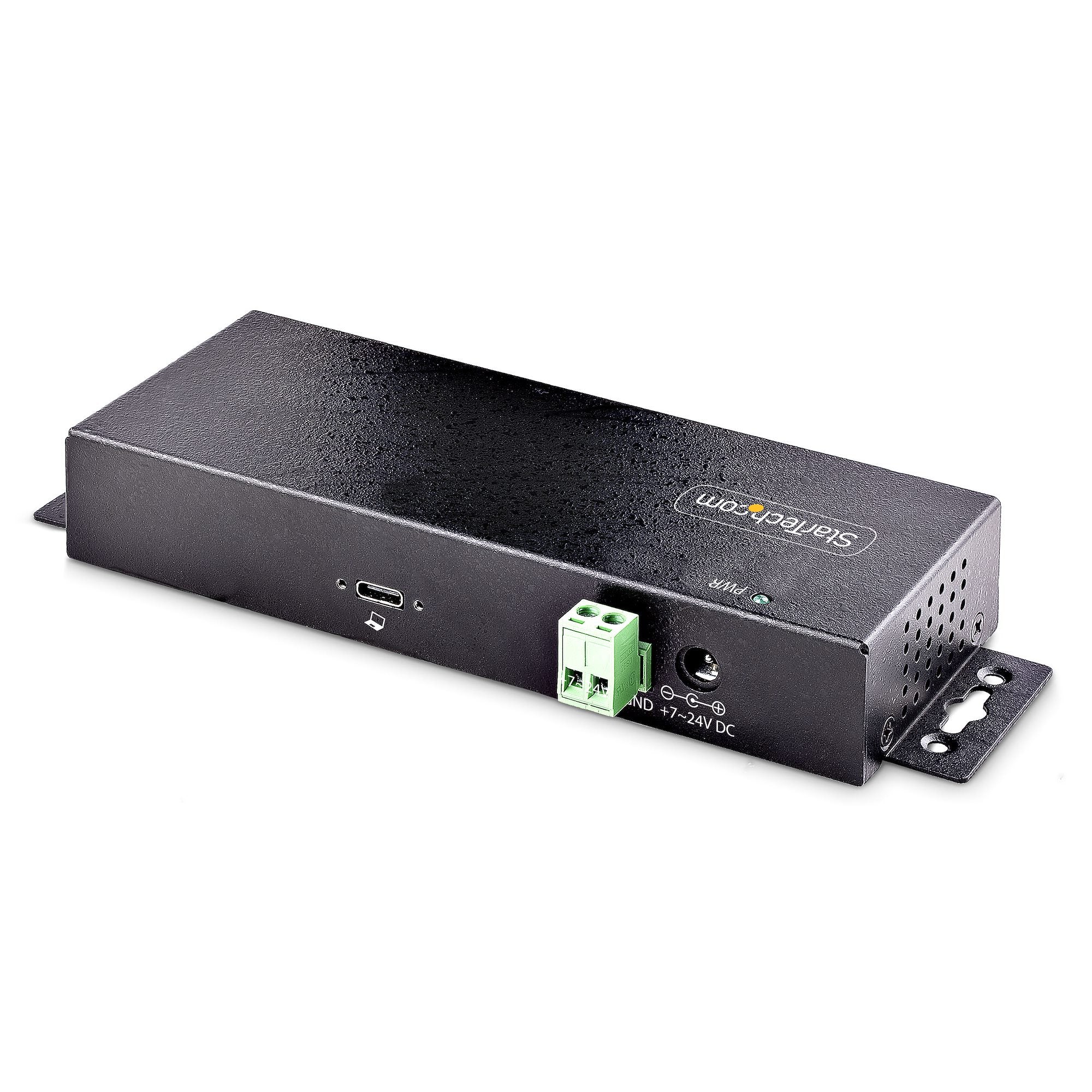

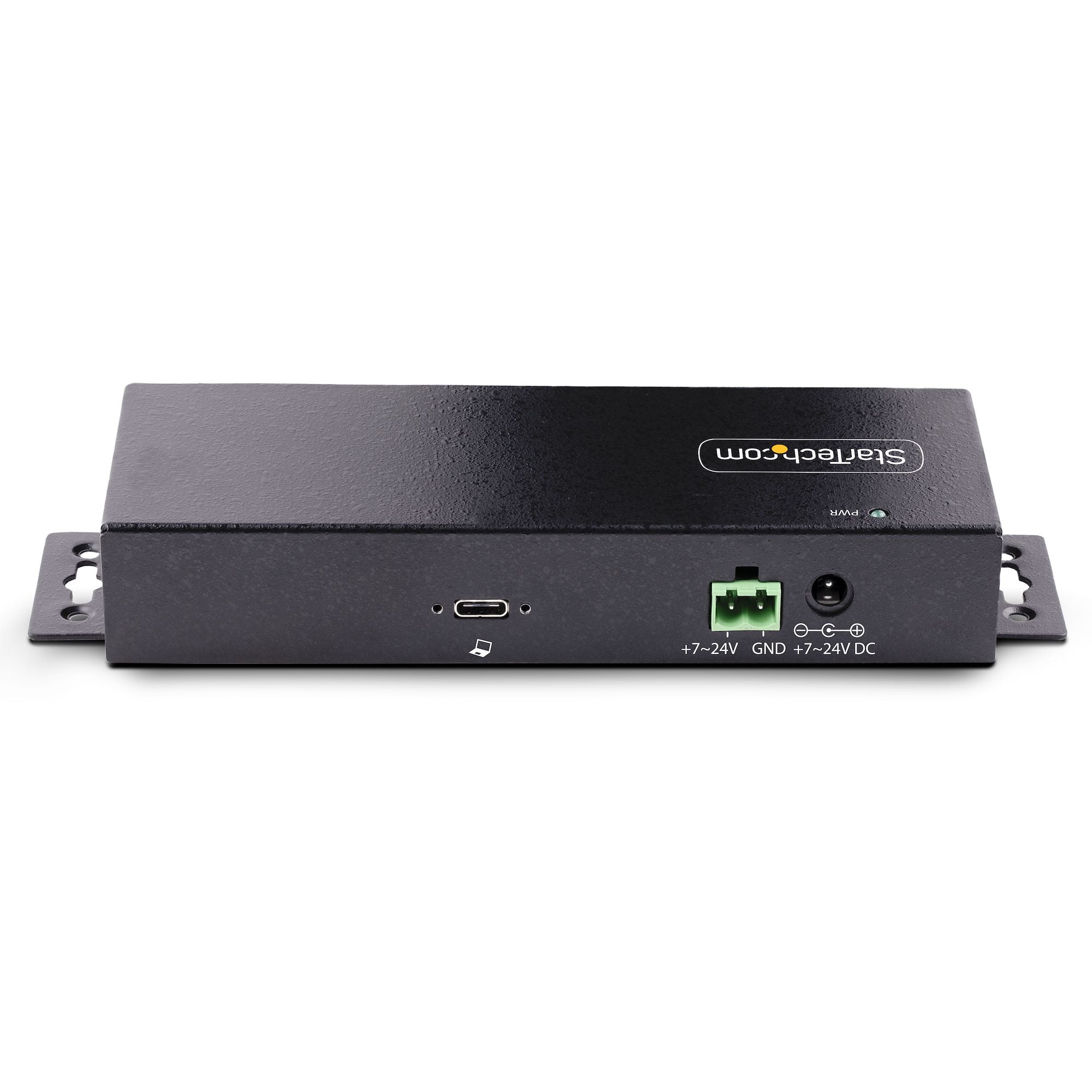

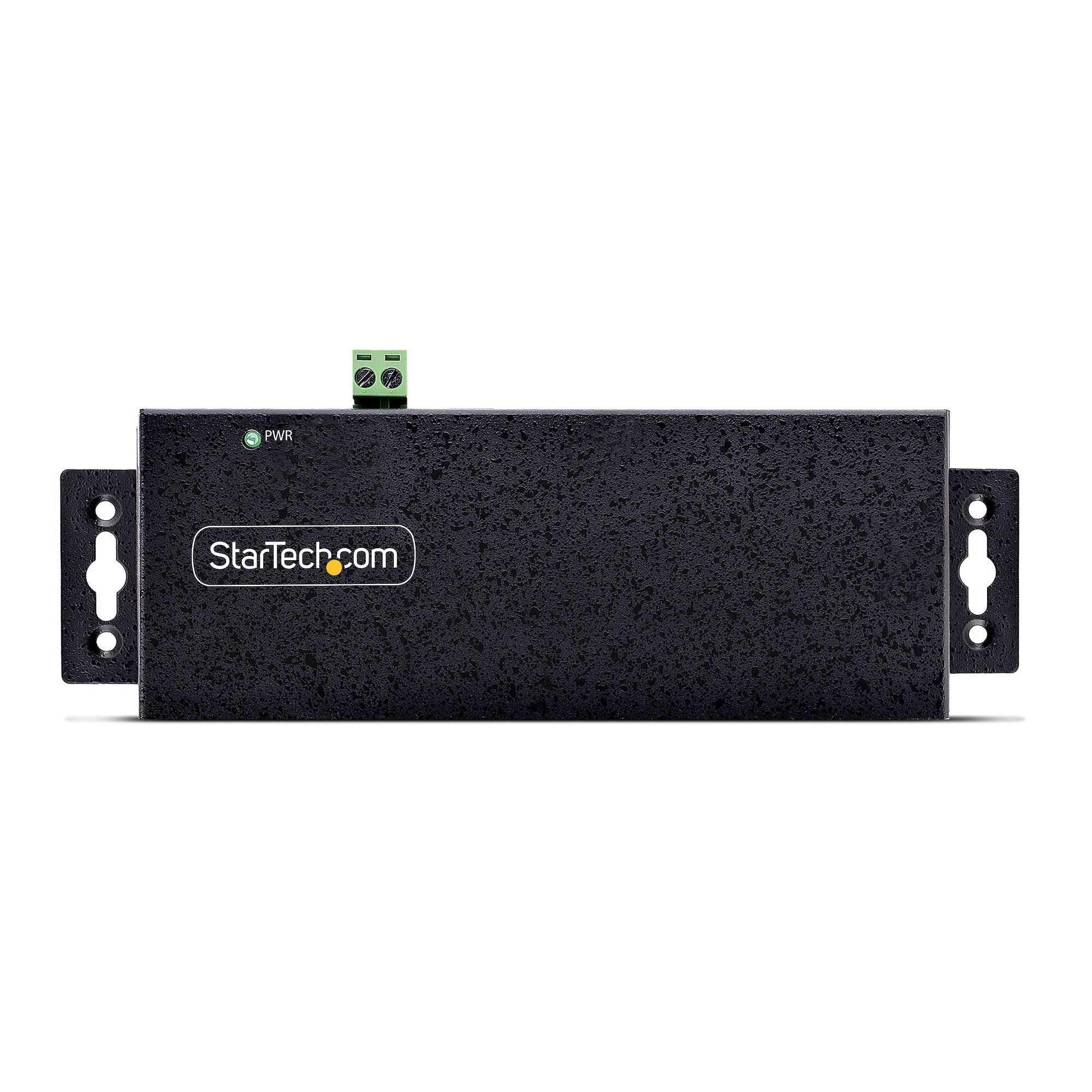

This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.
When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.
High-Speed Data Transfer
With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.x devices.
OS-Independent
This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.
The StarTech.com Advantage
The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.
Power & Charging
This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.
When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.
High-Speed Data Transfer
With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.x devices.
OS-Independent
This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.
The StarTech.com Advantage
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces
A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
2
Ports quantity
The number of ports or external interfaces to which other equipment can be connected.
7
Terminal block port
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Features
Data transfer rate
Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
10000 Mbit/s
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
Surge protection
Electrostatic Discharge (ESD) protection (air)
15 kV
Electrostatic Discharge (ESD) protection (contact)
8 kV
LED indicators
Yes
Power
Power supply type
The type of power supply which this product uses.
DC
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Weight & dimensions
Width
The measurement or extent of something from side to side.
26 mm
Depth
The distance from the front to the back of something.
60 mm
Height
The measurement of the product from head to foot or from base to top.
178 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
300 g
Packaging data
Package width
The distance from one side of the packaging to the other.
290 mm
Package depth
The distance from the front to the back of the packaging.
187 mm
Package height
The distance from the top to the bottom of the packaging.
70 mm
Package weight
Weight of the packaged product.
1.4 kg
Packaging content
AC adapter included
Included power plug types
ANZ, EU, JP, NA, UK
Cables included
USB Type-A to USB Type-C, USB Type-C to USB Type-C
DIN rail kit included
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 55 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Performance
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
163021.7 h
Logistics data
Master (outer) case width
515 mm
Master (outer) case length
390 mm
Master (outer) case height
313 mm
Products per master (outer) case
14 pc(s)
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Other features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
VIA/VLI VL822
