StarTech.com USB3SDOCKDD laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-B Black, Silver
Brand:StarTech.com
Product name:Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand
Product code:USB3SDOCKDD
EAN/UPC:
0065030858267
0065030858267, 065030858267, 0650308582670, 650308582670
- Dock your USB 3.0 equipped Mac or Windows laptop with support for several dual monitor configurations using the included video adapters
- Connect and charge your USB devices with 5x USB 3.0 ports, including two Fast-Charge USB ports

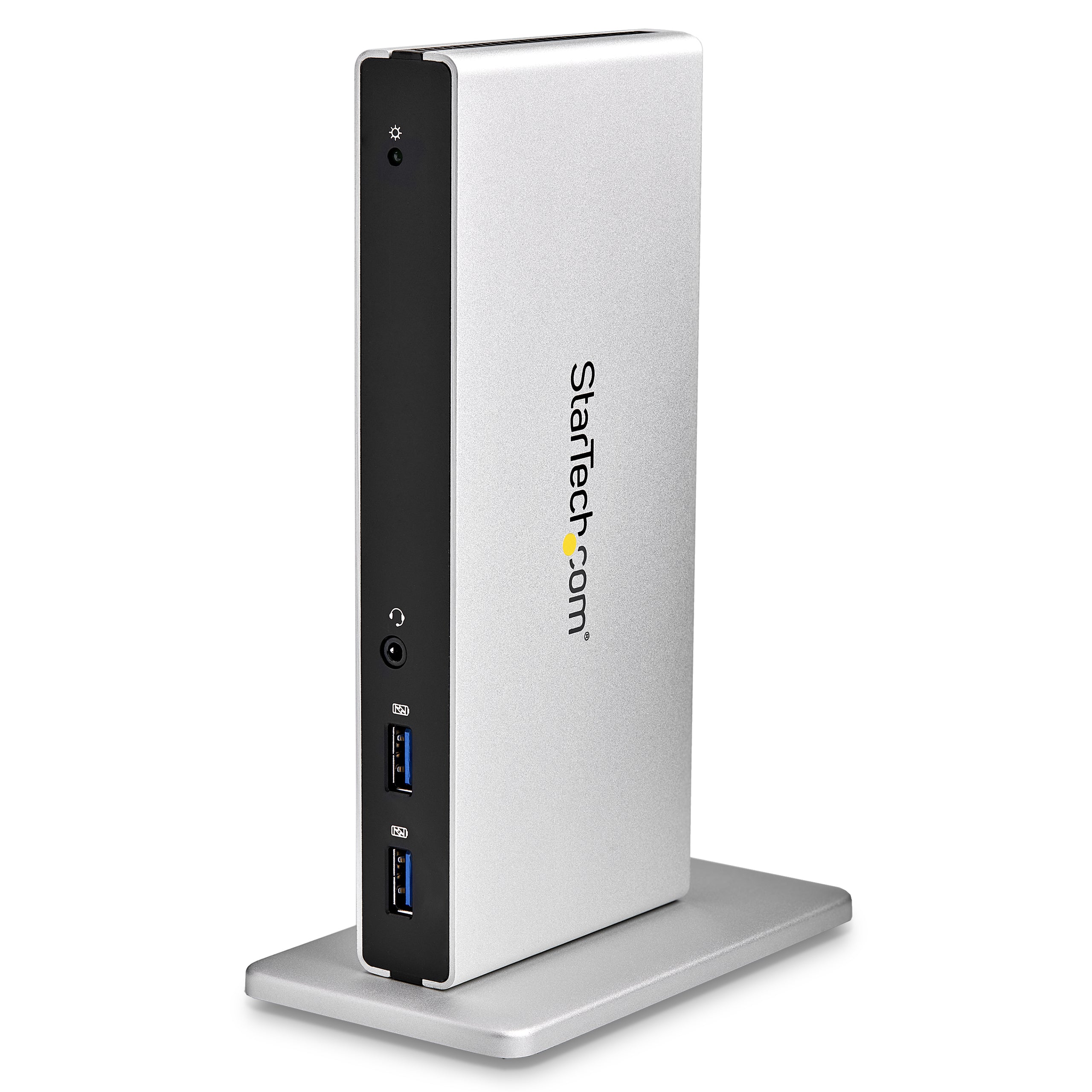

- Save space on your desktop by placing the dock in a vertical orientation with the included dock stand
- Add wired network connectivity and audio devices with the Gigabit Ethernet RJ-45 port and headset jack plus separate 3.5 mm audio and microphone ports
Description
Laptop Docking Station | Mac & Windows® | DVI to VGA & HDMI® Adapters | 2x Charge Ports

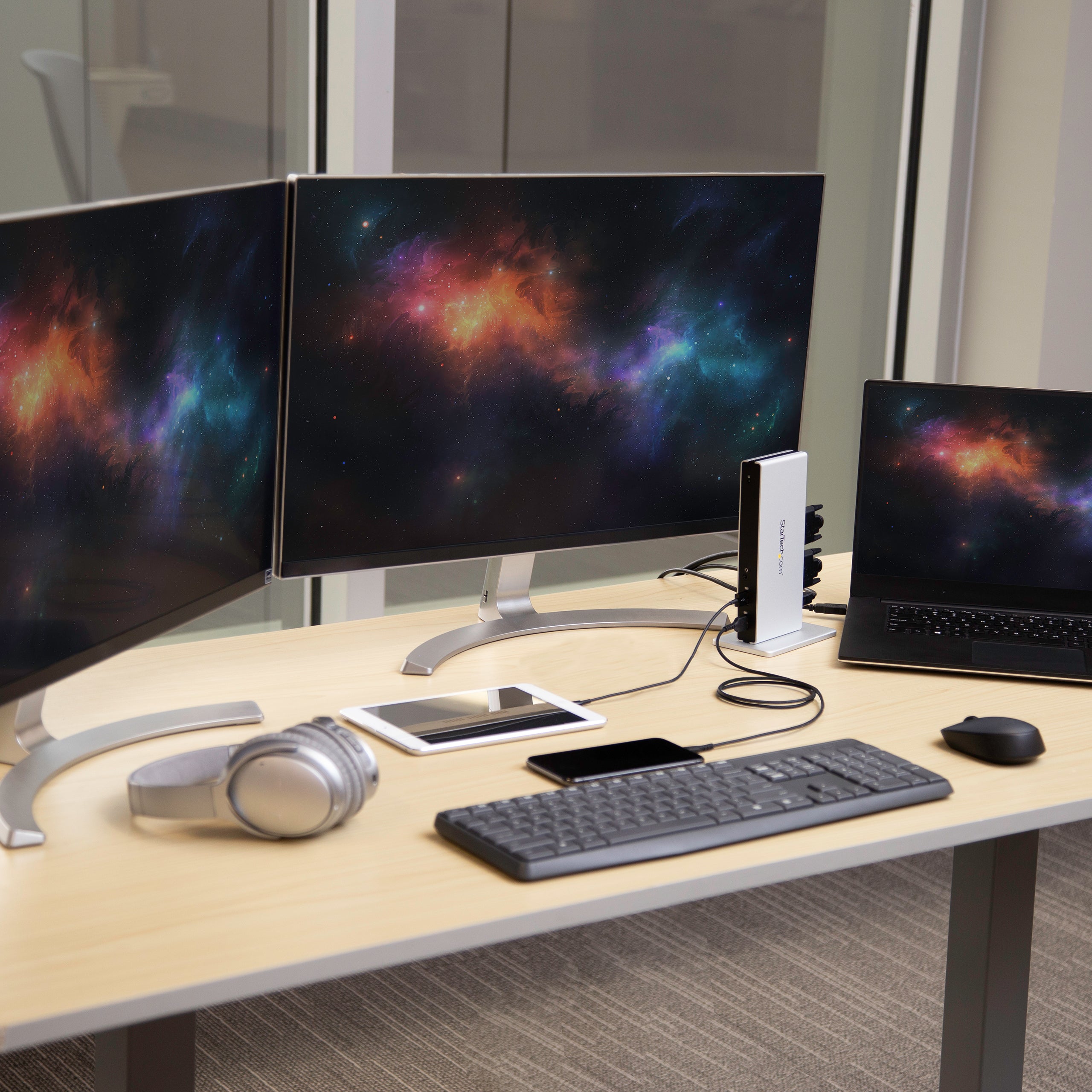

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

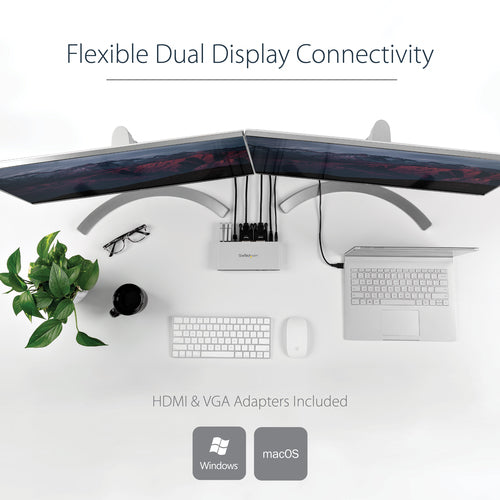

Display Flexibility
The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

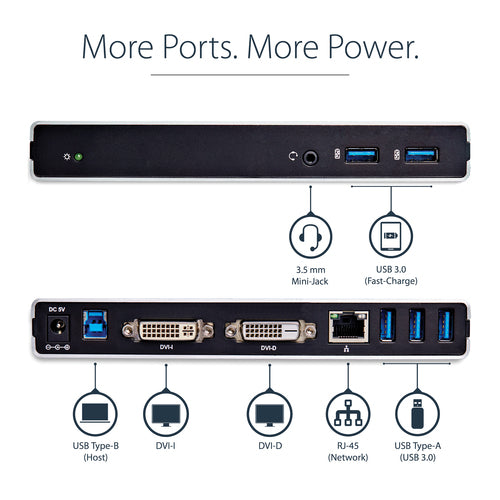

Powerful Connections and Fast Device Charging
Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

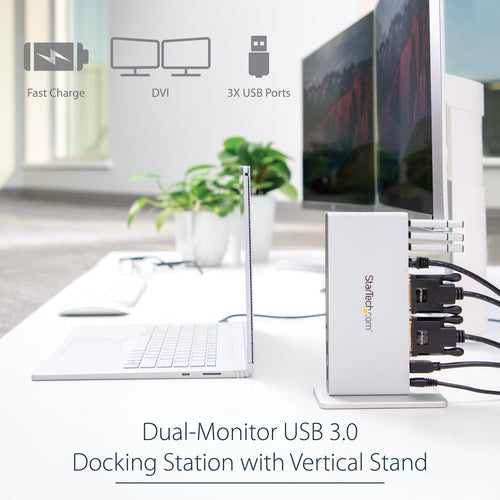

Save Desktop Space

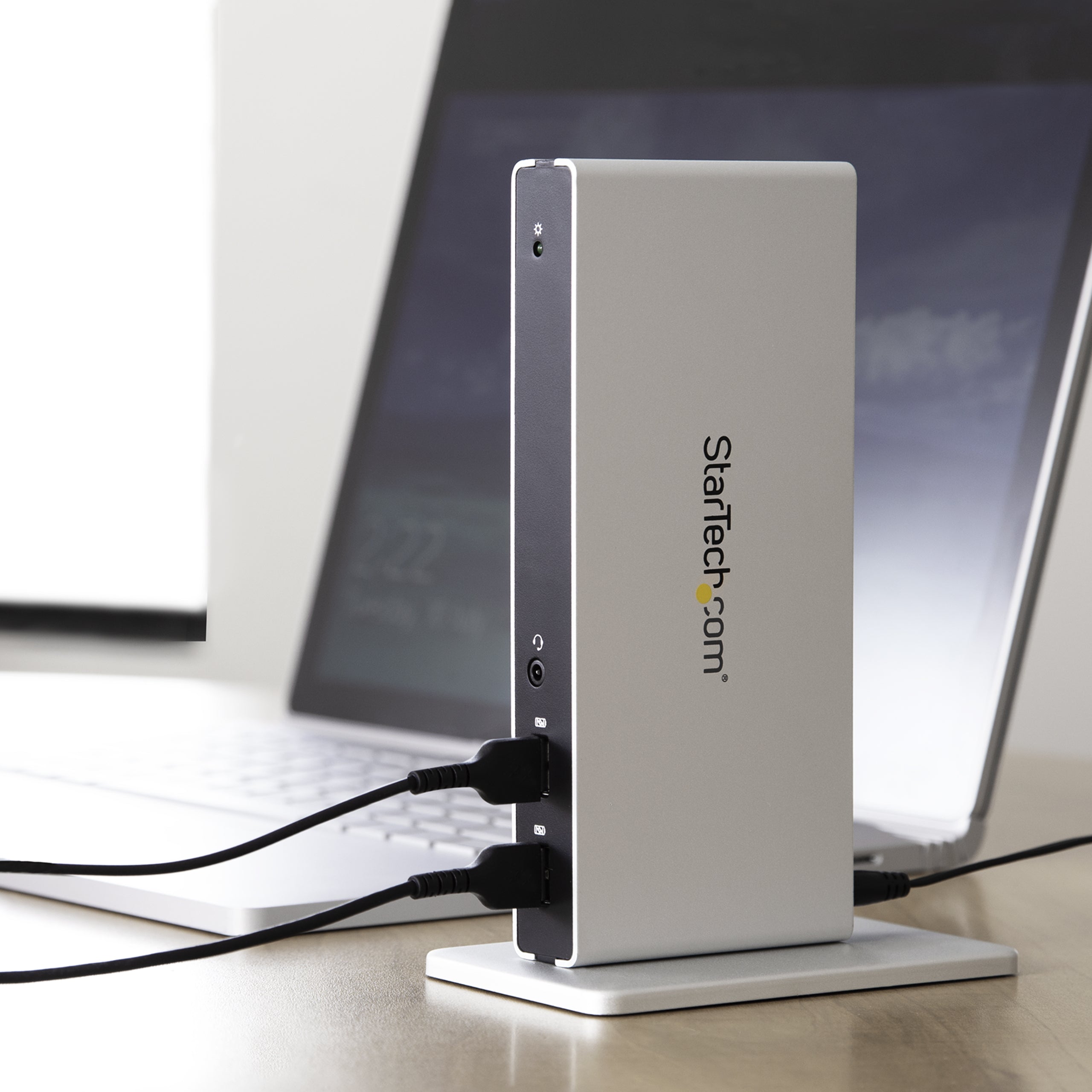

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.
The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.
Display Flexibility
The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.
Powerful Connections and Fast Device Charging
Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.
Save Desktop Space
You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.
The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Video
Specs

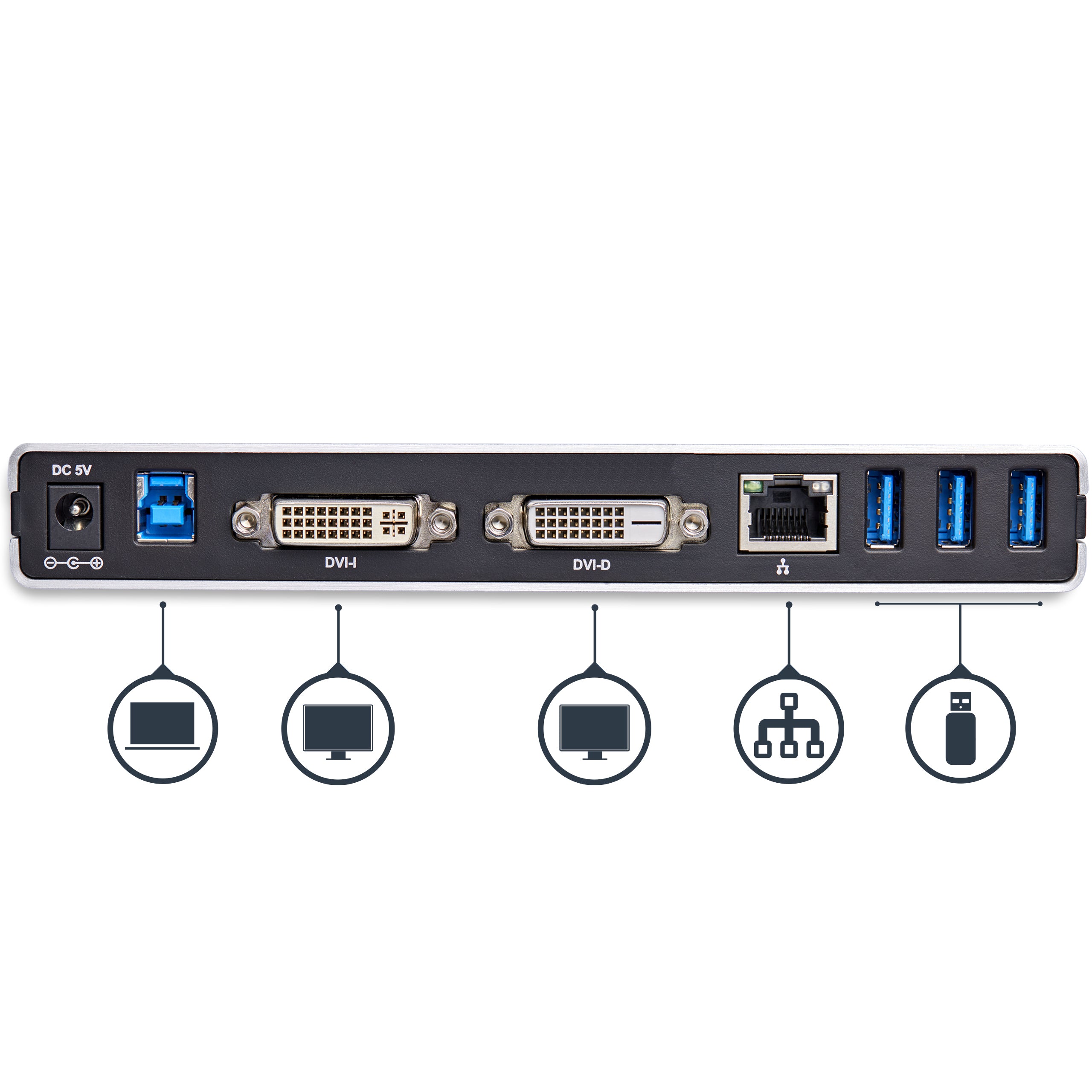

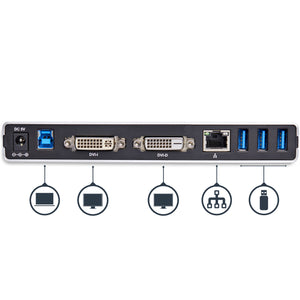

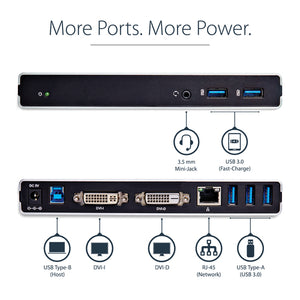

Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
DVI-I ports quantity
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog.
1
DVI-D ports quantity
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog.
1
Combo headphone/mic port
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Headphone connectivity
How headphones connect to a device e.g. wirelessly or via a cable and connector.
3.5 mm
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Wake-on-LAN ready
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Performance
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
5 Gbit/s
Maximum analog resolution
2048 x 1152 pixels
Product colour
The colour e.g. red, blue, green, black, white.
Black, Silver
LED indicators
Power
Charging function
UASP support
Rubber feet
Housing material
What the casing of the product is made of.
Aluminium, Plastic
Brand compatibility
What other brands this brand can be used with.
Any brand
Certification
CE, FCC, REACH
Power
Power source type
What the power source is.
AC
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
0.8 A
Output voltage
5 V
Output current
4 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
20 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility
Product can be used with Apple Mac software and/or hardware.
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%

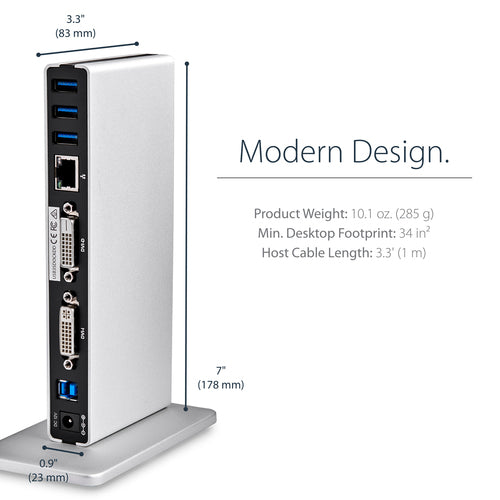

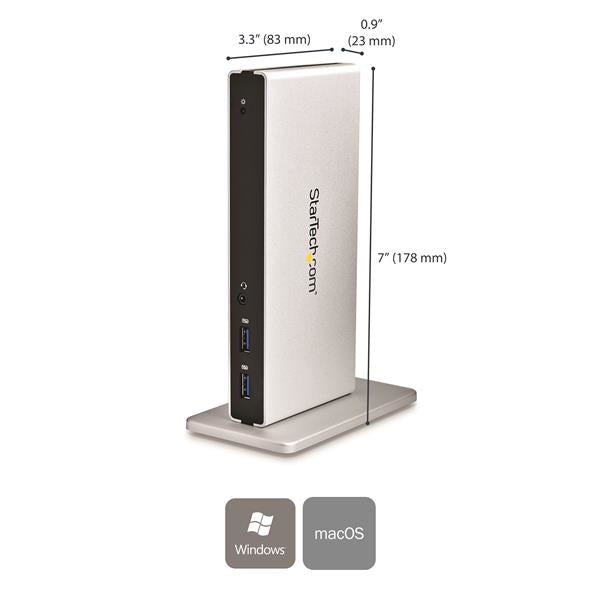

Weight & dimensions
Width
The measurement or extent of something from side to side.
23 mm
Depth
The distance from the front to the back of something.
83 mm
Height
The measurement of the product from head to foot or from base to top.
178 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
285 g
Packaging data
Package width
The distance from one side of the packaging to the other.
255 mm
Package depth
The distance from the front to the back of the packaging.
186 mm
Package height
The distance from the top to the bottom of the packaging.
95 mm
Package weight
Weight of the packaged product.
1.02 kg

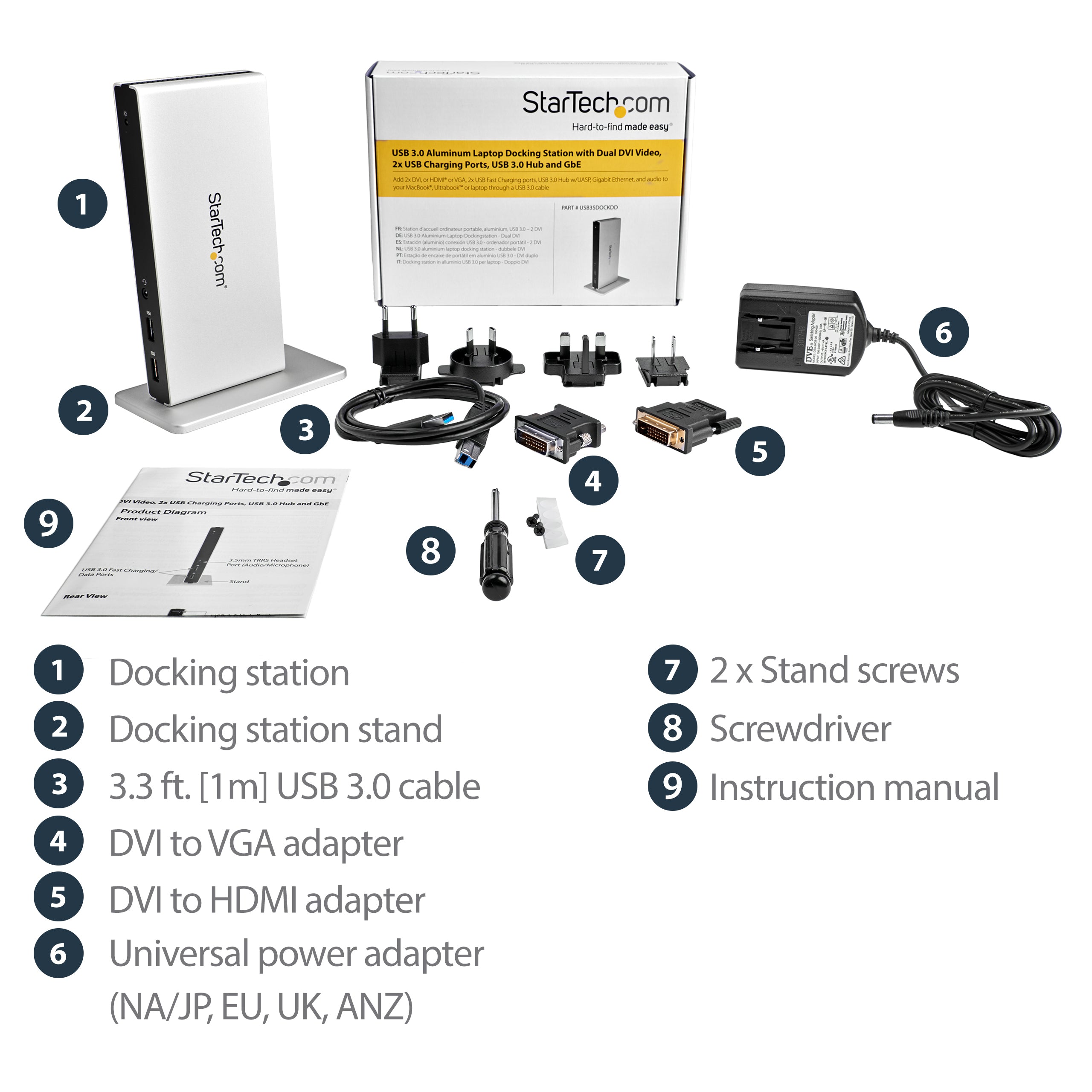

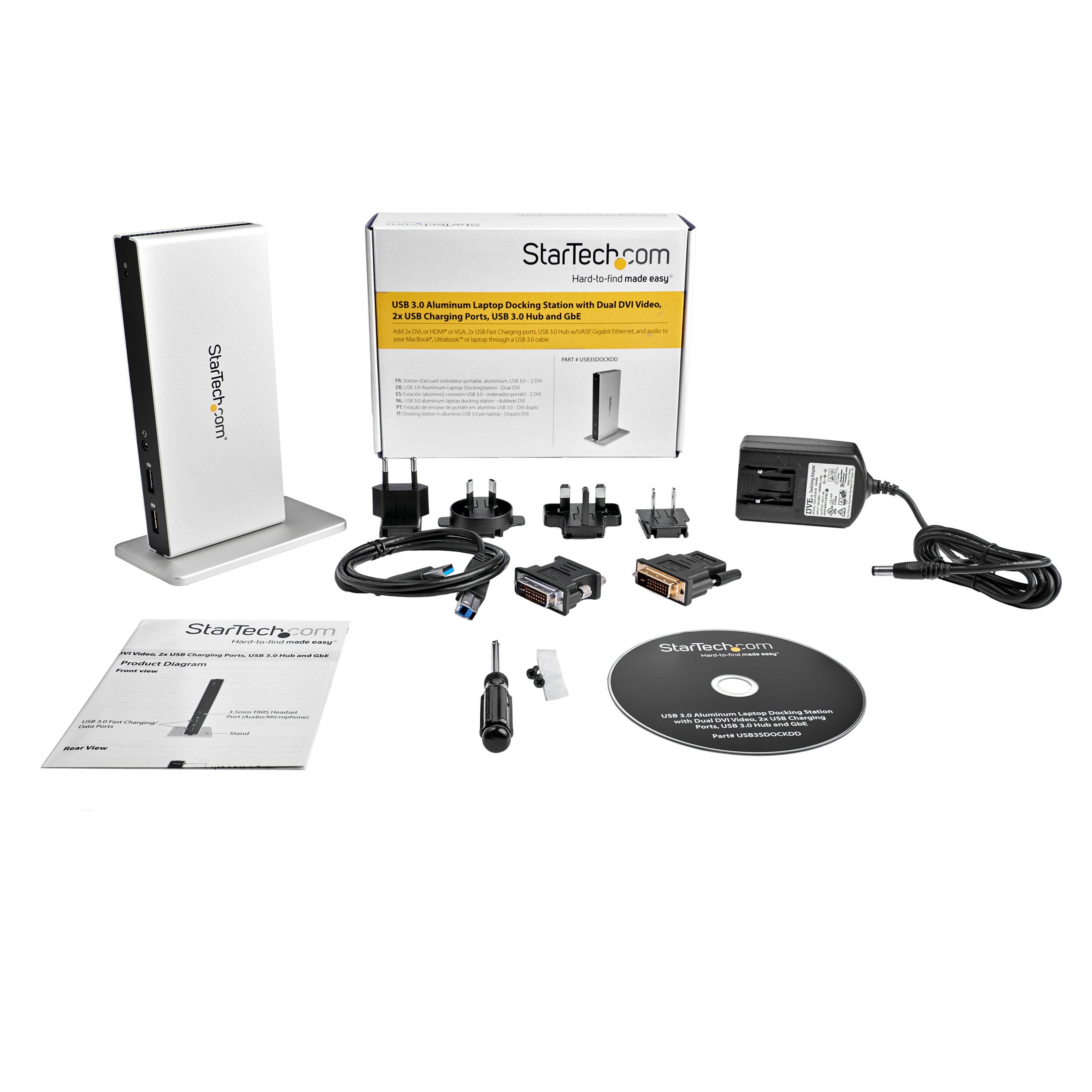

Packaging content
Cables included
USB
AC adapter included
Manual
Drivers included
Interface adapters included
DVI-I male - HDMI female, DVI-I male - VGA female
Stand included
Technical details
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
357 mm
Master (outer) case length
415 mm
Master (outer) case height
251 mm
Harmonized System (HS) code
84733020
Other features
Cable length
How long the cable is.
1 m
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
DisplayLink - DL-3900, Genesys Logic - GL3520
USB data transfer rates
12,480,5000 Mbit/s
