STARTECH .com PoE adapter Fast Ethernet, Gigabit Ethernet (AF221C-POE-INJECTOR)
- Regular price
- $103.95
- Sale price
- $103.95
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com AF221C-POE-INJECTOR PoE adapter Fast Ethernet, Gigabit Ethernet
Brand:StarTech.com
Product name:2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet
Product code:AF221C-POE-INJECTOR
EAN/UPC:
0065030900911
0065030900911, 065030900911
- TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
- NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV

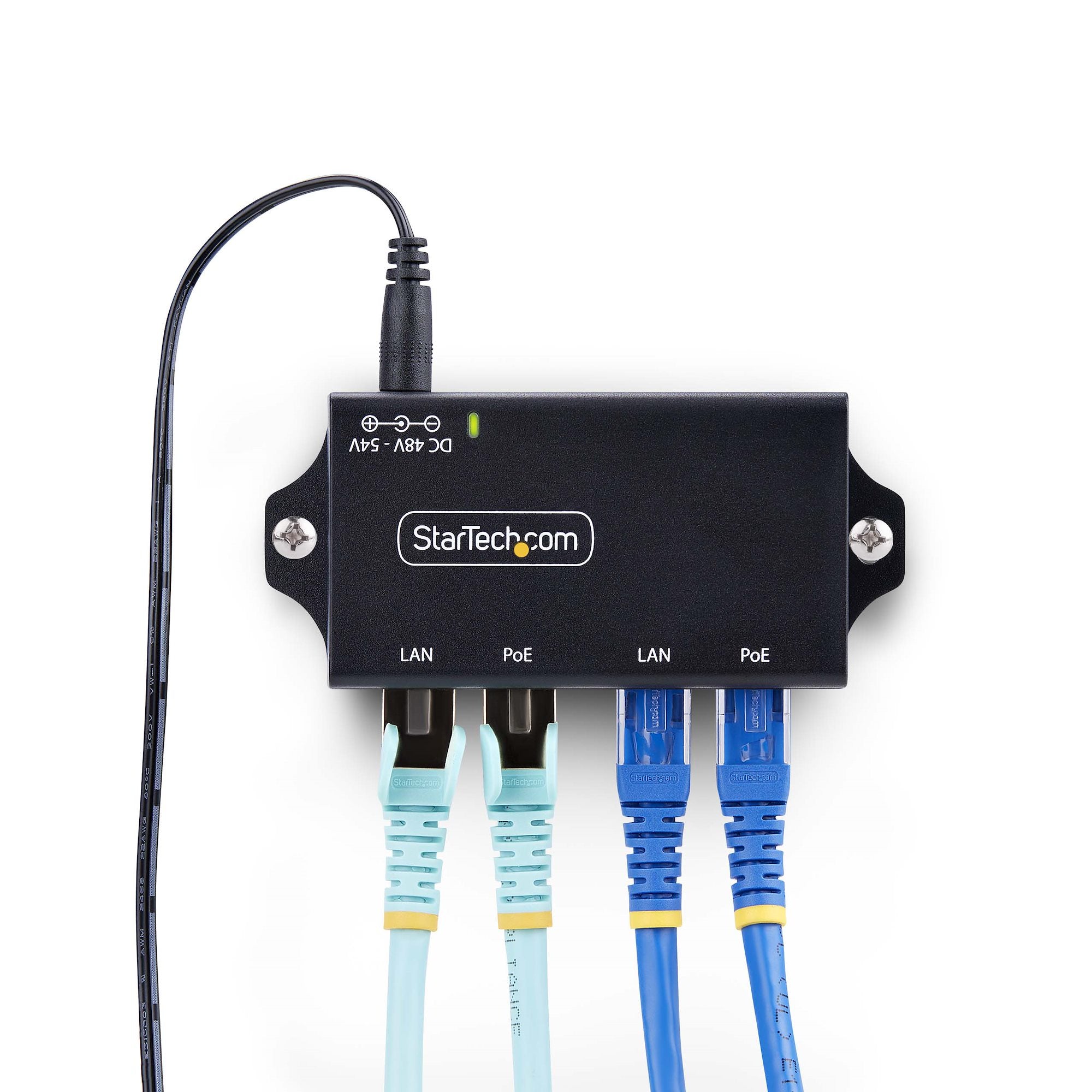

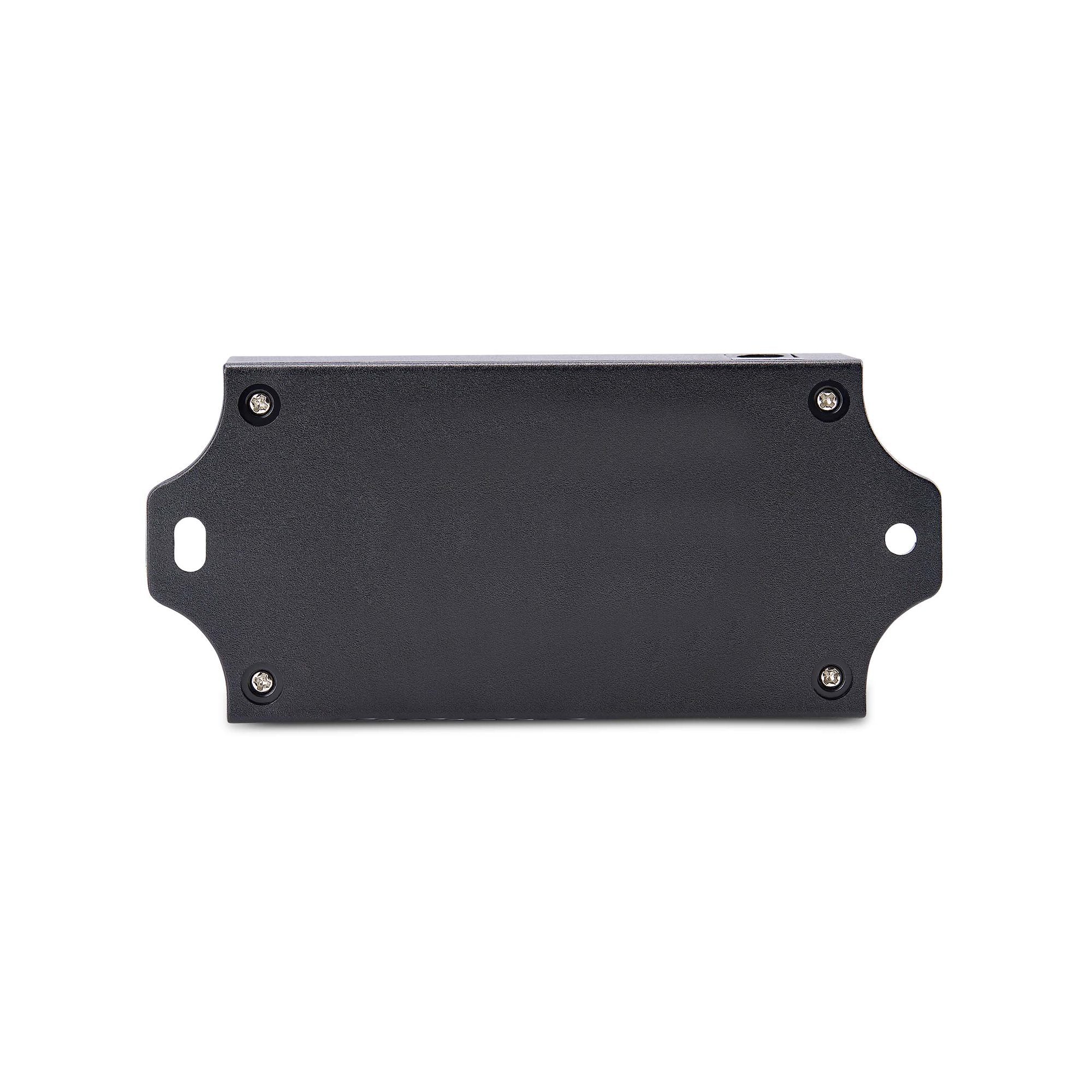

- HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
- APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet

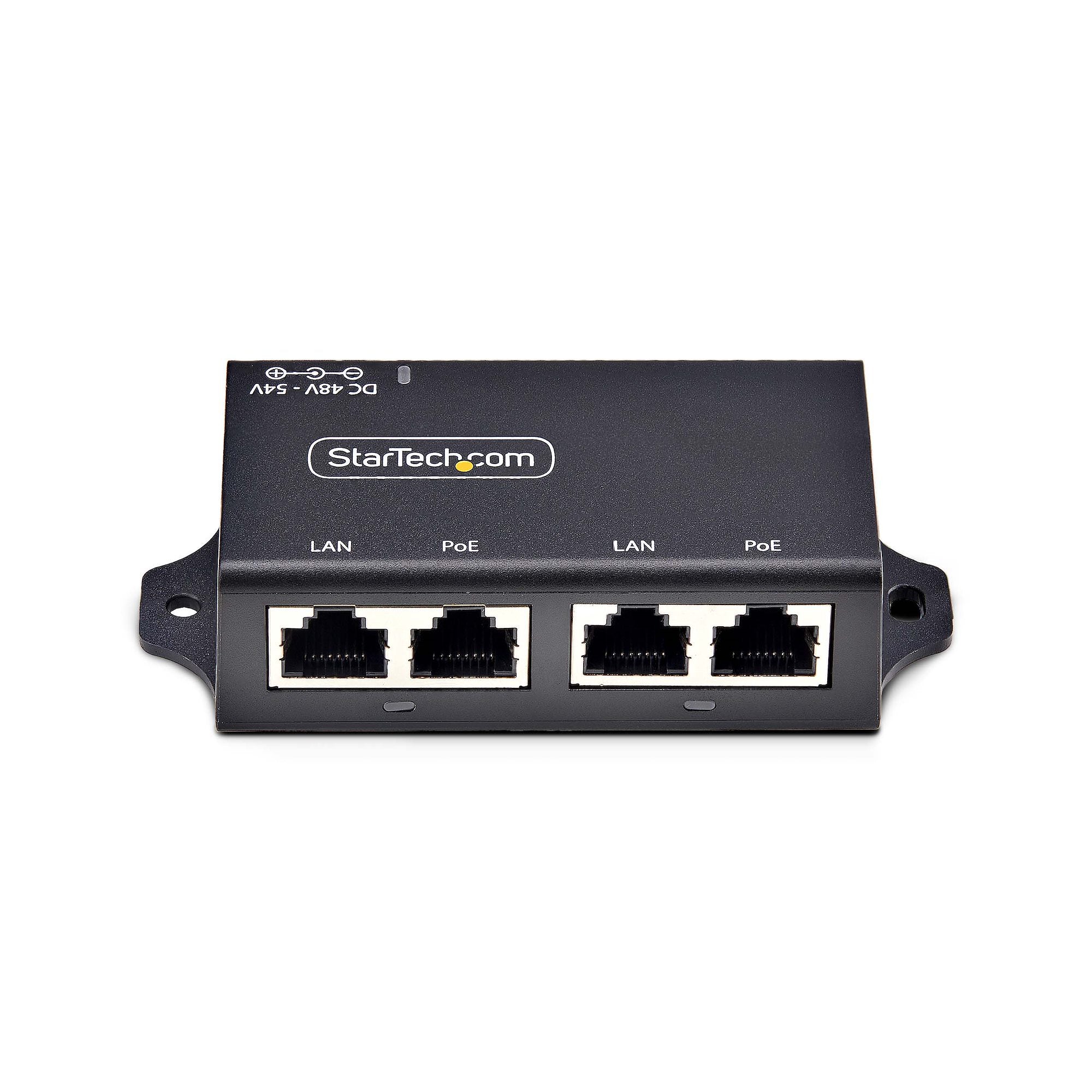

- TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch(82x25x46mm)
Description
Supply power and data to two PoE devices over standard Ethernet cabling
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
Specs
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Cabling technology
Type of cable technology performance.
10/100/1000
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Web-based management
Using a website/web application to manage something.
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
IC Plus - IP802AR
Features
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Plastic
Wall mountable
The product can be mounted on (attached to ) a wall.
Surge protection
Maximum operating distance
The maximum distance from which you can operate the device.
100 m
LED indicators
Yes
Jumbo frames support
Jumbo frames
9000
Auto-negotiation
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
4
RJ-45 input ports
2
RJ-45 output ports
2
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
Output power
The power that the device can produce.
30 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
AC adapter output voltage
52 V
Output current
1.25 A
Power consumption (max)
The maximum amount of power used by the device.
65 W
Total Power over Ethernet (PoE) budget
30 W
Surge protection voltage
2 kV
Power plug type
Type M
Suitable for use in country/location
United States
Certificates
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 60 °C
Operating relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
46 mm
Depth
The distance from the front to the back of something.
102 mm
Height
The measurement of the product from head to foot or from base to top.
25 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
60 g
Packaging content

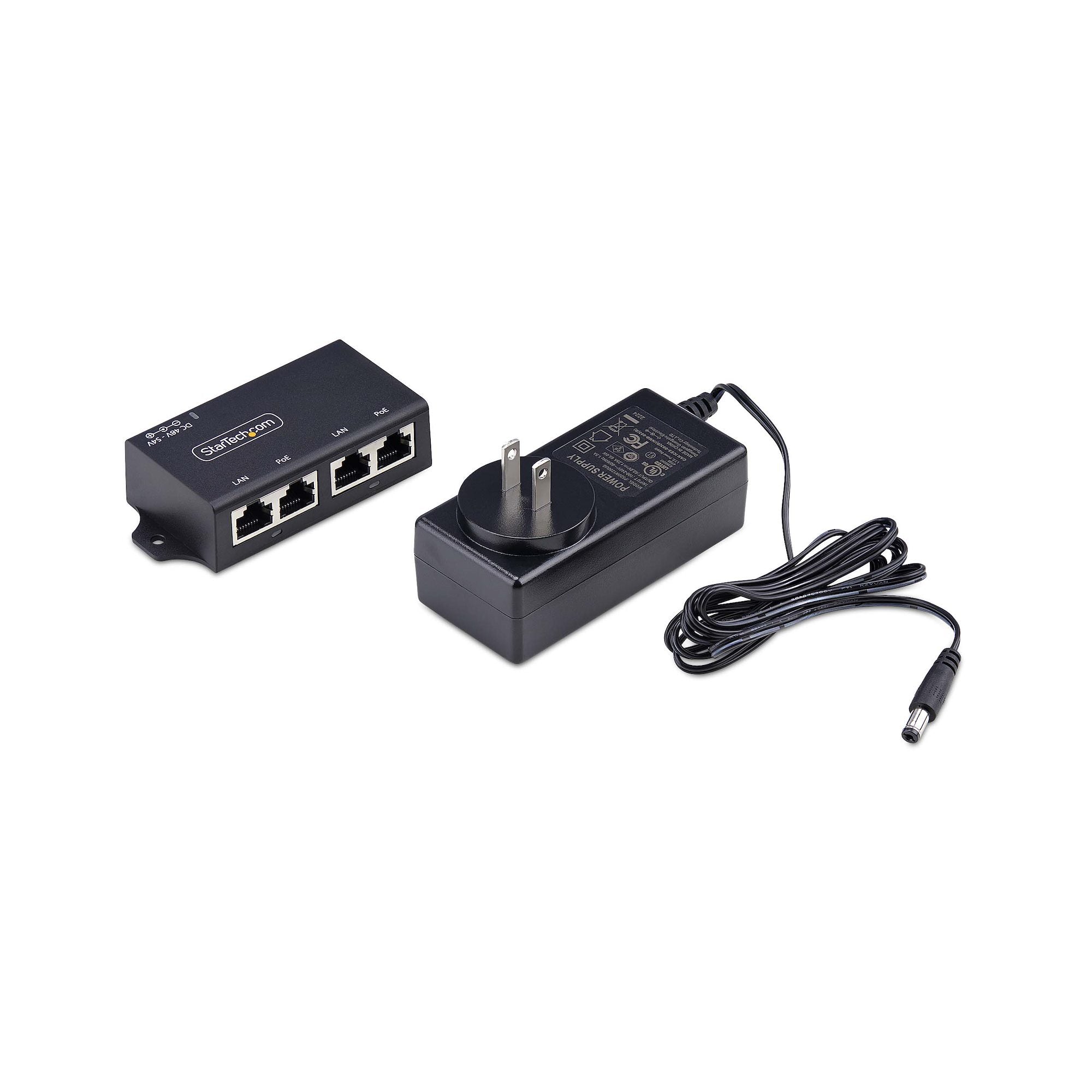

Quick installation guide
Packaging data
Package width
The distance from one side of the packaging to the other.
170 mm
Package depth
The distance from the front to the back of the packaging.
142 mm
Package height
The distance from the top to the bottom of the packaging.
30 mm
Package weight
Weight of the packaged product.
110 g
Logistics data
Master (outer) case width
605 mm
Master (outer) case length
325 mm
Master (outer) case height
385 mm
Products per master (outer) case
80 pc(s)
