STARTECH .com storage drive docking station USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B Black (SDOCKU313)
- Regular price
- $107.95
- Sale price
- $107.95
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com SDOCKU313 storage drive docking station USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B Black
Brand:StarTech.com
Product name:Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay
Product code:SDOCKU313
EAN/UPC:
0065030861656
0065030861656, 065030861656, 5054629804339, 5054242344182
- HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 2 (10 Gbps); Toolless design enables hot-swapping of idle drives
- DRIVE COMPATIBILITY: Supports a 2.5/3.5" SATA HDD/SSD of any capacity; 4Kn Compatible; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately
- PERFORMANCE: Get maximum performance from your SATA III drive over a 10 Gbps USB 3.2 host connection; Built-in SATA controller with upgradeable firmware; Backwards compatible with previous SATA & USB versions; No software / drivers required

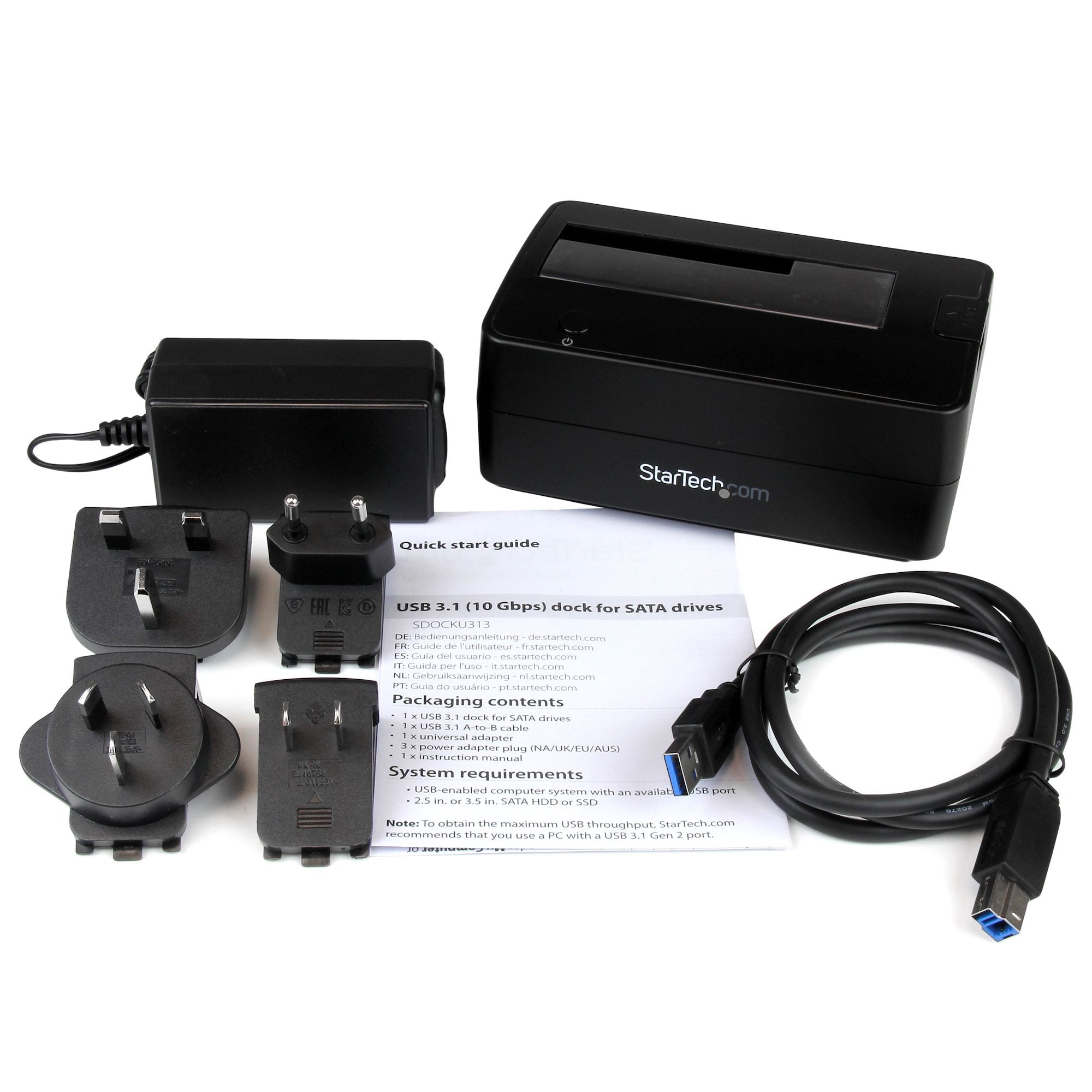

- SPECS: Single-Bay Hard Drive Dock; SATA I/II/III with TRIM; USB 3.2 Gen 2 (10 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay with Eject Button; Power and Activity LEDs; Includes 3ft (1m) USB-A Cable and Universal Power Adapter
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
Description
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA
Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
Hard drive
Storage media type
Type of storage medium, like flash, hard disk drive, etc.
HDD, SSD
Storage drive interface
Where the storage device links with other parts of the product, or an external device.
Serial ATA III
Storage drive sizes supported
The sizes of storage drives that can be used with the product.
2.5,3.5"
Number of storage drives supported
How many storage drives can be fit into the product at once.
1
Maximum storage capacity
The maximum amount of data that can be stored in the device.
6 TB
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Features
Product colour
The colour e.g. red, blue, green, black, white.
Black
Material
The material from which a thing is or can be made e.g. wood, plastic.
Plastic
Maximum data transfer rate
10 Gbit/s
LED indicators
Activity, Power
UASP support
Certification
CE, FCC, REACH
Cooling
Built-in fan
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
110 - 240 V
Input current
0.6 A
Output voltage
12 V
Output current
2 A
Power plug type
Type M
Weight & dimensions
Width
The measurement or extent of something from side to side.
92.7 mm
Depth
The distance from the front to the back of something.
145 mm
Height
The measurement of the product from head to foot or from base to top.
64 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
392 g
Packaging data
Package width
The distance from one side of the packaging to the other.
163 mm
Package depth
The distance from the front to the back of the packaging.
91 mm
Package height
The distance from the top to the bottom of the packaging.
171 mm
Package weight
Weight of the packaged product.
758 g
Packaging content
AC adapter included
Cables included
USB
Included power plug types
AU, EU, NA, UK
Quick installation guide
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 35 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Other features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASMedia - ASM1351
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
385 mm
Master (outer) case length
475 mm
Master (outer) case height
185 mm
Products per master (outer) case
10 pc(s)
