STARTECH .com USB graphics adapter 4096 x 2160 pixels Grey (MST14CD122DP)
- Regular price
- $64.95
- Sale price
- $64.95
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

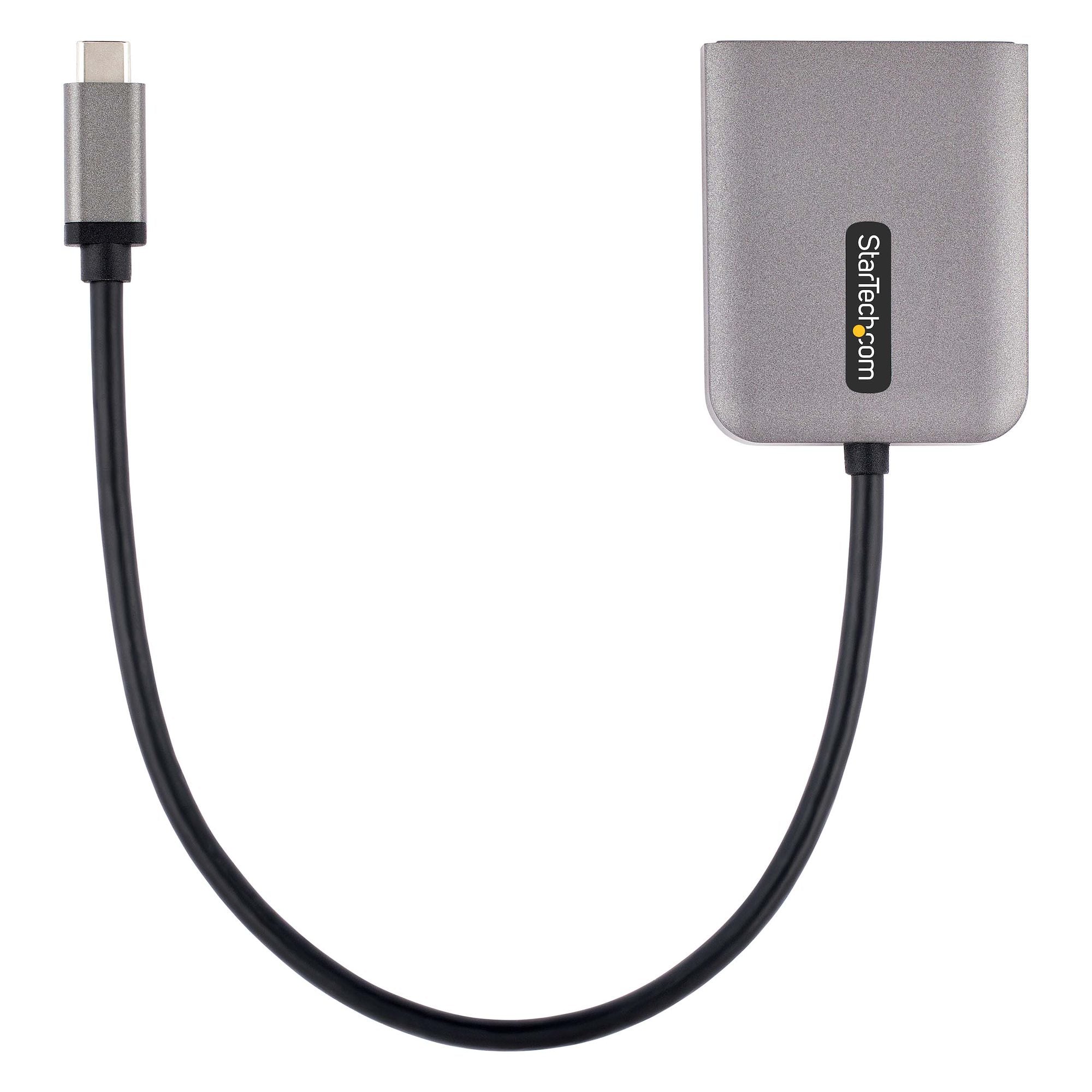

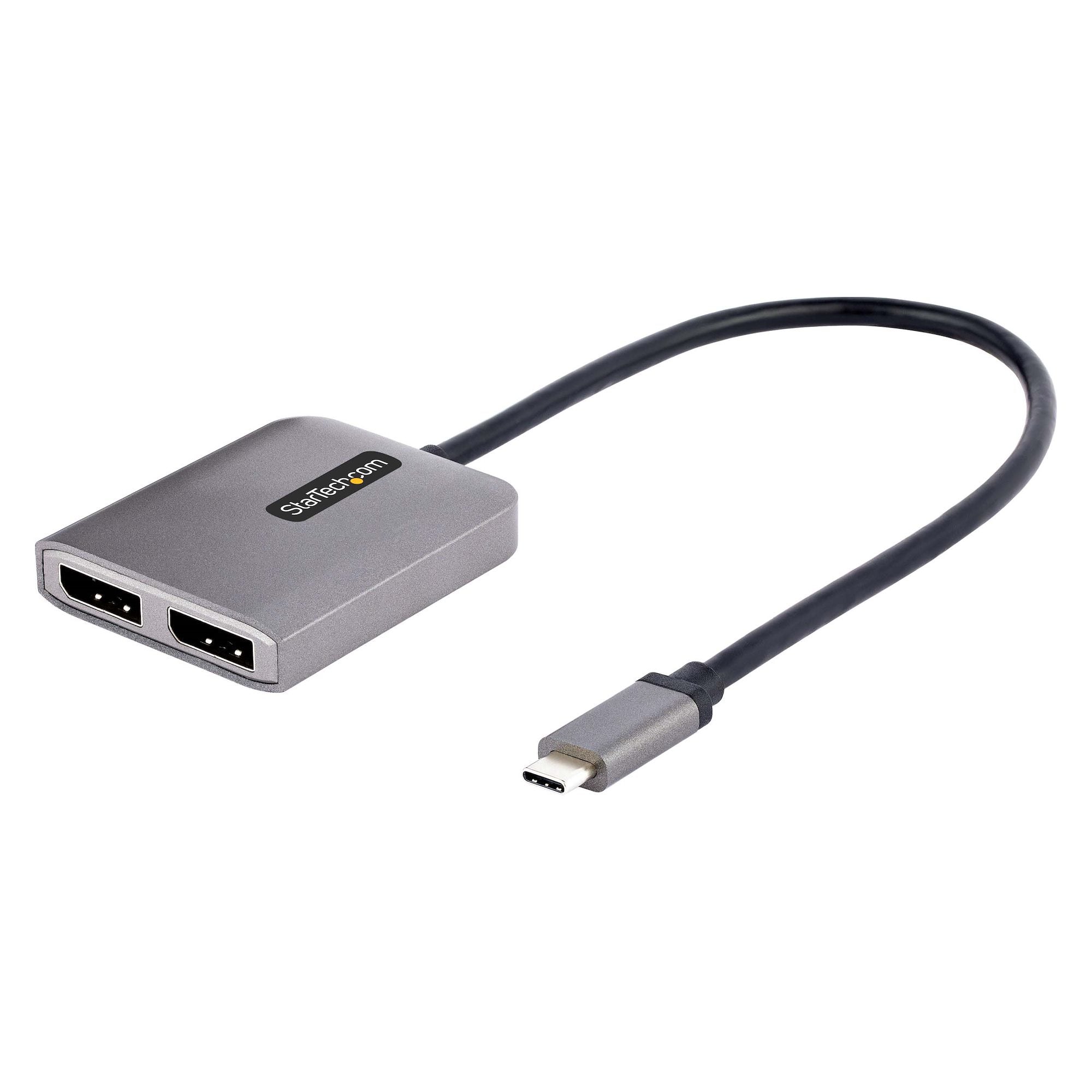

StarTech.com MST14CD122DP USB graphics adapter 4096 x 2160 pixels Grey
Brand:StarTech.com
Product name:USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only
Product code:MST14CD122DP
EAN/UPC:
0065030884372
0065030884372, 065030884372

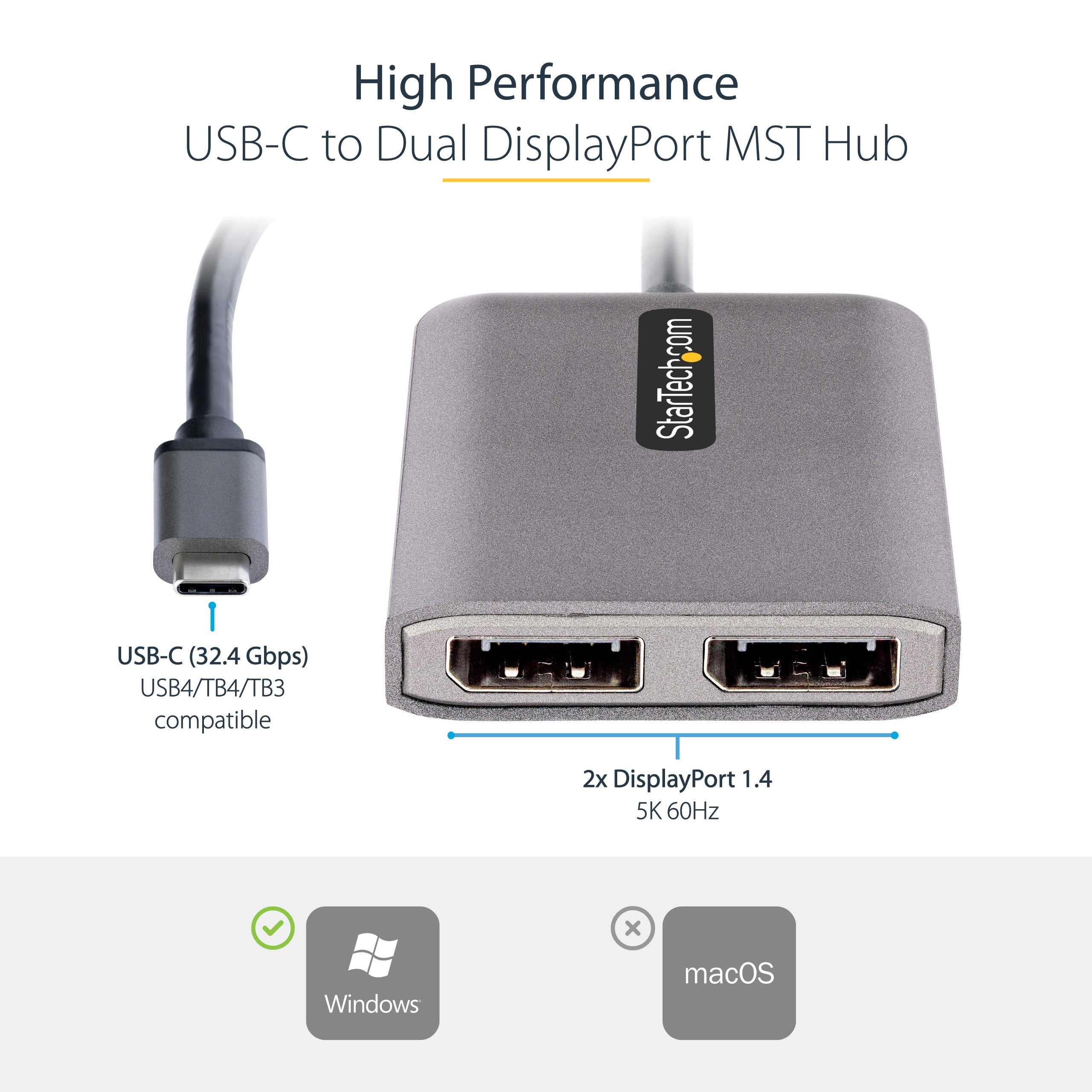

- MULTI-MONITOR CONFIGURATION: USB Type-C to Dual DisplayPort MST Hub/Splitter drives up to two 5K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Dual 5K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU

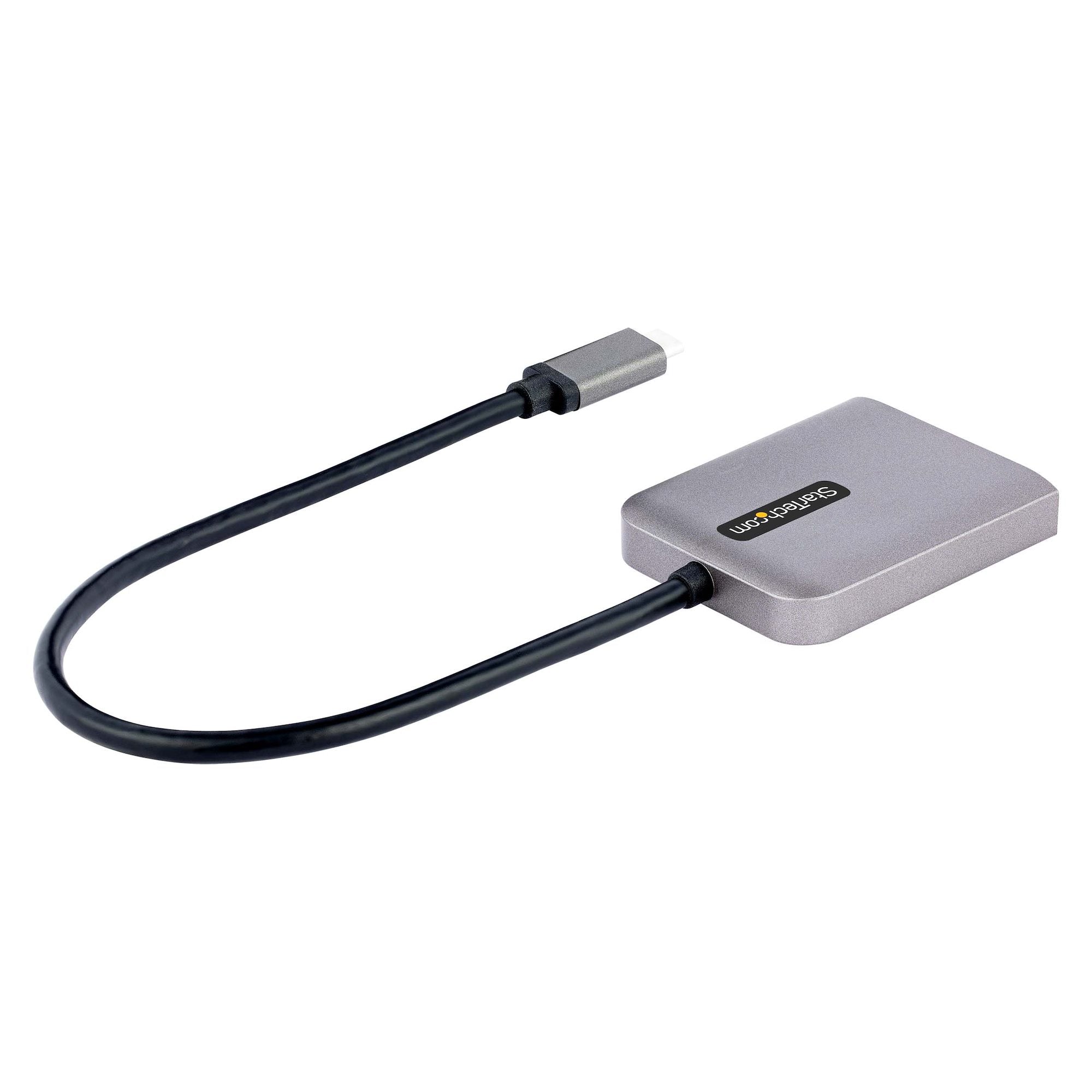

- EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual DisplayPort Adapter
Description
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.

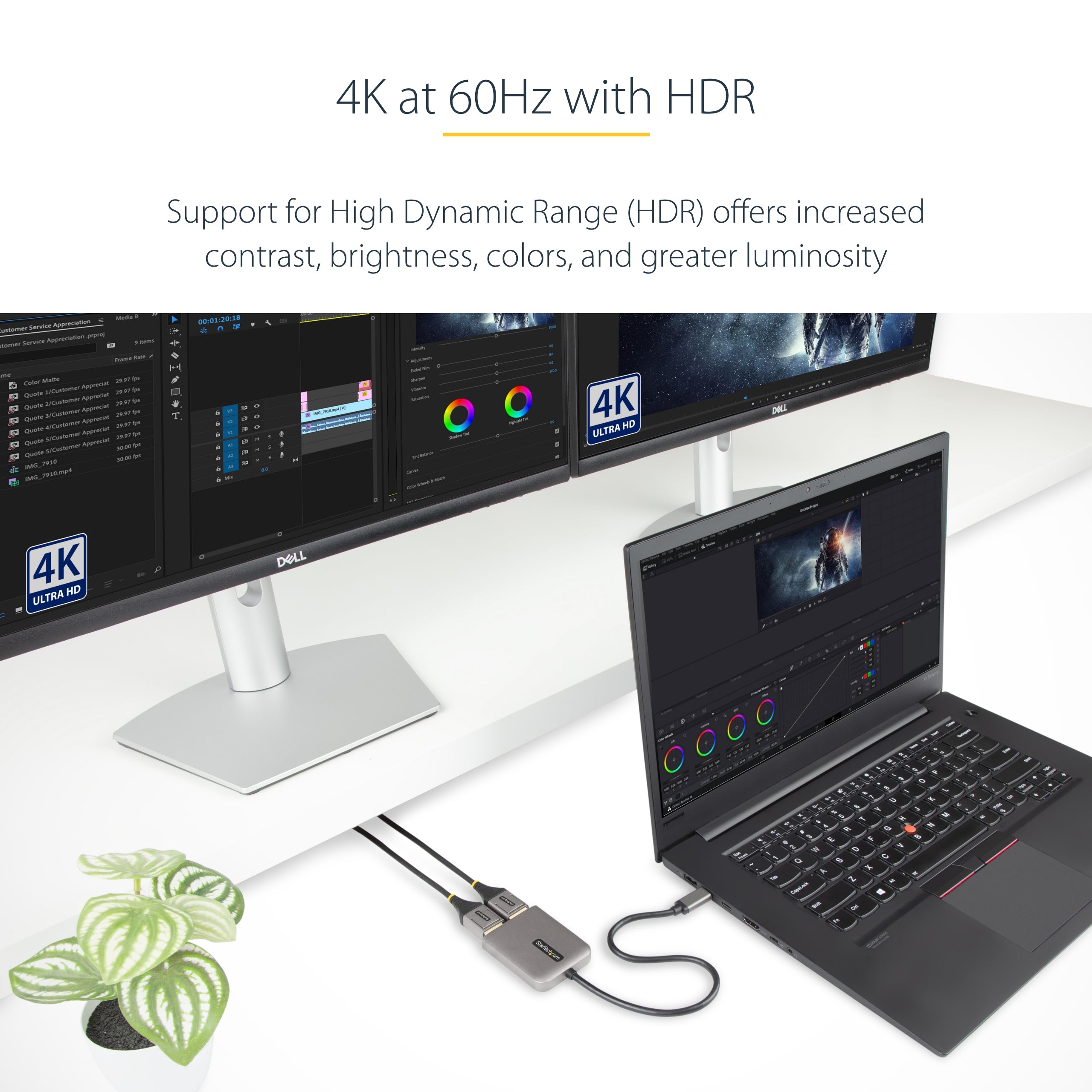

4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution
Output 1
Maximum Resolution
Output 2
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8th - 10th Gen Processors & Later

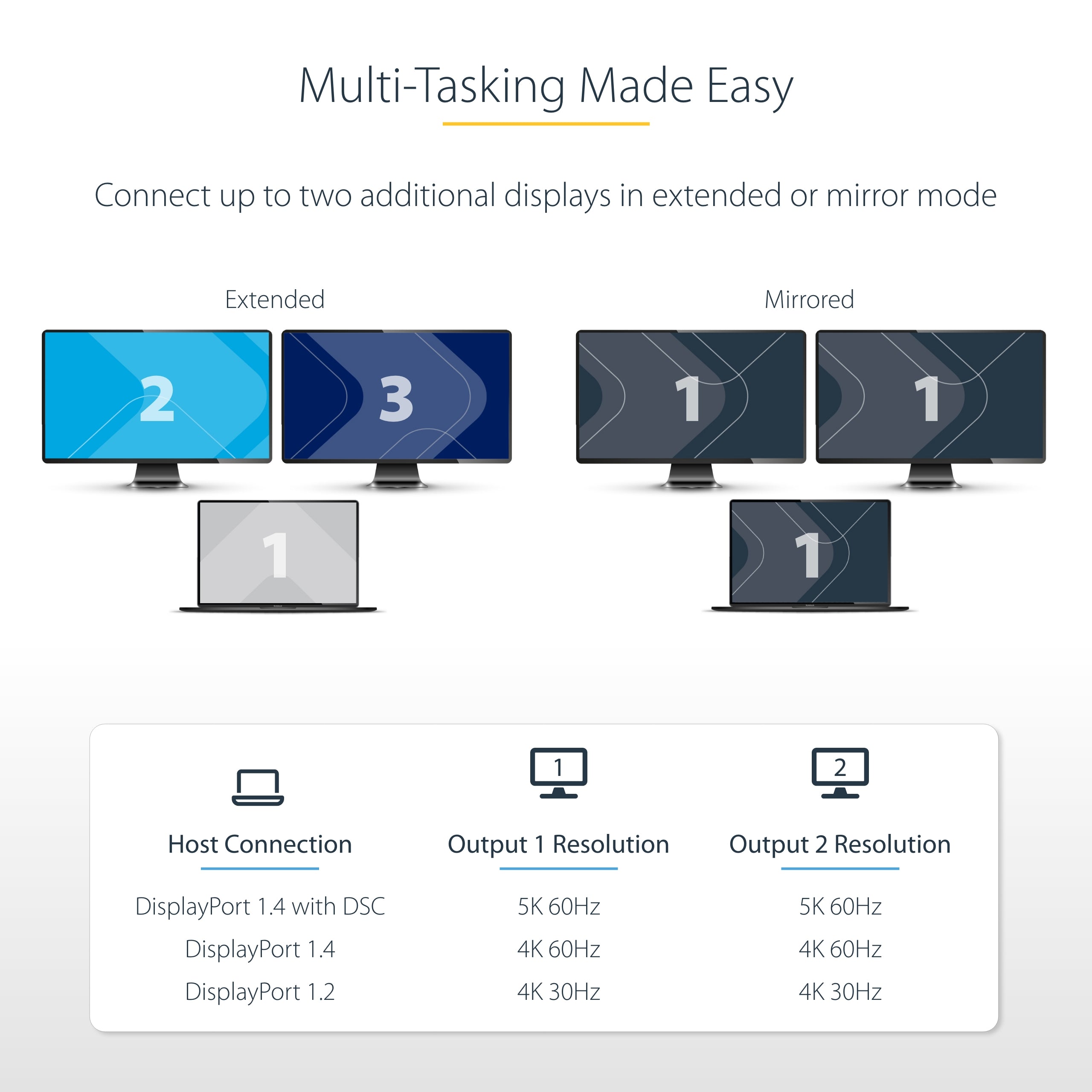

Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.

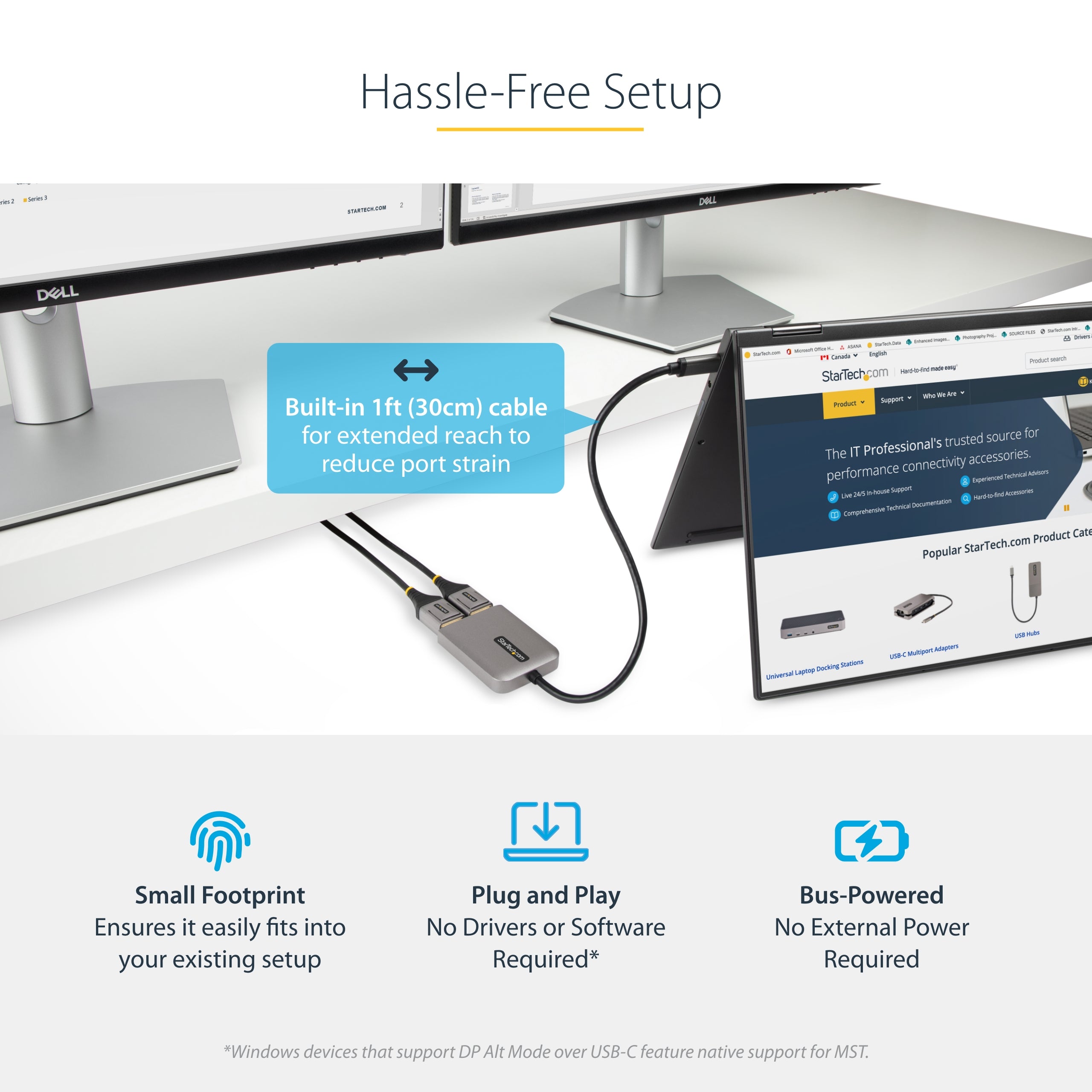

Hassle-Free Setup
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution
Output 1
Maximum Resolution
Output 2
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8th - 10th Gen Processors & Later
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
Specs
Performance

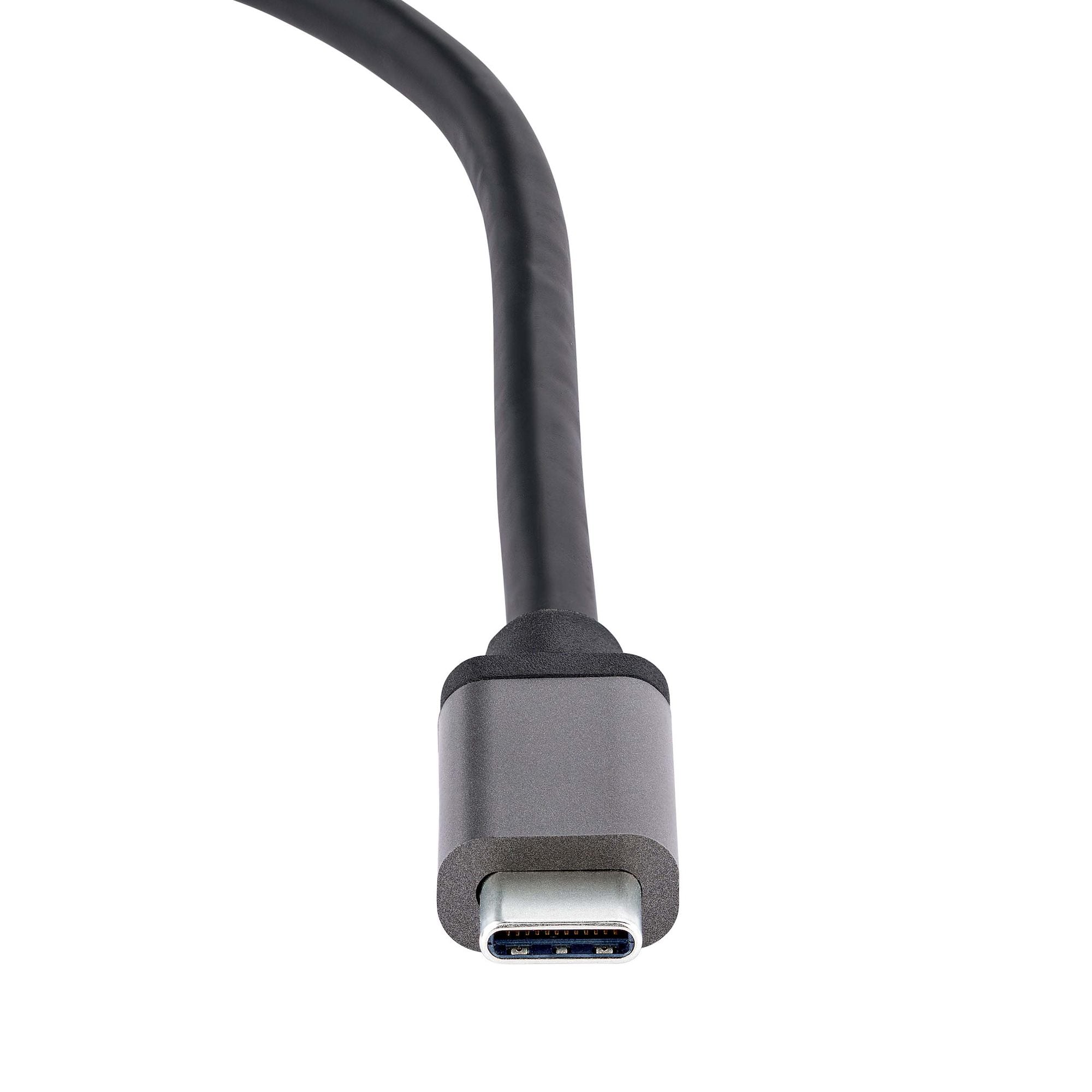

USB connector type
The type of USB connector/port that this product has.
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
DVI output
High Dynamic Range (HDR) supported
HDMI output
The device features an HDMI output.
DisplayPort output
The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.
Number of displays supported
The number of displays that can be used with this product.
2
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
2
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version
2.2
DisplayPort version
1.4
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
4096 x 2160 pixels
Refresh rate at maximum resolution
60 Hz
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
2.0 channels
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Synaptics - VMM5220, VIA/VLI - VL103
Design
Product colour
The colour e.g. red, blue, green, black, white.
Grey
Housing material
What the casing of the product is made of.
Plastic
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Weight & dimensions

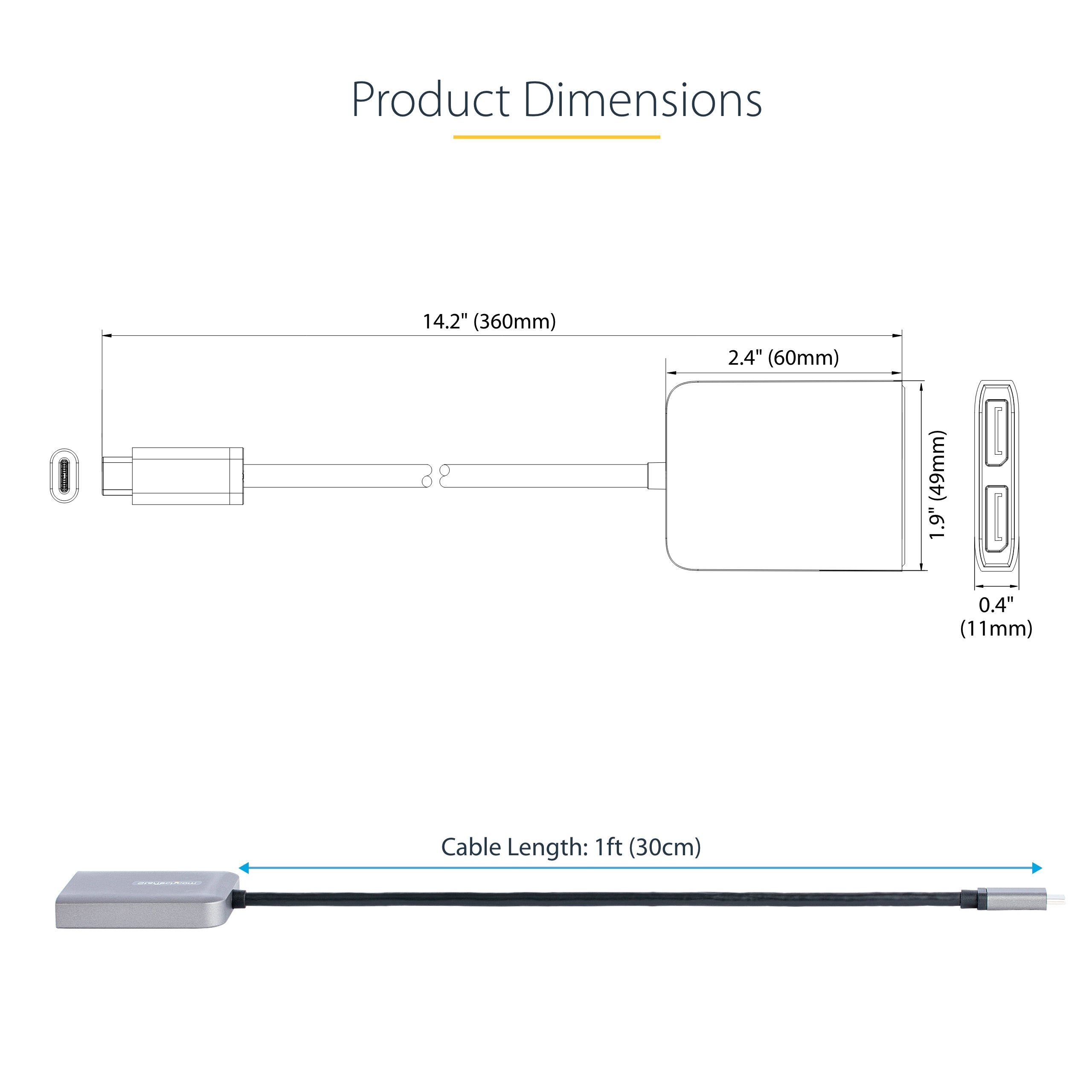

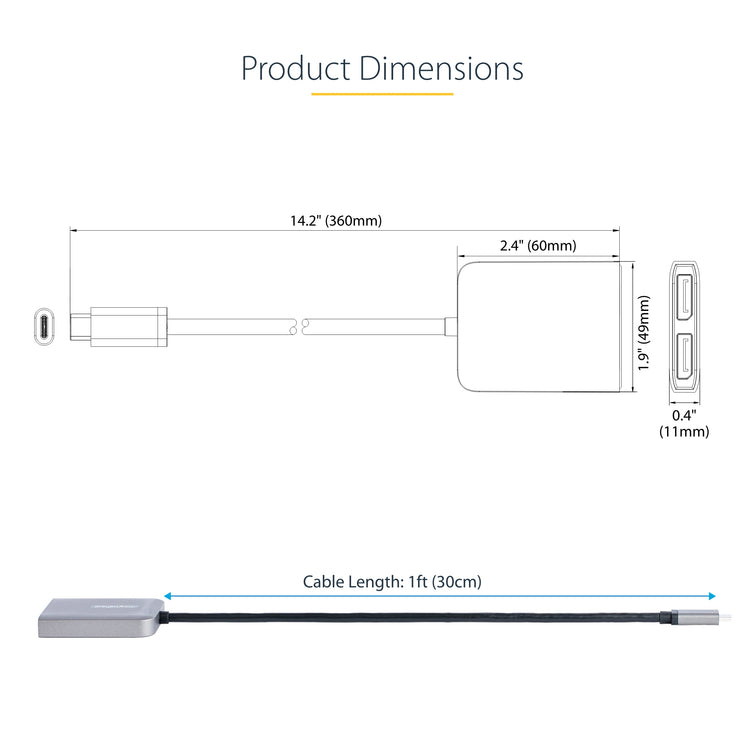

USB cable length
0.3 m
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
142 mm
Package depth
The distance from the front to the back of the packaging.
170 mm
Package height
The distance from the top to the bottom of the packaging.
30 mm
Package weight
Weight of the packaged product.
108.8 g
Technical details
Sustainability compliance
Compliance certificates
CE, RoHS
Logistics data
Products per master (outer) case
70 pc(s)
Master (outer) case width
473 mm
Master (outer) case length
331 mm
Master (outer) case height
440 mm
