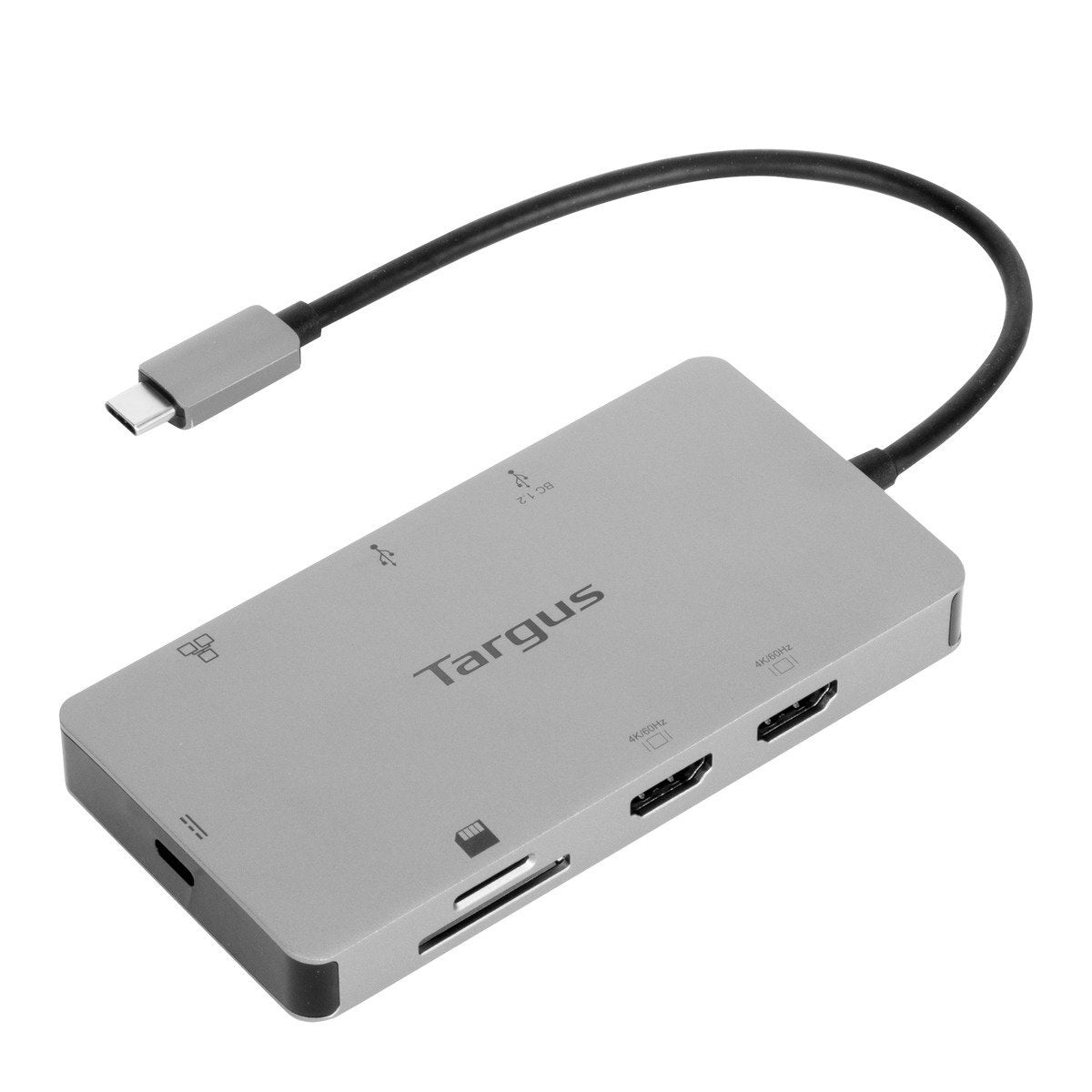

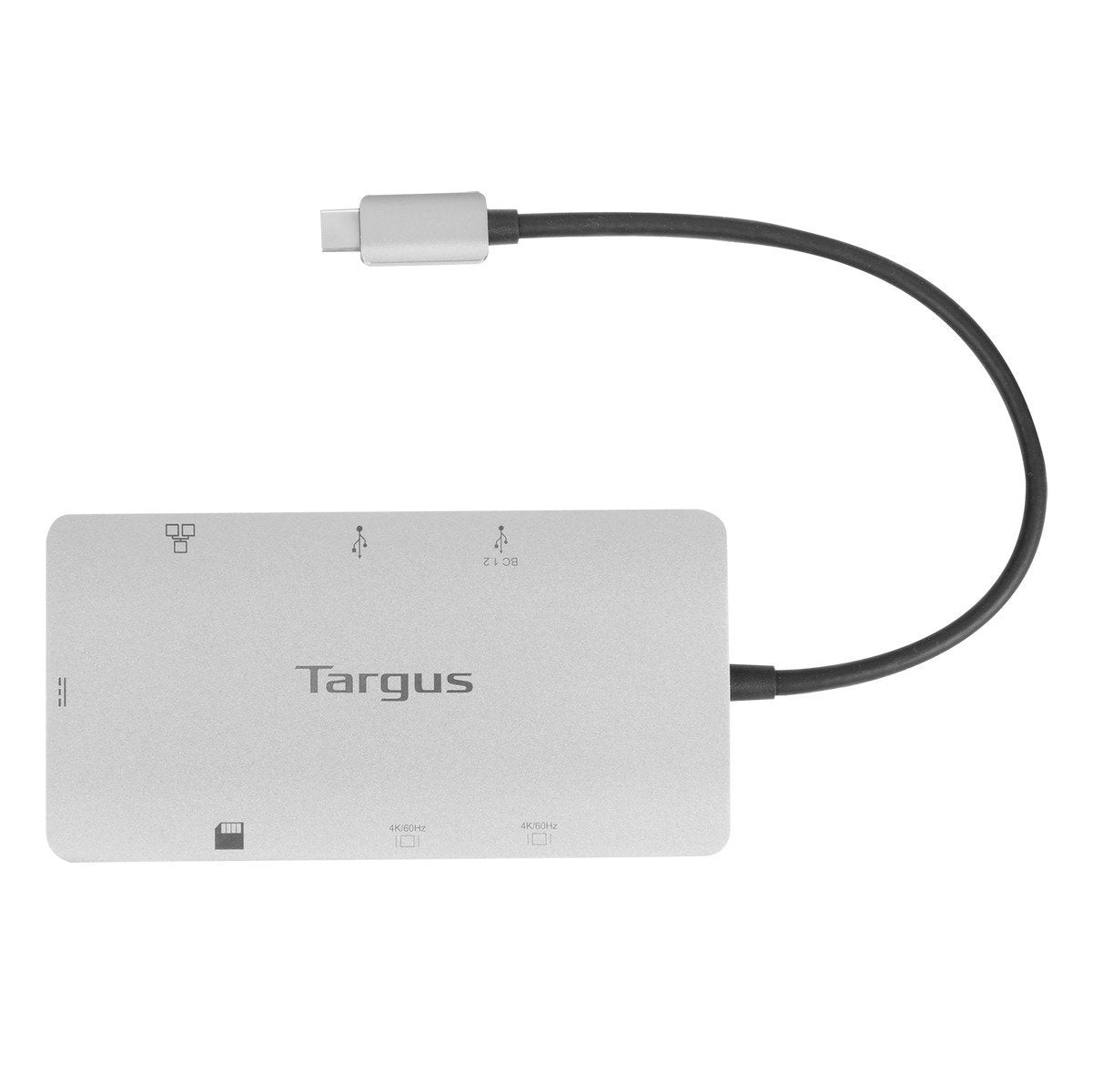

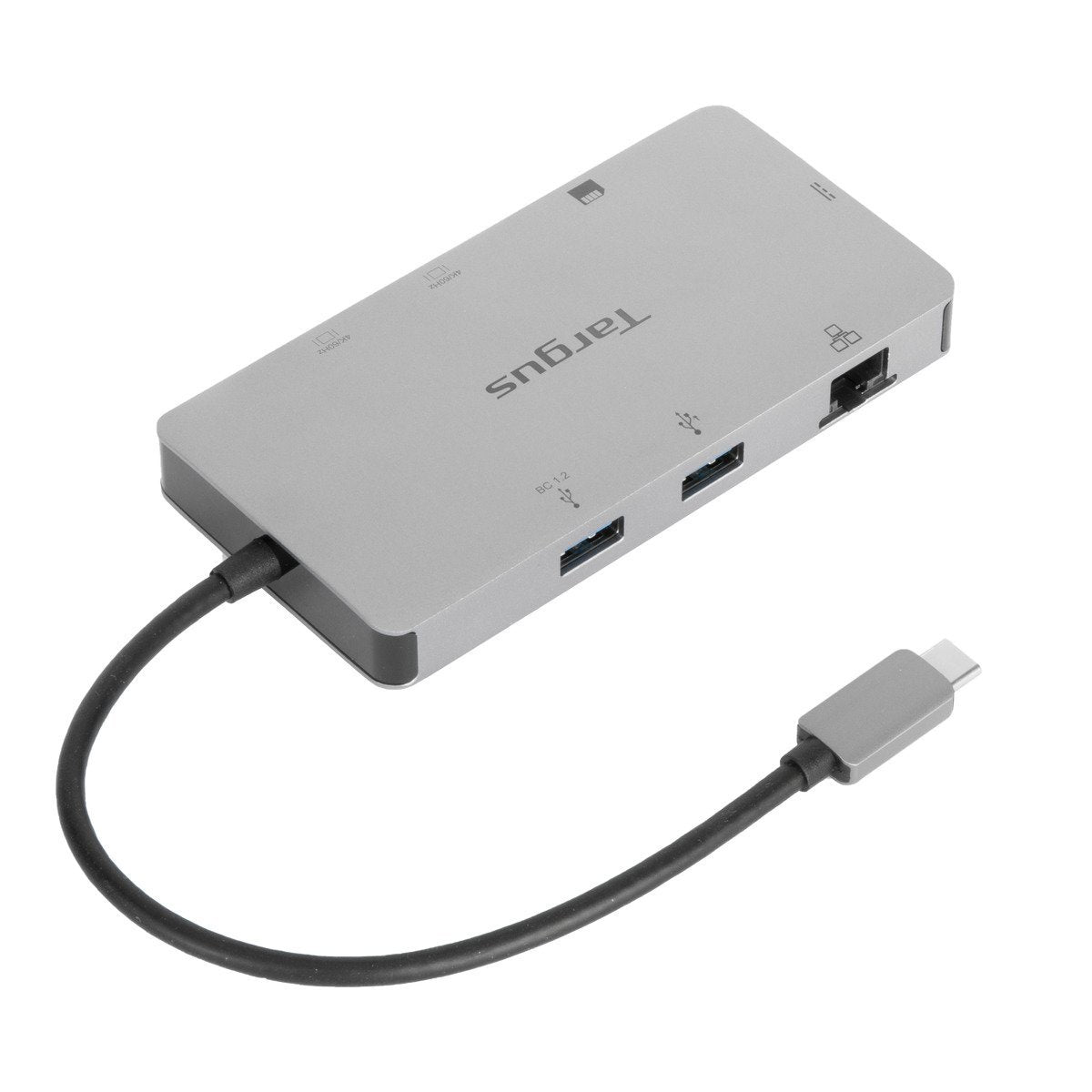

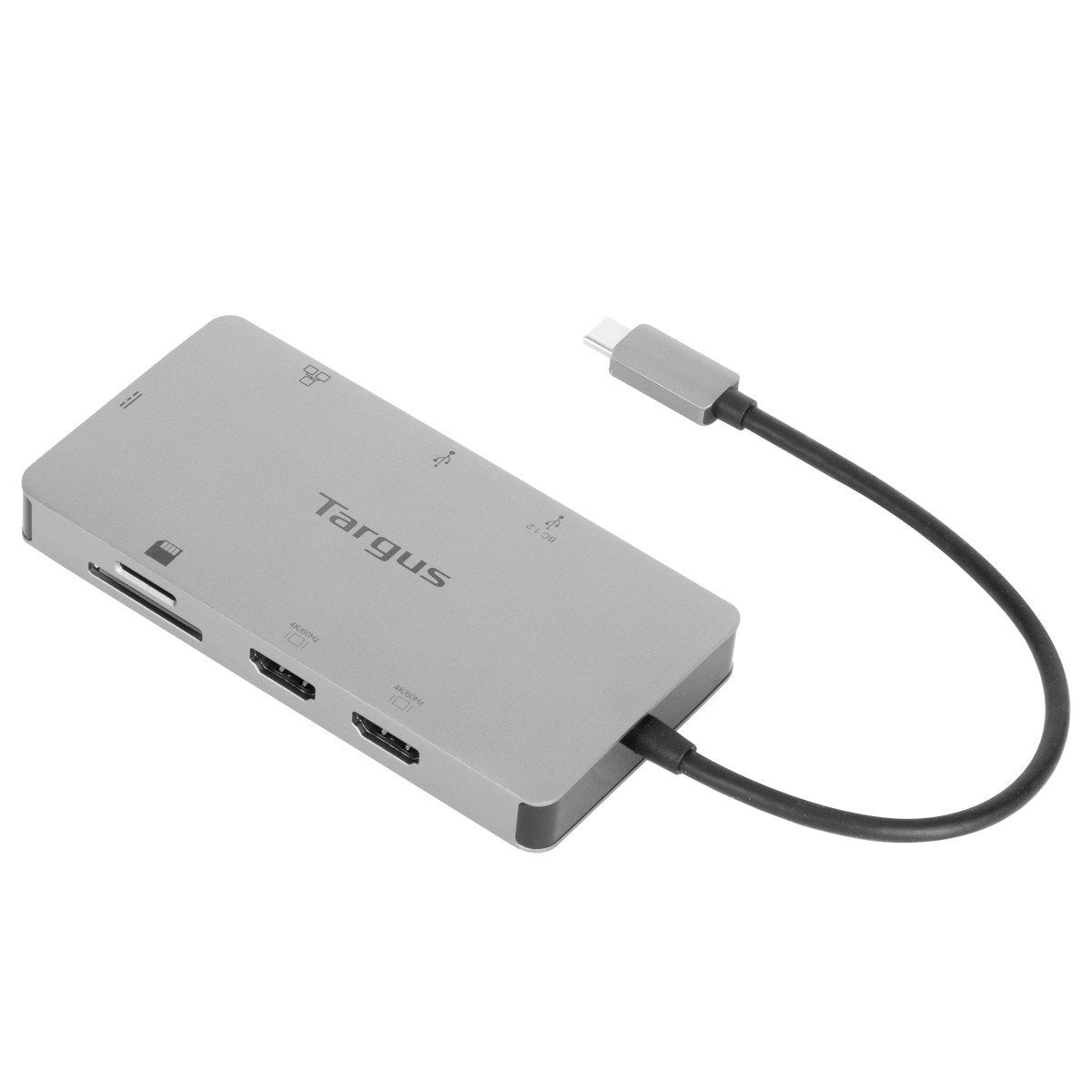

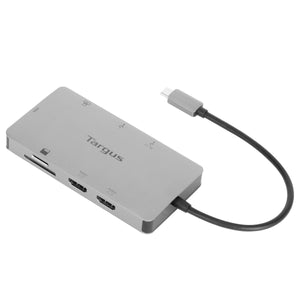

Targus DOCK423TT laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Silver
- Regular price
- $108.95
- Sale price
- $108.95
- Regular price
-
Free shipping
Couldn't load pickup availability
Targus DOCK423TT laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Silver
Brand:Targus
Product name:DOCK423TT
Product code:DOCK423TT
EAN/UPC:
0092636354480
0092636354480, 092636354480

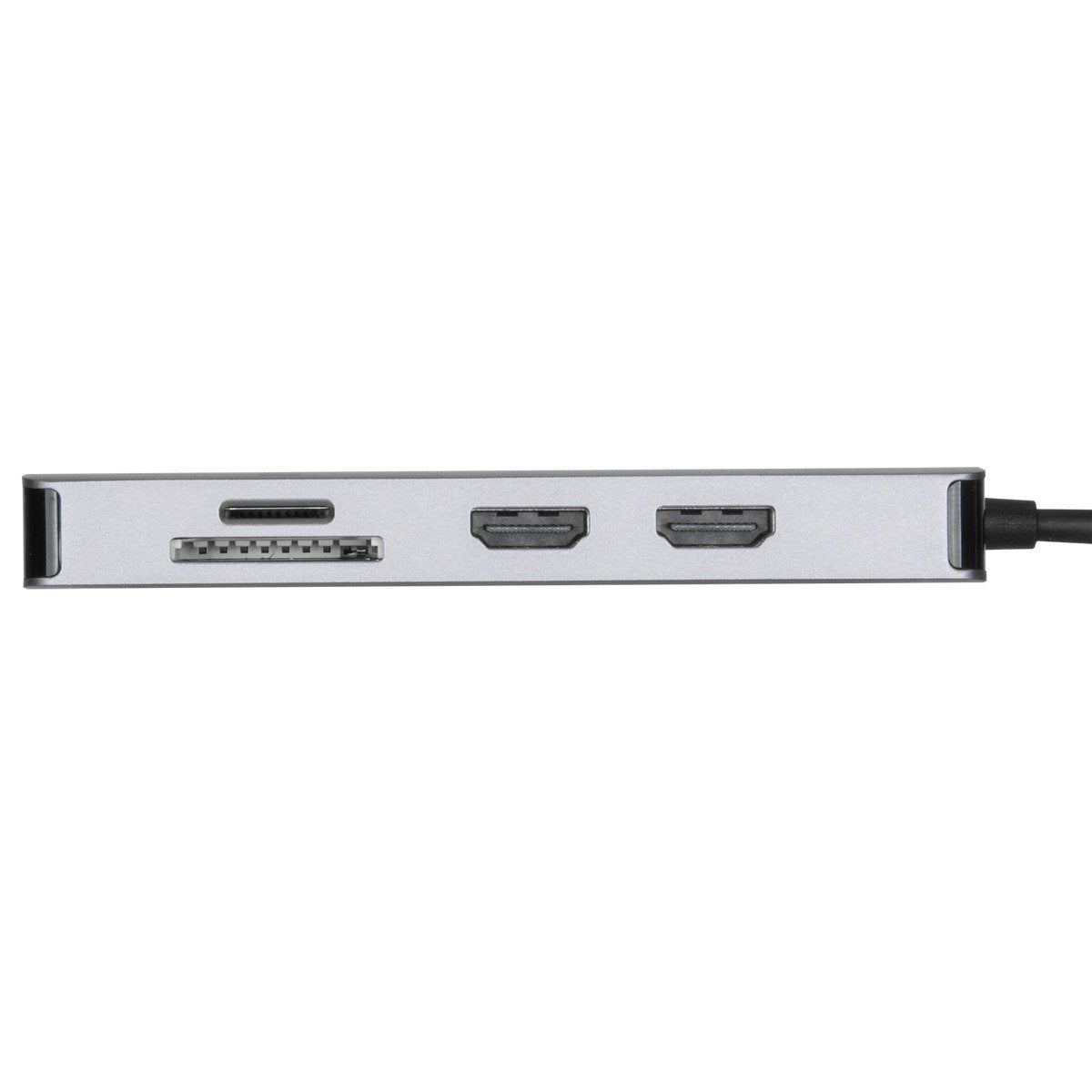

- Supports up to dual 4K UHD 60Hz monitors via two HDMI 2.0 ports

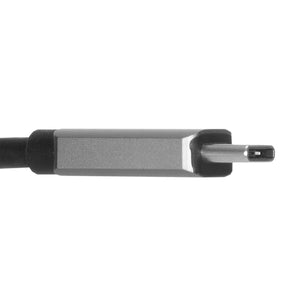

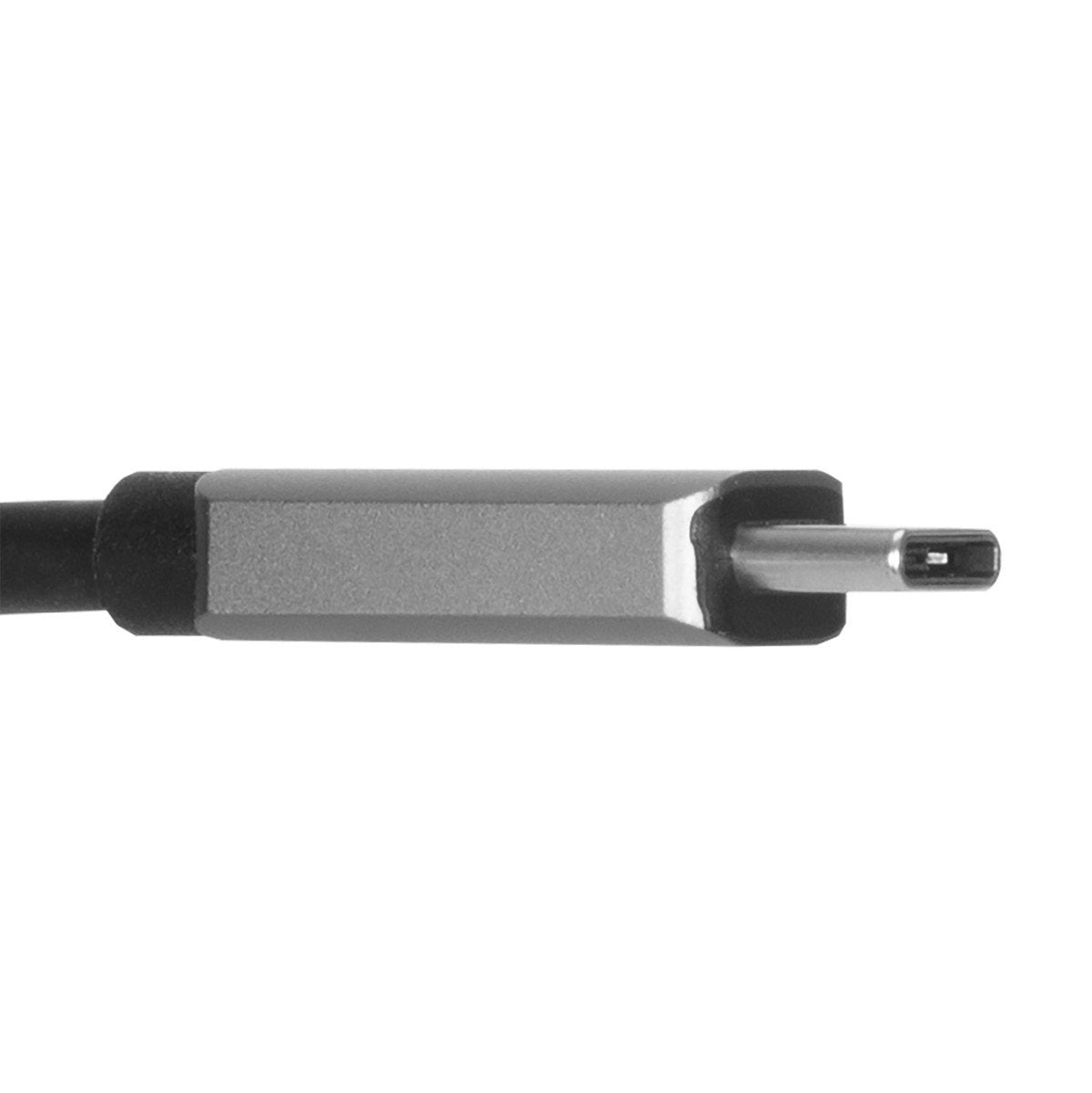

- USB-C Alt. Mode 7-inch host cable supports PD Pass-Thru Fast Role Swap up to 100W

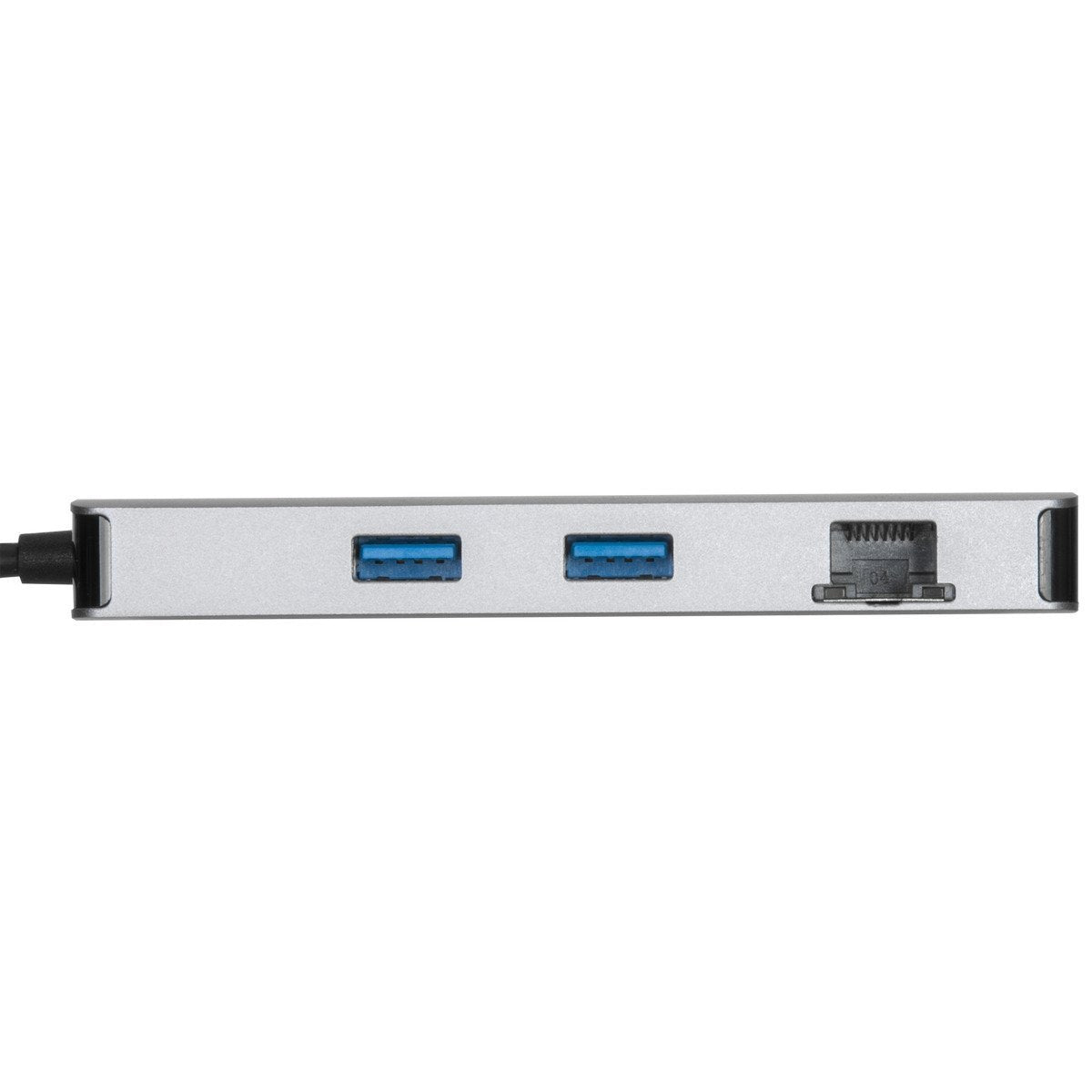

- 2 USB 3.2 Gen 1 Type-A ports (1 fast charging)
- 1 SD and 1 Micro SD slots supporting Secure Digital v3.0 UHS-I
- 1 Gigabit Ethernet port
- High Dynamic Range (HDR) capable
- Windows, macOS, ChromeOS, iPadOS, Linux, Samsung DeX compatible
Description
Turn your laptop into a dual video workstation with the compact USB-C Alt. Mode Dual HDMI 4K Docking Station with 100W PD Pass-Thru. Connect your USB-C-enabled devices to two HDMI monitors, while also connecting to a Gigabit Ethernet network, and plugging in your key peripherals — like mice, keyboards, flash drives, or hard drives — into the USB-A ports.
Plus, access your data with the SD and Micro SD card reader/writer. You can even keep your laptop charged and powered by connecting the laptop USB-C power adapter to the USB-C port on the dock. This dock also provides transfer speeds up to 5Gbps per port. It supports up to 100W (20V/5A) charging max. Compact and lightweight, it’s easy to take it along with you anywhere you go.
Plus, access your data with the SD and Micro SD card reader/writer. You can even keep your laptop charged and powered by connecting the laptop USB-C power adapter to the USB-C port on the dock. This dock also provides transfer speeds up to 5Gbps per port. It supports up to 100W (20V/5A) charging max. Compact and lightweight, it’s easy to take it along with you anywhere you go.
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
HDMI version
2.0
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
Microphone in
The socket where a microphone is connected to the device.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
1000 Mbit/s
Performance
Colour name
Silver
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards
Types of memory cards which can be used with this product.
MicroSD (TransFlash), SD
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
5 Gbit/s
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Product colour
The colour e.g. red, blue, green, black, white.
Silver
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Charging function
Compatibility
The other products, software and hardware this product can be used with.
USB-C, DP Alt Mode, TB3 Compatible
Power
Power source type
What the power source is.
USB
Power connector

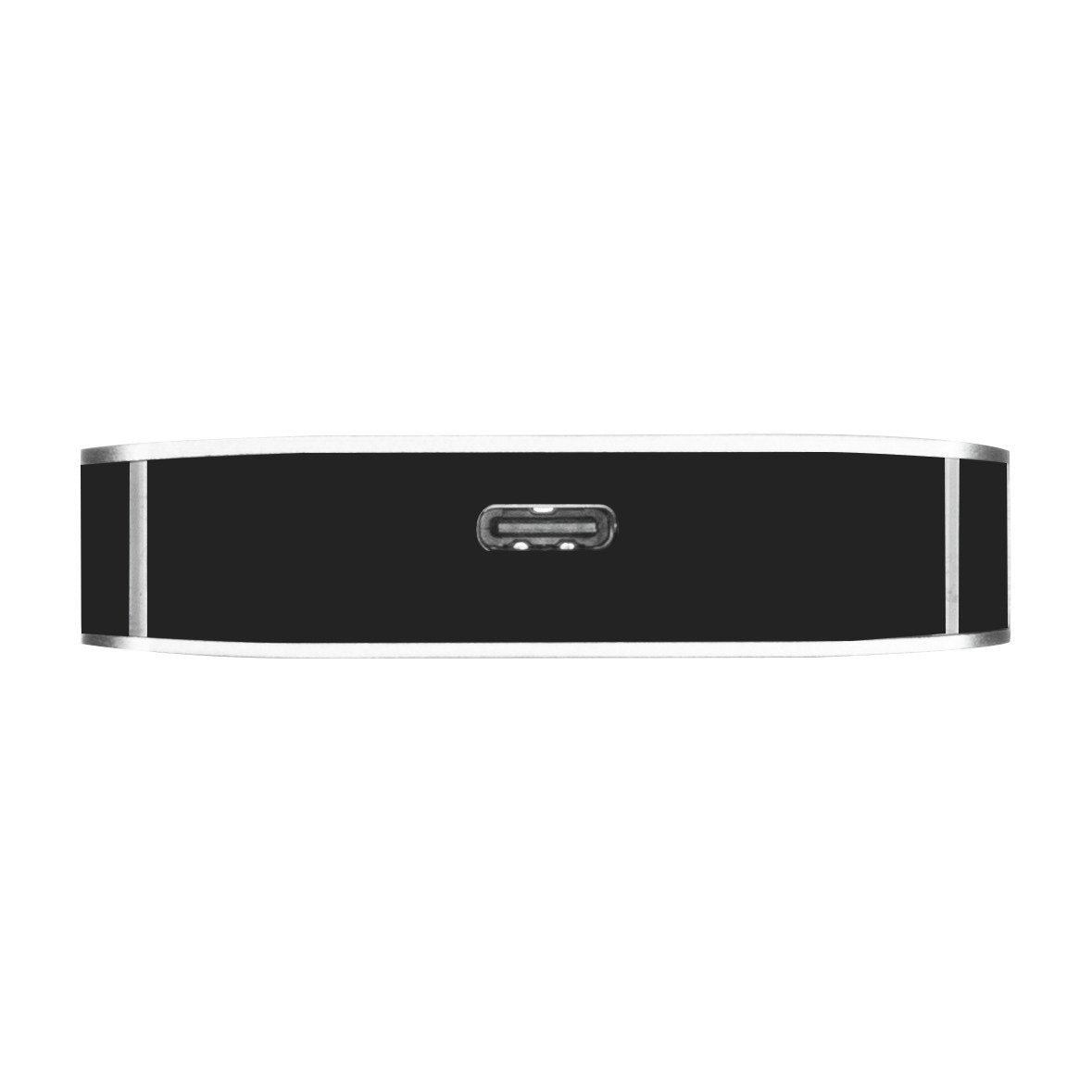

USB Type-C
Power consumption (max)
The maximum amount of power used by the device.
100 W
Power cable length
0.18 m
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Yes
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Yes
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Mobile operating systems supported
The operating systems e.g. Android, iOS, that can be used with the mobile device.
Samsung Proprietary
Other operating systems supported
ChromeOS
Weight & dimensions
Width
The measurement or extent of something from side to side.
114.3 mm
Depth
The distance from the front to the back of something.
12.7 mm
Height
The measurement of the product from head to foot or from base to top.
57.1 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
90.72 g
